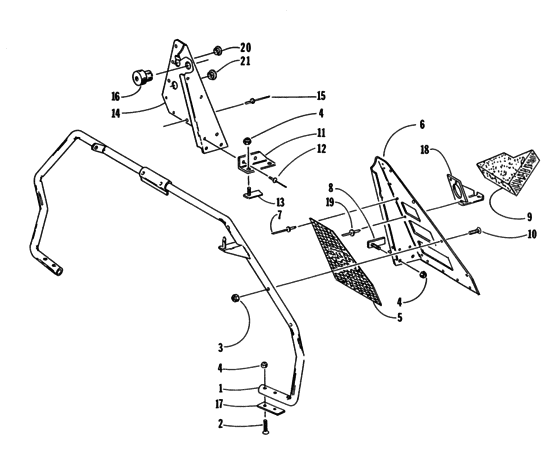

Steering Support Assembly Diagram Arctic Cat ZRT-series ZRT600
- Model code
- 96ZRF-1996
- Engine Capacity
- 594
- Year
- 1996
- Commercial Name
- ZRT600
- Sales region
- General
- Power
- 120 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- ZRT600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0705-143 SupportSteering |
0705-143 |
US $118.14 |
||
|
2
|
2
8002-045
Screw
|
8002-045 |
— | ||
|
3
|
3
8040-246 NutLock |
8040-246 |
US $2.70 |
||
|
4
|
4
8040-366 NutLock |
8040-366 |
US $5 |
||
|
5
|
5
0616-283 Screen |
0616-283 |
US $18.90 |
||
|
6
|
6
0616-641 PlateLeft; backing vent |
0616-641 |
US $78.73 |
||
|
7
|
7
8061-426 Rivet |
8061-426 |
US $4.20 |
||
|
8
|
8
0705-042 PlateBacking |
0705-042 |
US $12.12 |
||
| replacement | |||||
|
8
|
8
1705-113 PlateBacking side-ptd blk |
1705-113 |
US $12.12 |
||
|
9
|
9
0617-198 FoamPlate backing |
0617-198 |
US $15.54 |
||
|
10
|
10
0623-227 ScrewMachine |
0623-227 |
US $3.72 |
||
|
11
|
11
0605-120 BraceR.h.; steering support |
0605-120 |
US $16.16 |
||
|
11
|
11
0605-121 BraceL.h.; steering support |
0605-121 |
US $14.26 |
||
|
12
|
12
0623-166 Rivet |
0623-166 |
US $9.30 |
||
|
13
|
13
0705-043 PlateBacking |
0705-043 |
US $7.14 |
||
| replacement | |||||
|
13
|
13
1705-114 PlateBacking |
1705-114 |
US $7.14 |
||
|
14
|
14
0616-822 PlateRight; backing vent |
0616-822 |
US $57.49 |
||
|
15
|
15
8060-484 Rivet |
8060-484 |
US $0.63 |
||
|
16
|
16
0116-469 BushingRecoil |
0116-469 |
US $4.90 |
||
|
17
|
17
0616-313 PlateBacking |
0616-313 |
US $2.71 |
||
|
18
|
18
0716-190
Bracket
|
0716-190 |
— | ||
|
18
|
18
0716-191
Bracket
|
0716-191 |
— | ||
|
19
|
19
0623-282 Rivet |
0623-282 |
US $8.40 |
||
|
20
|
20
0616-044 Plug |
0616-044 |
US $1.85 |
||
|
21
|
21
0616-892 Plug |
0616-892 |
US $2.01 |
||
