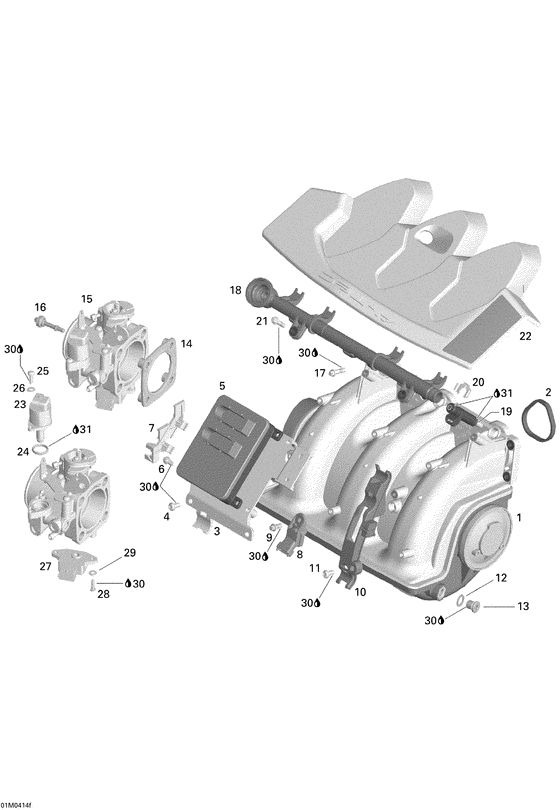

01- intake manifold Diagram Bombardier Elite
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
420867950
Induction manifold-bv
|
420867950 |
— | ||
| replacement | |||||
|
1
|
1
420867951 Collecteur adm.*induction manifold-by |
420867951 |
US $689.55 |
||
|
2
|
2
420950740 Joint etanche *gasket |
420950740 |
US $5.71 |
||
|
3
|
3
420851521 Plaque de base *base plate |
420851521 |
US $63.21 |
||
|
4
|
4
420641048 Vis hexalob.epa*torx flange screw |
420641048 |
US $19.15 |
||
|
5
|
5
420664921
Cont.electro. *electronic box
|
420664921 |
— | ||
|
6
|
6
420641583 Vis hexalob.epa*torx flange screw |
420641583 |
US $7 |
||
|
7
|
7
420660402 Supp.connection*connector bracket |
420660402 |
US $7 |
||
|
8
|
8
420274055
Capteur pressio*temperature sensor
|
420274055 |
— | ||
|
9
|
9
420641048 Vis hexalob.epa*torx flange screw |
420641048 |
US $19.15 |
||
|
10
|
10
420660410 Support cablage*wiring support |
420660410 |
US $10.69 |
||
|
11
|
11
420641583 Vis hexalob.epa*torx flange screw |
420641583 |
US $7 |
||
|
12
|
12
420250640 Rondelle cuivre*copper washer |
420250640 |
US $1.39 |
||
|
13
|
13
420241700
Screw-plug m12 x 1.5
|
420241700 |
— | ||
| replacement | |||||
|
13
|
13
420241701 PLUG SCREW M12 X 1.5 |
420241701 |
US $12.55 |
||
|
14
|
14
420950792 Joint etanche *rubber gasket |
420950792 |
US $11.90 |
||
|
15
|
15
420888906 Carter accele. *throttle body socket |
420888906 |
US $831.27 |
||
|
16
|
16
420440560 Vis hexalobulai*screw-torx |
420440560 |
US $5.75 |
||
|
17
|
17
420641238 Vis hexalob.epa*screw-torx flange |
420641238 |
US $21.10 |
||
|
18
|
18
420874391
Tubulure inject*fuel rail assy.
|
420874391 |
— | ||
|
19
|
19
420874525
Injecteur *injector
|
420874525 |
— | ||
|
20
|
20
420851531 Pince injecteur*injector clip |
420851531 |
US $7 |
||
|
21
|
21
420641238 Vis hexalob.epa*screw-torx flange |
420641238 |
US $21.10 |
||
|
22
|
22
420660175
Couvercle *cover
|
420660175 |
— | ||
| replacement | |||||
|
22
|
22
270000677 Couvercle ass`e*cover ass`y |
270000677 |
US $47.91 |
||
|
23
|
23
420963050
Idle bypass valve
|
420963050 |
— | ||
|
24
|
24
420631780 Joint torique *o ring |
420631780 |
US $5.71 |
||
|
30
|
30
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
31
|
31
293600054
Huile 4t 12x1 * oil 4t 12x1 synth 0w40
|
293600054 |
— | ||
