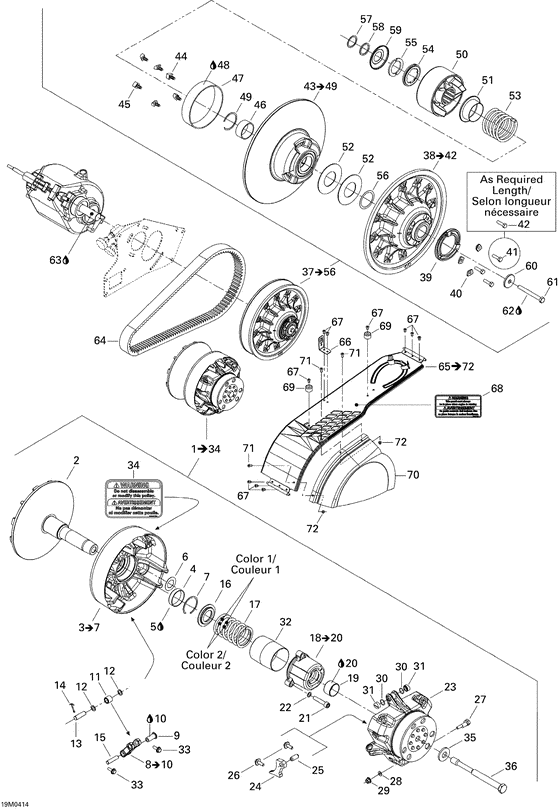

05- pulley system Diagram Bombardier Elite
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
417222593
Flasque fixe as*flange-fixe ass
|
417222593 |
— | ||
|
3
|
3
417222646
Flasque ass. *flange ass y
Includes 3 to 7; |
417222646 |
— | ||
| replacement | |||||
|
3
|
3
417223053
Flasque coul.as*flange-slid.assy
Includes 3 to 7; |
417223053 |
— | ||
|
4
|
4
417006900
Douille *bushing
|
417006900 |
— | ||
| replacement | |||||
|
4
|
4
417222758 Douille *bushing |
417222758 |
US $24.82 |
||
|
5
|
5
413703100 Loctite 609 *loctite-609 |
413703100 |
from US $31.18 |
||
|
7
|
7
293370037 Anneau retenue *circlip |
293370037 |
US $3.64 |
||
|
8
|
8
417222647
Levier ass. *lever-assy
Includes 8 to 10; |
417222647 |
— | ||
| replacements | |||||
|
8
|
8
417222812 Levier ass. *lever-assyIncludes 8 to 10; |
417222812 |
US $133.57 |
||
|
8
|
8
417222813 Goupille *threaded pinIncludes 8 to 10; |
417222813 |
US $48.87 |
||
|
9
|
9
417222633
Douille
|
417222633 |
— | ||
|
10
|
10
413703100 Loctite 609 *loctite-609 |
413703100 |
from US $31.18 |
||
|
11
|
11
417003900
Rouleau ass. *roller-ass.
|
417003900 |
— | ||
| replacement | |||||
|
11
|
11
417222947 Rouleau ass. *roller-ass. |
417222947 |
US $23.43 |
||
|
12
|
12
417004302 Rondelle butee *washer-stopper |
417004302 |
US $20.49 |
||
|
13
|
13
417004308 Goupille *pin |
417004308 |
US $45.81 |
||
|
14
|
14
732958001 Goupille fendue*pin-cotter |
732958001 |
US $2.14 |
||
|
15
|
15
417009202
Axe de levier *axle-lever
|
417009202 |
— | ||
| replacement | |||||
|
15
|
15
417223164 LEVER AXLE |
417223164 |
US $5.30 |
||
|
16
|
16
417222312 Siege ressort *seat-spring |
417222312 |
US $9.50 |
||
|
17
|
17
414748600 Ressort embra. *spring-clutch |
414748600 |
US $49.93 |
||
|
18
|
18
417222649
Couv.ressort as*cover-spring assy.
Includes 18 to 20; |
417222649 |
— | ||
| replacement | |||||
|
18
|
18
417222759 Couv.ressort as*cover-spring assy.Includes 18 to 20; |
417222759 |
US $45.10 |
||
|
19
|
19
417009204 Douille *bushing |
417009204 |
US $19.52 |
||
|
20
|
20
413703100 Loctite 609 *loctite-609 |
413703100 |
from US $31.18 |
||
|
21
|
21
205084044 Screw-socket hd.din.912 |
205084044 |
US $18.45 |
||
|
22
|
22
250200009 Ribbed lock washer 8mm bn791 |
250200009 |
US $27.20 |
||
|
23
|
23
417222640
Cuvette regul.a*govern.cup assy.
|
417222640 |
— | ||
| replacement | |||||
|
23
|
23
417222770
Cuvette regul.a*govern.cup assy.
|
417222770 |
— | ||
|
24
|
24
417222696
Rampe 609 *ramp 609
|
417222696 |
— | ||
|
25
|
25
250400009
Goupille ress. *pin-rolled
|
250400009 |
— | ||
| replacement | |||||
|
25
|
25
250400050 SPRING PIN M10 |
250400050 |
US $11.88 |
||
|
26
|
26
250000059 Screw-hex.flange m6 x 18 |
250000059 |
US $3.89 |
||
|
27
|
27
417222674
Vis calibration*screw-calib.
|
417222674 |
— | ||
| replacement | |||||
|
27
|
27
417222955 Vis calibration*screw-calib. |
417222955 |
US $35.07 |
||
|
28
|
28
417005600 Rondelle *washer |
417005600 |
US $32.76 |
||
|
29
|
29
233061414 Nut-flange hexagonal din.6927 |
233061414 |
US $21.40 |
||
|
30
|
30
732401030
Joint torique *o-ring
|
732401030 |
— | ||
|
31
|
31
417222362
Glissiere *shoe-slider
|
417222362 |
— | ||
| replacement | |||||
|
31
|
31
417223021 Glissiere *shoe-slider |
417223021 |
US $7.96 |
||
|
32
|
32
417009205 Protecteur *guard |
417009205 |
US $19.31 |
||
|
33
|
33
250000182 Serrated hexagonal flange bolt m6x16 |
250000182 |
US $19.50 |
||
|
34
|
34
516001726 Etiquette secur*label security |
516001726 |
US $0.02 |
||
|
35
|
35
250200006 Washer-spring conical |
250200006 |
US $89.40 |
||
|
36
|
36
417300258
Boulon de pouli*bolt pulley dr
|
417300258 |
— | ||
|
38
|
38
417126603
Flasque fixe as*flange-fix.assy
Includes 38 to 42; |
417126603 |
— | ||
| replacement | |||||
|
38
|
38
417126807 Flasque fixe as*flange-fix.assyIncludes 38 to 42; |
417126807 |
US $320.25 |
||
|
39
|
39
415005800
Bague ajustem. *ring-adjust.
|
415005800 |
— | ||
|
40
|
40
415005900 Cale de reglage*shim-adjust. |
415005900 |
US $4.05 |
||
|
41
|
41
207162544 Screw-hex.cap din.933 |
207162544 |
US $14.60 |
||
|
42
|
42
207162244 Screw-hex.cap din.933 |
207162244 |
US $3.83 |
||
|
43
|
43
417126605
Flasque coul.as*flange-slid.as
Includes 43 to 49; |
417126605 |
— | ||
| replacement | |||||
|
43
|
43
417126909 Flasque coul.as*flange-slid.asIncludes 43 to 49; |
417126909 |
US $350.85 |
||
|
44
|
44
417126373
Gliss.came arr.*shoe-cam slide rear
|
417126373 |
— | ||
|
45
|
45
417126374 Gliss. came av.*shoe-cam slide front |
417126374 |
US $4.08 |
||
|
47
|
47
414978100
Coussinet *bushing
|
414978100 |
— | ||
| replacement | |||||
|
47
|
47
417126902 Coussinet *coussinet |
417126902 |
US $45.56 |
||
|
48
|
48
413703100 Loctite 609 *loctite-609 |
413703100 |
from US $31.18 |
||
|
49
|
49
371911200 Anneau retenue *circlip |
371911200 |
US $21.25 |
||
|
50
|
50
417126843
Came ass. *cam-ass.
|
417126843 |
— | ||
|
51
|
51
415006000 Protecteur *guard |
415006000 |
US $8.13 |
||
|
52
|
52
504099600 Rondelle butee *washer-stopper |
504099600 |
US $6.07 |
||
|
53
|
53
417126877
Ressort rappel *spring-release
|
417126877 |
— | ||
|
54
|
54
417126733 Entretoise *spacer |
417126733 |
US $13.21 |
||
|
55
|
55
417126734 Demi-cle *half-key |
417126734 |
US $8.13 |
||
|
56
|
56
504112300 Cale epaisseur *shim |
504112300 |
US $70.90 |
||
|
57
|
57
417300054
Entretoise *spacer
|
417300054 |
— | ||
|
58
|
58
417300231
Entretoise *spacer
|
417300231 |
— | ||
| replacement | |||||
|
58
|
58
417300252 Entretoise *spacer |
417300252 |
US $5.07 |
||
|
59
|
59
417300238 Protecteur *protector |
417300238 |
US $8.13 |
||
|
60
|
60
517302322 Rondelle force *washer-strength |
517302322 |
US $11.17 |
||
|
61
|
61
207087544 Screw-hex.cap din.931 |
207087544 |
US $15.80 |
||
|
62
|
62
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
63
|
63
293800070 Loct.anti grip.*loct-antiseize |
293800070 |
US $40.78 |
||
|
64
|
64
417300207 Courroie *belt-drive |
417300207 |
US $134.61 |
||
|
65
|
65
417300206
Garde courr. as*guard-belt assy
Includes 65 to 72; |
417300206 |
— | ||
| replacement | |||||
|
65
|
65
417300293
Garde courr. as*guard-belt assy
Includes 65 to 72; |
417300293 |
— | ||
|
66
|
66
293850075 Pince courroie*clip-strap 90 |
293850075 |
US $11.17 |
||
|
67
|
67
390402200
Rivet-pop 3/16 *rivet-pop 3/16
|
390402200 |
— | ||
| replacement | |||||
|
67
|
67
293150293 Rivet-pop 3/16 *rivet-pop 3/16 |
293150293 |
US $24 |
||
|
68
|
68
516001190
Etiquette secur*security-label
|
516001190 |
— | ||
| replacement | |||||
|
68
|
68
516002670 Etiquette secur*security-label |
516002670 |
US $0.02 |
||
|
69
|
69
293830043 Butee caout. *stopper-rubber |
293830043 |
US $7.23 |
||
|
71
|
71
390402300 Rivet-pop 3/16 *rivet-pop 3/16 |
390402300 |
US $50 |
||
|
72
|
72
234051410 Washer-flat din.125a |
234051410 |
US $6.80 |
||
