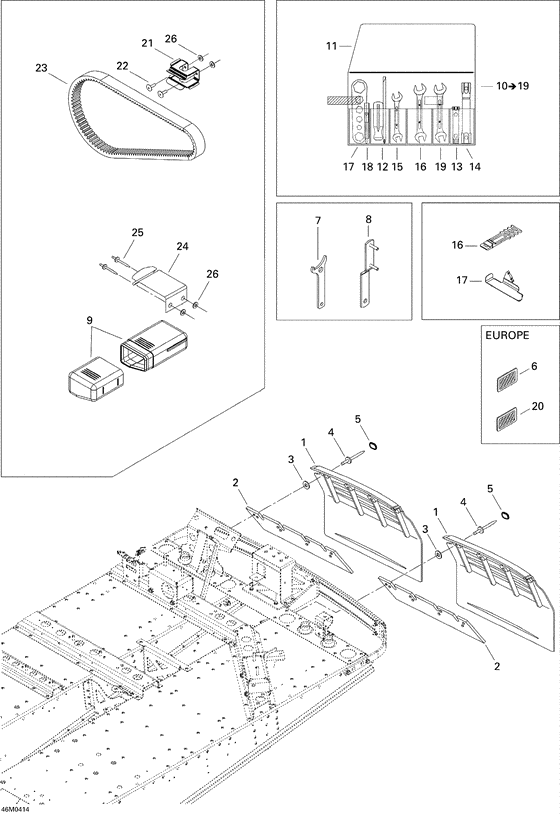

09- utilities Diagram Bombardier Elite
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
520000467
Garde-neige *guard-snow
|
520000467 |
— | ||
|
2
|
2
572108200 Renfort *reinforcement |
572108200 |
US $14.67 |
||
|
3
|
3
517225900 Washer - flat |
517225900 |
US $2.40 |
||
|
4
|
4
293150087 Rivet-pop 3/16 *rivet-pop 3/16 |
293150087 |
US $31 |
||
|
5
|
5
415073300 Capuchon *cap |
415073300 |
US $29.15 |
||
|
6
|
6
520000271 Reflecteur amb.*reflector-amberEurope; |
520000271 |
US $16.76 |
||
|
7
|
7
529032900
Cle de reglage *wrench-adj.
|
529032900 |
— | ||
|
8
|
8
520000126 Cle de regl.sou*wrench-adjust.weld. |
520000126 |
US $11.17 |
||
|
9
|
9
572036310
Coffre outils *box-tool assy.
|
572036310 |
— | ||
|
10
|
10
529000001 Trousse outils *tool kitIncludes 10 to 19; |
529000001 |
US $49.93 |
||
|
11
|
11
520000047
Sac a outils *bag-tool
|
520000047 |
— | ||
| replacement | |||||
|
11
|
11
520000552
Sac a outils *bag-tool
|
520000552 |
— | ||
|
12
|
12
529019200
Tournevis *screw-driver
|
529019200 |
— | ||
| replacement | |||||
|
12
|
12
529000004 Tournevis *screw-driver |
529000004 |
US $12.19 |
||
|
13
|
13
529014900 Cle a douille *wrench-socket |
529014900 |
US $9.13 |
||
|
14
|
14
529035731
New Genuine Part
|
529035731 |
— | ||
|
15
|
15
529017300
Cle ouverte 10 *wrench-fork 10
|
529017300 |
— | ||
|
17
|
17
529014700 Cle multiple *multi-wrench |
529014700 |
US $13.21 |
||
|
18
|
18
529035501 Outil ecarte. *tool-spacing |
529035501 |
US $18.33 |
||
|
19
|
19
529019300
Cle ouverte *wrench-fork 15/17mm
|
529019300 |
— | ||
| replacement | |||||
|
19
|
19
529000003 Cle ouverte *wrench-fork 15/17mm |
529000003 |
US $12.19 |
||
|
20
|
20
415037900 Reflecteur *reflectorEurope; |
415037900 |
US $18.85 |
||
|
21
|
21
517281905 Attache *bracket |
517281905 |
US $15.27 |
||
|
22
|
22
293150104
Pop rivet 3/16
|
293150104 |
— | ||
| replacement | |||||
|
22
|
22
293150292 Rivet_Ornit 4.8 X 14 Black |
293150292 |
US $37.75 |
||
|
23
|
23
417300207 Courroie *belt-drive |
417300207 |
US $134.61 |
||
|
24
|
24
M5344443 Ressort *spring-holder |
M5344443 |
US $25.67 |
||
|
25
|
25
293150102 Rivet-pop 3/16 *pop rivet 3/16 |
293150102 |
US $9.40 |
||
|
26
|
26
234051410 Washer-flat din.125a |
234051410 |
US $6.80 |
||
