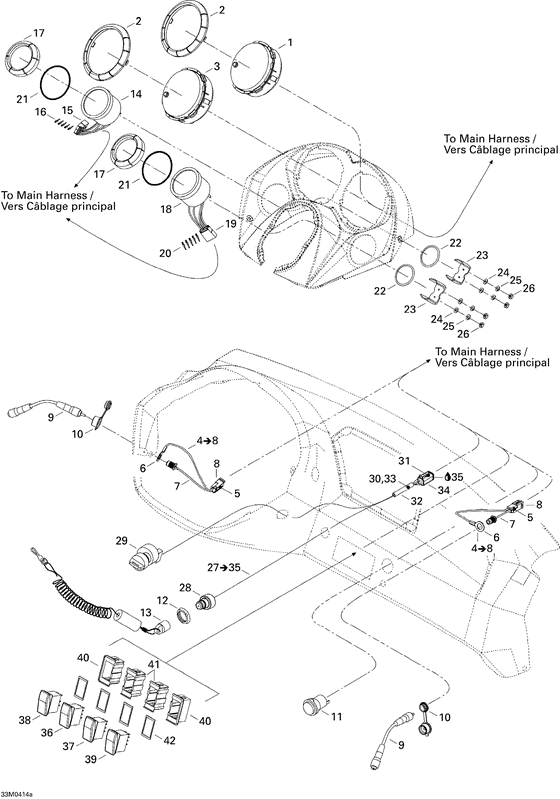

10- electrical system 1 Diagram Bombardier Elite
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
515176012
Ind.vitesse *speedometer
|
515176012 |
— | ||
| replacement | |||||
|
1
|
1
515176244 Ind.vitesse *speedometer |
515176244 |
US $432.45 |
||
|
2
|
2
515175651
Anneau cadran *ring-gauge
|
515175651 |
— | ||
| replacement | |||||
|
2
|
2
515176242 Ring - gauge |
515176242 |
US $14.55 |
||
|
3
|
3
515176072
Compte-tours *tachometer
|
515176072 |
— | ||
|
4
|
4
515175964
Cablage prise v*harness visor
Includes items 4 to 8; |
515175964 |
— | ||
|
5
|
5
515175232 Cosse male *terminal-male |
515175232 |
US $20.10 |
||
|
6
|
6
515175172 Cosse a anneau *barrel-open |
515175172 |
US $17.82 |
||
|
7
|
7
293740005
Ruban de vinyl 3/4
|
293740005 |
— | ||
|
8
|
8
515175654 Logement male *housing-male |
515175654 |
US $9.76 |
||
|
9
|
9
515175971 Rall.prise vis.*ext.-visor outl. |
515175971 |
US $20.37 |
||
|
10
|
10
572103300 Capuchon *cap |
572103300 |
US $10.90 |
||
|
11
|
11
861507200 Ens.prise 12vo.*kit-power outlet |
861507200 |
US $40.92 |
||
|
12
|
12
278000508
Ecrou securite *nut-saf.switch
|
278000508 |
— | ||
|
13
|
13
515166900
Capuchon dess *cap-dess.
|
515166900 |
— | ||
| replacement | |||||
|
13
|
13
515176461
Capuchon dess *cap-dess.
|
515176461 |
— | ||
|
14
|
14
515175601
Indicateur temp*gauge-temp.
|
515175601 |
— | ||
|
15
|
15
515175662 Log.pt male .*housing-term.male |
515175662 |
US $9.67 |
||
|
16
|
16
515175232 Cosse male *terminal-male |
515175232 |
US $20.10 |
||
|
17
|
17
515175711 Anneau cadran *ring-gauge |
515175711 |
US $27.29 |
||
|
18
|
18
515175529 Indicateur ess.*gauge-fuel |
515175529 |
US $264.15 |
||
|
19
|
19
515175662 Log.pt male .*housing-term.male |
515175662 |
US $9.67 |
||
|
20
|
20
515175232 Cosse male *terminal-male |
515175232 |
US $20.10 |
||
|
21
|
21
414807200 Joint torique *packing |
414807200 |
US $20.75 |
||
|
22
|
22
517258600 Rondelle formee*washer |
517258600 |
US $7.31 |
||
|
23
|
23
414806600
Support boitier*holder-case
|
414806600 |
— | ||
|
24
|
24
391301700
Rondelle *washer
|
391301700 |
— | ||
|
25
|
25
414833700 Washer-lock gauge |
414833700 |
US $1.96 |
||
|
26
|
26
414833600 Ecrou gauge *nut-gauge |
414833600 |
US $9.80 |
||
|
27
|
27
515176089
Bouton demar. *starter switch
Includes items 27 to 35; |
515176089 |
— | ||
|
28
|
28
515176126
Interrupt.dess *switch-dess
|
515176126 |
— | ||
|
29
|
29
515176127
Interrupt allum*ignition switc
|
515176127 |
— | ||
| replacement | |||||
|
29
|
29
515176089
Bouton demar. *starter switch
|
515176089 |
— | ||
|
30
|
30
278000230 Cosse male *terminal-male |
278000230 |
US $58.70 |
||
|
31
|
31
293000052 Bouchon etanche*cap-sealing |
293000052 |
US $21.15 |
||
|
32
|
32
515175314
Gaine basse te*gaine low temp.vinyl
|
515175314 |
— | ||
|
33
|
33
278001008 Etui thermique *sheath-insulat |
278001008 |
US $21.15 |
||
|
34
|
34
515175673 Bloc 6 circ.mal*housing-tab |
515175673 |
US $15.74 |
||
|
35
|
35
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
36
|
36
515175945
Interrupteur *switch ass y
|
515175945 |
— | ||
|
37
|
37
515175946
Interrupteur *switch ass y
|
515175946 |
— | ||
|
38
|
38
515175951
Interrupteur *switch ass y
|
515175951 |
— | ||
|
39
|
39
515175862
Interrupteur *switch ass y
|
515175862 |
— | ||
|
40
|
40
515176098
Logement *switch housing
|
515176098 |
— | ||
|
41
|
41
515176099
Logement *switch housing
|
515176099 |
— | ||
|
42
|
42
204470132
Joint etanche *gasket
|
204470132 |
— | ||
