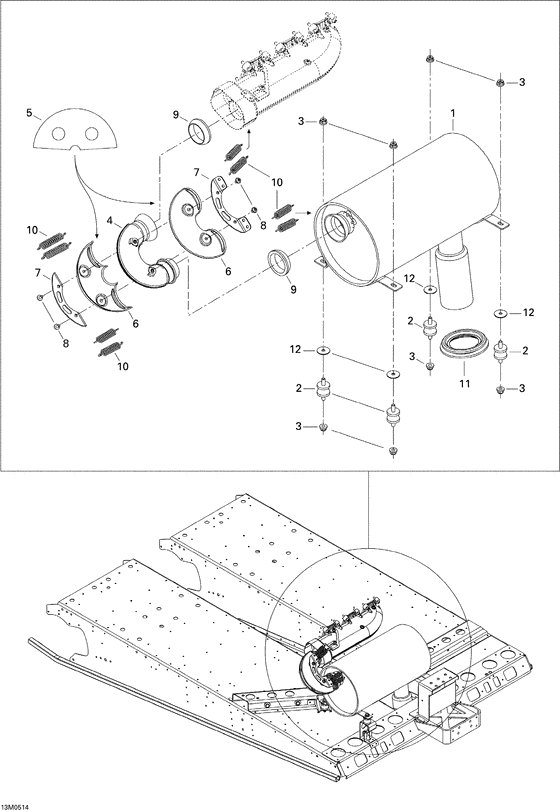

01- exhaust system Diagram Bombardier Elite
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
514053481
Silencieux ass.*muffler-assy
|
514053481 |
— | ||
|
2
|
2
514052994
Tampon ancrage *mount-rubber
|
514052994 |
— | ||
| replacement | |||||
|
2
|
2
514052889 Tampon ancrage *mount-rubber |
514052889 |
US $81.53 |
||
|
3
|
3
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
4
|
4
514053711
Coude soude *elbow weld.
|
514053711 |
— | ||
|
5
|
5
514053625
Laine isolante *wooll insulating
|
514053625 |
— | ||
|
6
|
6
514053530
Deflect.chaleur*heat shield
|
514053530 |
— | ||
|
7
|
7
514053714
Attache ressort*bracket
|
514053714 |
— | ||
|
8
|
8
514053811
Vis m6 x 10 *screw m6x10
|
514053811 |
— | ||
|
9
|
9
514053712
Joint echapp. *gasket-exhaust
|
514053712 |
— | ||
|
10
|
10
514053793
Ressort *spring
|
514053793 |
— | ||
|
11
|
11
514053394
Rondelle echapp*grommet-exhaust
|
514053394 |
— | ||
| replacement | |||||
|
11
|
11
514054240 Rondelle echapp*grommet-exhaust |
514054240 |
US $25.45 |
||
|
12
|
12
514052891
Rondelle isolan*washer-insulated
|
514052891 |
— | ||
