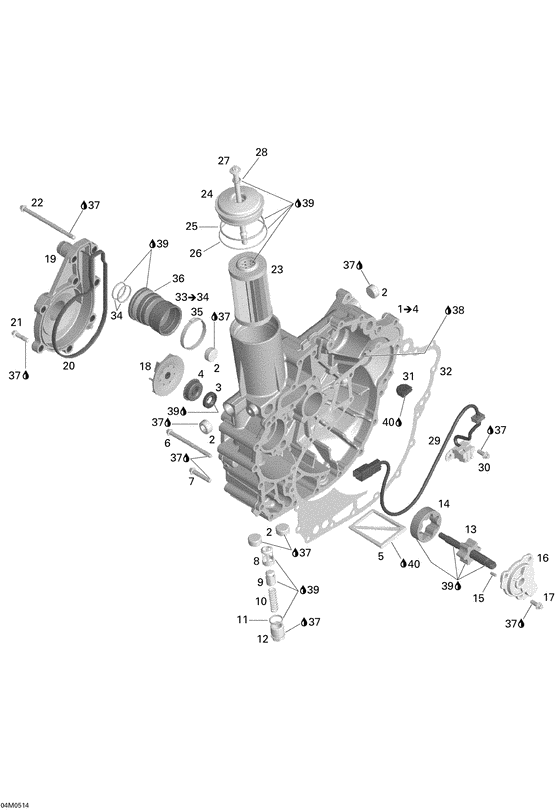

03- pto cover and magneto Diagram Bombardier Elite
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
420812464
Carter ignition*timing drive cover assy.
Includes 1 to 4; |
420812464 |
— | ||
|
2
|
2
420641313
Vis obturation *plug screw m30
|
420641313 |
— | ||
| replacement | |||||
|
2
|
2
420641317 Vis obturation *plug screw |
420641317 |
US $14.14 |
||
|
3
|
3
420650310
Anneau etanche *oil seal
|
420650310 |
— | ||
| replacement | |||||
|
3
|
3
420650315 Anneau etanche *seal-oil |
420650315 |
US $14.16 |
||
|
4
|
4
420650370 Joint tournant *rotary seal |
420650370 |
US $46.37 |
||
| replacement | |||||
|
4
|
4
420650371 ROTARY SEAL |
420650371 |
US $52.63 |
||
|
5
|
5
420956950 Tamis d huile *oil sieve |
420956950 |
US $18.72 |
||
|
6
|
6
420641228 Vis hexalob.epa*torx flange screw |
420641228 |
US $9.45 |
||
|
7
|
7
420641258 Screw torx flange m6 x 35 |
420641258 |
US $21.85 |
||
|
8
|
8
420256605
Manchon siege s*valve seat sleeve
|
420256605 |
— | ||
|
9
|
9
420256630 Soupape piston *valve-piston |
420256630 |
US $17.20 |
||
| replacement | |||||
|
9
|
9
420256633 Piston Valve |
420256633 |
US $17.75 |
||
|
10
|
10
420939210 Ressort compres*compression spring |
420939210 |
US $7.09 |
||
|
11
|
11
420230890 Joint torique *o ring |
420230890 |
US $6.95 |
||
|
12
|
12
420641051
Vis obturation *plug screw m20
|
420641051 |
— | ||
|
13
|
13
420837472 Pump shaft assy |
420837472 |
US $62.39 |
||
|
14
|
14
420956675 Rotor pompe hui*outer rotor 16mm |
420956675 |
US $38.98 |
||
|
15
|
15
420929070 Goupille aiguil*needle pin |
420929070 |
US $2.45 |
||
|
16
|
16
420811590 Couv.pompe huil*oil pump cover |
420811590 |
US $41.02 |
||
| replacement | |||||
|
16
|
16
420811591 Oil Pump Cover |
420811591 |
US $39.95 |
||
|
17
|
17
420641048 Vis hexalob.epa*torx flange screw |
420641048 |
US $19.15 |
||
|
18
|
18
420922801 Helice *impeller |
420922801 |
US $21.42 |
||
|
19
|
19
512059678
Couvercle pompe*pump cover
|
512059678 |
— | ||
|
20
|
20
420950840 Joint etanche *gasket |
420950840 |
US $16.76 |
||
|
21
|
21
420641238 Vis hexalob.epa*screw-torx flange |
420641238 |
US $21.10 |
||
|
22
|
22
420641338 Vis hexalob.epa*torx flange screw |
420641338 |
US $9.45 |
||
|
23
|
23
420956741 Filtre huile *filter oil |
420956741 |
US $15.20 |
||
|
24
|
24
420610326 Couvercle fil. *oil filter cover |
420610326 |
US $47.91 |
||
|
25
|
25
420230920 Joint torique *o-ring |
420230920 |
US $4.08 |
||
| replacement | |||||
|
25
|
25
420230923 O-RING |
420230923 |
US $4.39 |
||
|
26
|
26
420850500 Joint torique *o ring |
420850500 |
US $4.10 |
||
| replacement | |||||
|
26
|
26
420850502 O-RING |
420850502 |
US $4.11 |
||
|
27
|
27
420641105 Vis hex.m8 *screw-hex.m8 |
420641105 |
US $35.65 |
||
|
28
|
28
420950860 Joint torique *o-ring |
420950860 |
US $25.15 |
||
|
29
|
29
420664140 Crankshaft sensor |
420664140 |
US $111.13 |
||
|
30
|
30
420641048 Vis hexalob.epa*torx flange screw |
420641048 |
US $19.15 |
||
|
31
|
31
420660930
Bouchon *plug rubber
|
420660930 |
— | ||
|
32
|
32
420931130 Gasket |
420931130 |
US $28.25 |
||
|
33
|
33
420832750
Soufflet roule.*ball bearing w.bellow
Includes 33 to 34; |
420832750 |
— | ||
|
34
|
34
420631610 Joint torique *o ring |
420631610 |
US $5.58 |
||
| replacement | |||||
|
34
|
34
420631612 Joint torique *o ring |
420631612 |
US $5.58 |
||
|
35
|
35
420851653 Bride serrage *gear clamp |
420851653 |
US $9.45 |
||
|
36
|
36
420853023 Bride serrage *gear clamp |
420853023 |
US $9.45 |
||
|
37
|
37
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
38
|
38
293550030 Graisse *grease |
293550030 |
US $36.06 |
||
|
39
|
39
293600054
Huile 4t 12x1 * oil 4t 12x1 synth 0w40
|
293600054 |
— | ||
|
40
|
40
293800081 Loctite 5910 *loctite-5910 |
293800081 |
US $90.68 |
||
