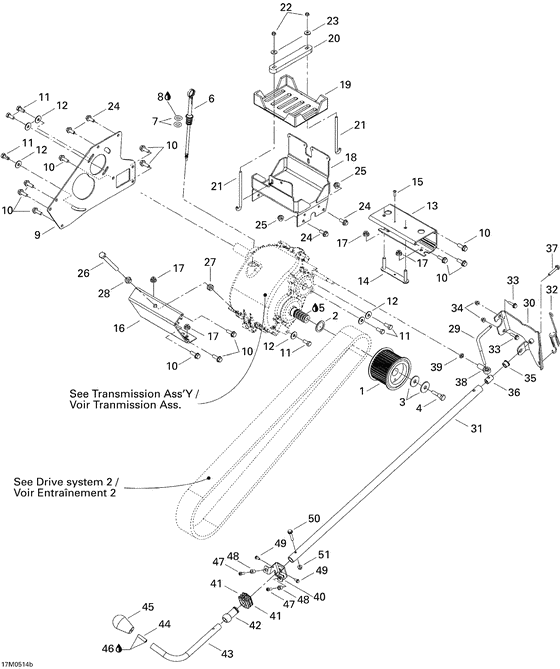

05- drive system 2 Diagram Bombardier Elite
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
504152285
Engrenage canne*
|
504152285 |
— | ||
|
2
|
2
512059991
Rondelle *washer
|
512059991 |
— | ||
|
3
|
3
506150000 Rondelle *washer m10 |
506150000 |
US $3.54 |
||
|
4
|
4
245004060 Screw-hex.cap-din.931a2 s.grip |
245004060 |
US $28 |
||
|
5
|
5
293800070 Loct.anti grip.*loct-antiseize |
293800070 |
US $40.78 |
||
|
6
|
6
504151750 Bouchon remp.as*cap-filler assy. |
504151750 |
US $13.12 |
||
|
7
|
7
414969400 Joint torique *o-ring |
414969400 |
US $81.30 |
||
|
8
|
8
413803300
Huile chaine *oil-chain
|
413803300 |
— | ||
|
9
|
9
504152166
Support transm.*support transm.
|
504152166 |
— | ||
|
10
|
10
210282540
Screw-forming hex.hd.fl. din.7500d
|
210282540 |
— | ||
|
11
|
11
250000118 Screw-hex.cap with nylon patch |
250000118 |
US $14.50 |
||
|
12
|
12
503183200 Washer-yellow |
503183200 |
US $42.30 |
||
|
13
|
13
504152227
Extrusion arrie*
|
504152227 |
— | ||
|
14
|
14
518323288
Plaque fixation*fixation plate weld
|
518323288 |
— | ||
|
15
|
15
390402200 Rivet-pop 3/16 *rivet-pop 3/16 |
390402200 |
US $22 |
||
|
16
|
16
504152228
Extrusion avant*
|
504152228 |
— | ||
|
17
|
17
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
18
|
18
504152229
Supp batterie *
|
504152229 |
— | ||
|
19
|
19
278001582 Tampon inf.batt*pad-batt.lower |
278001582 |
US $19.92 |
||
|
20
|
20
504152350
Attache batteri*
|
504152350 |
— | ||
|
21
|
21
504152351
Tige d ancrage *
|
504152351 |
— | ||
|
22
|
22
232561414 Nut-stop elastic din.985 |
232561414 |
US $7.10 |
||
|
23
|
23
234062410 Washer-flat din.9021b |
234062410 |
US $10 |
||
|
24
|
24
207682044 Screw-hex.flange din.6921 |
207682044 |
US $14.80 |
||
|
25
|
25
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
26
|
26
230102044
Screw-hex.cap iso.4017
|
230102044 |
— | ||
|
27
|
27
232006414 Nut-hexagonal din.934 |
232006414 |
US $17.50 |
||
|
28
|
28
232100600 Nut-jam hexagonal din.439b-a2 |
232100600 |
US $14.35 |
||
|
29
|
29
504152230
Pivot *
|
504152230 |
— | ||
|
30
|
30
504152243
Plaque pivot so*
|
504152243 |
— | ||
|
31
|
31
504152242
Tige d embrayag*
|
504152242 |
— | ||
|
32
|
32
504152281
Ressort de rapp*
|
504152281 |
— | ||
|
33
|
33
207662544 Screw-hex.flange din.6921 |
207662544 |
US $20.50 |
||
|
34
|
34
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
35
|
35
520000234 Coussinet ureth*cushion-ureth. |
520000234 |
US $8.13 |
||
|
36
|
36
504152332
Douille de serr*
|
504152332 |
— | ||
|
37
|
37
207663544 Screw-hex.flange din.6921 |
207663544 |
US $29.25 |
||
|
38
|
38
506151729 Joint rotule ga*joint-ball lh |
506151729 |
US $17.82 |
||
|
39
|
39
232180600 T-jam hexagonal din.439b-a2 |
232180600 |
US $21.75 |
||
|
40
|
40
504152330
Support rotule *
|
504152330 |
— | ||
|
41
|
41
505070817 Pcoulisseau *block-sliding |
505070817 |
US $42.75 |
||
|
42
|
42
505070819 Rotule *joint ball |
505070819 |
US $23.41 |
||
|
43
|
43
504152510
Levier *lever
|
504152510 |
— | ||
|
44
|
44
206583044
Screw-set socket din.916
|
206583044 |
— | ||
|
45
|
45
705500022 Bouton levier *button-lever |
705500022 |
US $15.27 |
||
|
46
|
46
293800005 Loctite 271 *loctite-271 |
293800005 |
US $31.18 |
||
|
47
|
47
250000172 Screw-socket bn.hd.gm6047m nylon patch |
250000172 |
US $19.60 |
||
|
48
|
48
415107300
Ajout *insert
|
415107300 |
— | ||
|
49
|
49
210251180 Screw-forming hex.hd.fl.gm6174m |
210251180 |
US $21.60 |
||
|
50
|
50
207663544 Screw-hex.flange din.6921 |
207663544 |
US $29.25 |
||
|
51
|
51
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
