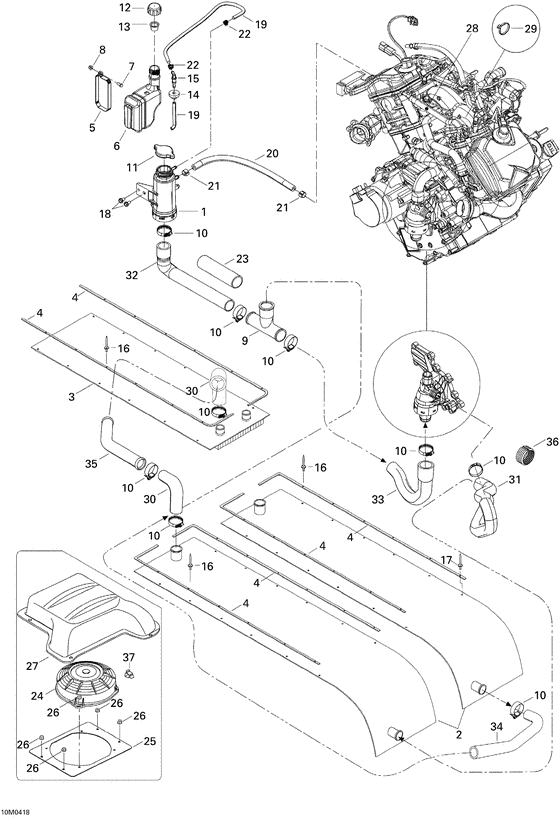

01- cooling system Diagram Bombardier Expedition
- Year
- 2004
- Sales region
- General
- Model
- Expedition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
509000176 Goulot remplis.*filler neck assy |
509000176 |
US $73.41 |
||
|
2
|
2
605150629
Radiateur *radiator weld
|
605150629 |
— | ||
|
3
|
3
605350541
Radiateur *radiator weld
|
605350541 |
— | ||
|
4
|
4
605351215
Plaque *raising plate
|
605351215 |
— | ||
|
5
|
5
509000191 Support reserv.*reserv. support |
509000191 |
US $21.39 |
||
|
6
|
6
709200099 Res.antigel *coolant tank |
709200099 |
US $63.21 |
||
|
7
|
7
M40366
Screw m5x16
|
M40366 |
— | ||
|
8
|
8
M33062 Nut m5 |
M33062 |
US $1.79 |
||
|
9
|
9
509000219 Raccord en t *fitting-t |
509000219 |
US $15.27 |
||
|
10
|
10
408800400 Clamp-gear |
408800400 |
US $121.90 |
||
|
11
|
11
509000180 Bouchon radiat.*pressure cap |
509000180 |
US $22.39 |
||
|
12
|
12
709200009 Bouchon reserv.*cap-tank |
709200009 |
US $12.19 |
||
|
13
|
13
709200034
Bouchon anti *cap-protec.
|
709200034 |
— | ||
| replacement | |||||
|
13
|
13
709200205 Bouchon anti *cap-protec. |
709200205 |
US $4.05 |
||
|
14
|
14
570135100
Passe-fils *grommet
|
570135100 |
— | ||
| replacement | |||||
|
14
|
14
709200285
GROMMET
|
709200285 |
— | ||
|
15
|
15
414580600 Raccord male *connector-male |
414580600 |
US $27.35 |
||
|
16
|
16
M36489
Rivet *rivet
|
M36489 |
— | ||
|
17
|
17
M36087
Rivet *rivet
|
M36087 |
— | ||
|
18
|
18
M40327 Vis m6z12 *screw-m6x12 |
M40327 |
US $19.60 |
||
|
19
|
19
415110000 Boyau polyure *hose-polyurethane |
415110000 |
US $116.70 |
||
|
20
|
20
509000304 Boyau *hose |
509000304 |
US $26.49 |
||
|
21
|
21
293650128
Bride serrage *hose clamp
|
293650128 |
— | ||
| replacement | |||||
|
21
|
21
293650170 Bride serrage *hose clamp |
293650170 |
US $27.20 |
||
|
22
|
22
414554800 Bride a ressort*clamp-spring |
414554800 |
US $11.70 |
||
|
23
|
23
M39062 Gaine *tubing |
M39062 |
US $36.69 |
||
|
24
|
24
M42106
Ventilateur *fan
|
M42106 |
— | ||
|
25
|
25
605350860
Plaque fixation*fix plate
|
605350860 |
— | ||
|
26
|
26
M33200 Flange nut m6 |
M33200 |
US $1.96 |
||
|
27
|
27
605150618
Boitier venti. *fan housing
|
605150618 |
— | ||
|
28
|
28
M27127
Gaine *tubing
|
M27127 |
— | ||
| replacement | |||||
|
28
|
28
27127 GAINE * TUBING (1PAC=1M) |
27127 |
US $20.37 |
||
|
29
|
29
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
30
|
30
605350710 Boyau *hose |
605350710 |
US $47.91 |
||
|
31
|
31
605250712 Boyau *hose (eng -> rh rad) |
605250712 |
US $72.37 |
||
|
32
|
32
605350713 Boyau *hose (res -> t-fit) |
605350713 |
US $66.25 |
||
|
33
|
33
605350714 Boyau *hose (t-fit -> eng) |
605350714 |
US $66.25 |
||
|
34
|
34
605350715 Boyau *hose (t-fit -> lh rad) |
605350715 |
US $66.25 |
||
|
35
|
35
605350711
Tube *al-tube
|
605350711 |
— | ||
|
36
|
36
M390003
Tube *tube
|
M390003 |
— | ||
|
37
|
37
414227300 Clip - spring |
414227300 |
US $20.70 |
||
