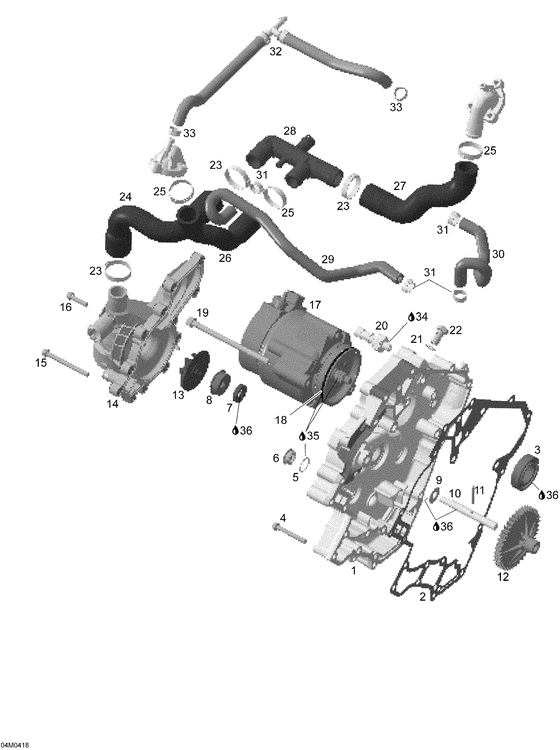

03- magneto Diagram Bombardier Expedition
- Year
- 2004
- Sales region
- General
- Model
- Expedition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
420811661
Couvercle igni.*ignition cover
|
420811661 |
— | ||
| replacement | |||||
|
1
|
1
420811663 Couvercle igni.*ignition cover |
420811663 |
US $377.37 |
||
|
2
|
2
420950590
Joint etanche *gasket
|
420950590 |
— | ||
|
3
|
3
420932650
Roulement bille*ball bearing
|
420932650 |
— | ||
|
4
|
4
420440322 Screw |
420440322 |
US $3.83 |
||
|
5
|
5
420250890 Joint torique *o-ring |
420250890 |
US $4.23 |
||
|
6
|
6
420241801 Bouchon purge *plug screw |
420241801 |
US $9.45 |
||
|
7
|
7
420650310
Anneau etanche *oil seal
|
420650310 |
— | ||
| replacement | |||||
|
7
|
7
420650315 Anneau etanche *seal-oil |
420650315 |
US $14.16 |
||
|
8
|
8
420650370 Joint tournant *rotary seal |
420650370 |
US $46.37 |
||
| replacement | |||||
|
8
|
8
420650371 ROTARY SEAL |
420650371 |
US $52.63 |
||
|
9
|
9
420227685 Rondelle butee *thrust washer |
420227685 |
US $7 |
||
|
10
|
10
420837480
Arbre pompe eau*waterpump shaft
|
420837480 |
— | ||
| replacement | |||||
|
10
|
10
420837485 Arbre*waterpump shaft assy. |
420837485 |
US $100.93 |
||
|
11
|
11
420232430
Goupille aigui.*needle pin
|
420232430 |
— | ||
|
12
|
12
420834460 Engre.pompe eau*waterpump gear 41 t |
420834460 |
US $35.79 |
||
|
13
|
13
420222500
Turbine *impeller
|
420222500 |
— | ||
| replacement | |||||
|
13
|
13
420222501 TURBINE *IMPELLER |
420222501 |
US $22.39 |
||
|
14
|
14
420811605
Logement pompe *waterpump housing
|
420811605 |
— | ||
|
15
|
15
420440602 Screw |
420440602 |
US $7.80 |
||
|
16
|
16
420440232
Vis *screw
|
420440232 |
— | ||
|
17
|
17
420296460
Alternateur 40a*alternator 40 a
|
420296460 |
— | ||
|
18
|
18
420850430
Joint torique *o ring
|
420850430 |
— | ||
|
19
|
19
420941651 Screw-hex collar m8x119 sw 11 |
420941651 |
US $11.17 |
||
|
20
|
20
420256772
Interrupteur pr*oil pressure switch
|
420256772 |
— | ||
| replacement | |||||
|
20
|
20
420256773
Interrupteur pr*oil pressure switch
|
420256773 |
— | ||
|
21
|
21
420230150 Anneau etanche *gasket ring |
420230150 |
US $18.55 |
||
|
22
|
22
420940874 Boulon banjo *banjo bolt |
420940874 |
US $16.42 |
||
|
23
|
23
420853173 Bride serrage *clamp |
420853173 |
US $9.13 |
||
|
24
|
24
420922180 Hose *molded hose |
420922180 |
US $36.69 |
||
|
25
|
25
420853163 Bride serrage *clamp |
420853163 |
US $10.52 |
||
|
26
|
26
420922745 Hose *molded hose |
420922745 |
US $36.69 |
||
|
27
|
27
420922740 Hose *molded hose |
420922740 |
US $36.69 |
||
|
28
|
28
293700023 Raccord coude90*fitting-elbow |
293700023 |
US $21.42 |
||
|
29
|
29
420822090 Hose *molded hose |
420822090 |
US $65.25 |
||
|
30
|
30
420822092 Hose *molded hose |
420822092 |
US $43.81 |
||
|
31
|
31
420853303
Bride serrage *clamp
|
420853303 |
— | ||
|
32
|
32
420660881 Hose *molded hose |
420660881 |
US $117.25 |
||
|
33
|
33
420853303
Bride serrage *clamp
|
420853303 |
— | ||
|
34
|
34
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
35
|
35
293550030 Graisse *grease |
293550030 |
US $36.06 |
||
|
36
|
36
293600054
Huile 4t 12x1 * oil 4t 12x1 synth 0w40
|
293600054 |
— | ||
