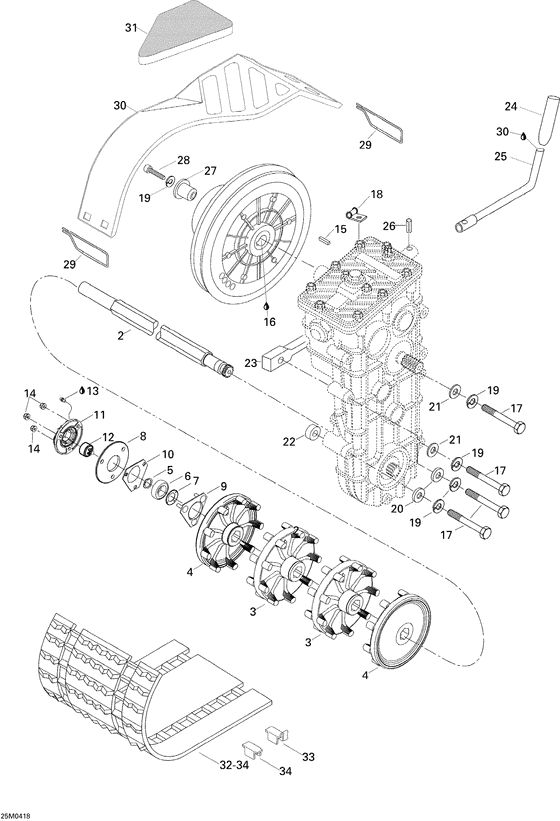

05- drive axle Diagram Bombardier Expedition
- Year
- 2004
- Sales region
- General
- Model
- Expedition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
605249455 Arbre entrai. *drive axle |
605249455 |
US $351.87 |
||
|
3
|
3
414931800 Barbotin 8d *sprocket 8th |
414931800 |
US $67.29 |
||
|
4
|
4
415067400 Demi-barbot.8d.*half-sprock.8th. |
415067400 |
US $48.93 |
||
|
5
|
5
371910200 Circlip *circlip |
371910200 |
US $10.65 |
||
|
6
|
6
504152009
Roulement bille*ball bearing
|
504152009 |
— | ||
| replacement | |||||
|
6
|
6
293350060 Roulement bille*ball bearing |
293350060 |
US $50.80 |
||
|
7
|
7
501017400 Prot.roulement *bearing protector |
501017400 |
US $9.13 |
||
|
8
|
8
M5446641
Rondelle *washer
|
M5446641 |
— | ||
|
9
|
9
504151860 Logement roul. *housing-bear.weld. |
504151860 |
US $12.19 |
||
|
10
|
10
501025000 Flasque *flange |
501025000 |
US $5.07 |
||
|
11
|
11
504152173 Flasque ind.vit*flange-speed. |
504152173 |
US $84.03 |
||
|
12
|
12
504152040
Adaptateur magn*adaptor-magnetic
|
504152040 |
— | ||
|
13
|
13
219700417
Graise syntheti*grease-synthe.
|
219700417 |
— | ||
|
14
|
14
M33201
Nut-hex.elastic m8
|
M33201 |
— | ||
|
15
|
15
M418763
Clavette *key
|
M418763 |
— | ||
|
16
|
16
293800070 Loct.anti grip.*loct-antiseize |
293800070 |
US $40.78 |
||
|
17
|
17
M40299
Screw m8 x 100
|
M40299 |
— | ||
|
18
|
18
M5443134 Porte fil *wire-holder |
M5443134 |
US $8.13 |
||
|
19
|
19
234181401 Washer-lock din*.127b |
234181401 |
US $59.50 |
||
|
20
|
20
M20077 Washer |
M20077 |
US $14.50 |
||
|
21
|
21
M20104
Washer-flat
|
M20104 |
— | ||
|
22
|
22
605450155 Douille *spacer |
605450155 |
US $15.27 |
||
|
23
|
23
605351366 Barre connex. *connecting bar |
605351366 |
US $21.39 |
||
|
24
|
24
M28247
Boule trans. *ball
|
M28247 |
— | ||
|
25
|
25
605350153 Bras chan.vit.*shift handle |
605350153 |
US $80.55 |
||
|
26
|
26
M41007 Goup.ressort *pin-spring |
M41007 |
US $1 |
||
| replacement | |||||
|
26
|
26
41007 SPRING PIN 5 X 24 DIN 1481 |
41007 |
US $1 |
||
|
27
|
27
M5443201
Rallonge arbre *ext-countersha
|
M5443201 |
— | ||
|
28
|
28
M40286
Screw allen m8 x 45
|
M40286 |
— | ||
|
29
|
29
M5442726
Goupille *pin
|
M5442726 |
— | ||
|
30
|
30
605149860 Garde courroie *belt guard |
605149860 |
US $105.01 |
||
|
31
|
31
605250741 Mousse *foam isolant |
605250741 |
US $22.39 |
||
|
32
|
32
M13070
Chenille *track-assy 20x156x1.25
Includes Items 32 to 34; |
M13070 |
— | ||
| replacement | |||||
|
32
|
32
13070 Track ass'yIncludes Items 32 to 34; |
13070 |
US $1,606.98 |
||
|
33
|
33
M5318323
Agrafe de guide*cleat-guide
|
M5318323 |
— | ||
|
34
|
34
M5318322 Agrafe *cleat |
M5318322 |
US $45.65 |
||
