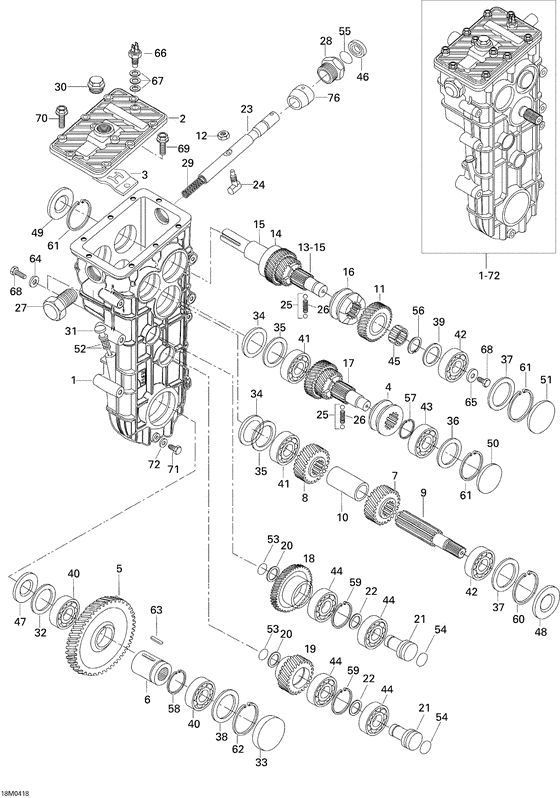

05- transmission Diagram Bombardier Expedition
- Year
- 2004
- Sales region
- General
- Model
- Expedition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
M870156275
Transmission *transmission assy
Includes Items 1 to 72; |
M870156275 |
— | ||
| replacement | |||||
|
1
|
1
M870156323
Transmission *transmission assy
Includes Items 1 to 72; |
M870156323 |
— | ||
|
1
|
1
M875156138
Carter chaine u*case-chain mach.
|
M875156138 |
— | ||
|
2
|
2
M875156043
Couvercle *cover
|
M875156043 |
— | ||
|
3
|
3
M875156111
Schema en h *h-scheme
|
M875156111 |
— | ||
| replacement | |||||
|
3
|
3
875156111 H-scheme |
875156111 |
US $43.81 |
||
|
4
|
4
M875156005
Roue embrayage *wheel-clutch
|
M875156005 |
— | ||
| replacement | |||||
|
4
|
4
875156005 Clutch wheel |
875156005 |
US $485.49 |
||
|
5
|
5
M875156114
Pignon 53 *sprocket-53
|
M875156114 |
— | ||
| replacement | |||||
|
5
|
5
875156114 Sprocket (53 tooth) |
875156114 |
US $598.69 |
||
|
6
|
6
M875156218
Axe *shaft
|
M875156218 |
— | ||
|
7
|
7
M875156276
Roue dentee 29d*sprocket 29th
|
M875156276 |
— | ||
|
8
|
8
M875156054
Roue dentee 34d*sprocket 34th
|
M875156054 |
— | ||
| replacement | |||||
|
8
|
8
875156054 Sprocket (34 tooth) |
875156054 |
US $660.93 |
||
|
9
|
9
M875156069
Axe *shaft
|
M875156069 |
— | ||
|
10
|
10
M875156087 Douille *sleeve |
M875156087 |
US $50.97 |
||
|
11
|
11
M875156115
Pignon 28 *sprocket-28
|
M875156115 |
— | ||
|
12
|
12
M510611002 Ecrou *nut |
M510611002 |
US $7 |
||
|
13
|
13
M875156063
Arbre *shaft-variator
Includes Items 13 to 15; |
M875156063 |
— | ||
|
14
|
14
M610063050
Roulement bille*ball bearing
|
M610063050 |
— | ||
| replacement | |||||
|
14
|
14
610063050 Bearing 6305 |
610063050 |
US $51.97 |
||
|
15
|
15
M875156089
Douille *sleeve
|
M875156089 |
— | ||
|
16
|
16
M875156005
Roue embrayage *wheel-clutch
|
M875156005 |
— | ||
| replacement | |||||
|
16
|
16
875156005 Clutch wheel |
875156005 |
US $485.49 |
||
|
17
|
17
M875156068
Axe *shaft-reverse
|
M875156068 |
— | ||
|
18
|
18
M875156050
Pignon 28 *sprocket-28
|
M875156050 |
— | ||
| replacement | |||||
|
18
|
18
875156050 PIGNON 28 *SPROCKET-28 |
875156050 |
US $586.47 |
||
|
19
|
19
M875156049
Pignon 31 *sprocket-31
|
M875156049 |
— | ||
| replacement | |||||
|
19
|
19
875156049 PIGNON 31 *SPROCKET-31 |
875156049 |
US $875.48 |
||
|
20
|
20
M875156094
Bague *ring
|
M875156094 |
— | ||
|
21
|
21
M875147204
Axe *shaft
|
M875147204 |
— | ||
|
22
|
22
M875147205
Rondelle *washer
|
M875147205 |
— | ||
|
23
|
23
M875156072
Axe *shaft
|
M875156072 |
— | ||
|
24
|
24
M875156073
Tige *pin
|
M875156073 |
— | ||
|
25
|
25
M616810064
Bille *ball
|
M616810064 |
— | ||
|
26
|
26
M875156105 Ressort *spring |
M875156105 |
US $9.71 |
||
|
27
|
27
M875156076
Ecrou a douille*nut-sleeve
|
M875156076 |
— | ||
| replacement | |||||
|
27
|
27
875156076 Sleeve |
875156076 |
US $14.25 |
||
|
28
|
28
M875156077
Ecrou a douille*nut-sleeve
|
M875156077 |
— | ||
| replacement | |||||
|
28
|
28
875156077 Sleeve |
875156077 |
US $18.33 |
||
|
29
|
29
M875156078 Ressort *spring |
M875156078 |
US $16.29 |
||
|
30
|
30
M875156098
Bouchon *plug
|
M875156098 |
— | ||
|
31
|
31
M875156097
Bouchon remp.as*cap-filler ass.
|
M875156097 |
— | ||
|
32
|
32
M617395067
Cale epaisseur *shim
|
M617395067 |
— | ||
|
33
|
33
M614100068
Bouchon *plug
|
M614100068 |
— | ||
|
34
|
34
M875152953
Bouchon *plug
|
M875152953 |
— | ||
|
35
|
35
M617394352
Cale 0.5 mm *shim 0.5 mm
|
M617394352 |
— | ||
|
36
|
36
M617394252
Cale epaisseur *shim
|
M617394252 |
— | ||
|
37
|
37
M617395065
Cale epaisseur *shim
|
M617395065 |
— | ||
| replacement | |||||
|
37
|
37
617395065 Adjustment shim 0.3mm |
617395065 |
US $16.29 |
||
|
38
|
38
M617395568
Cale epaisseur *shim
|
M617395568 |
— | ||
|
39
|
39
M616092542 Rondelle *washer-axial |
M616092542 |
US $35.65 |
||
|
40
|
40
M6008
Roulement bille*ball bearing
|
M6008 |
— | ||
| replacement | |||||
|
40
|
40
6008 BEARING |
6008 |
US $48.11 |
||
|
41
|
41
M610063044
Roulement bille*ball bearing
|
M610063044 |
— | ||
| replacement | |||||
|
41
|
41
610063044 Bearing 6304 |
610063044 |
US $55.13 |
||
|
42
|
42
M610063050
Roulement bille*ball bearing
|
M610063050 |
— | ||
| replacement | |||||
|
42
|
42
610063050 Bearing 6305 |
610063050 |
US $51.97 |
||
|
43
|
43
M6304
Roulement bille*ball bearing
|
M6304 |
— | ||
|
44
|
44
M610063036
Roulement bille*ball bearing
|
M610063036 |
— | ||
| replacement | |||||
|
44
|
44
610063036 BEARING |
610063036 |
US $56.05 |
||
|
45
|
45
M611002529
Roul.aiguille *needle bearing
|
M611002529 |
— | ||
| replacement | |||||
|
45
|
45
611002529 Needle bearing |
611002529 |
US $30.26 |
||
|
46
|
46
M614102031
Joint etanche *seal-oil
|
M614102031 |
— | ||
|
47
|
47
M614102852
Anneau etanche *seal-oil
|
M614102852 |
— | ||
| replacement | |||||
|
47
|
47
614102852 Oil seal |
614102852 |
US $32.22 |
||
|
48
|
48
M614102562
Anneau etanche *seal-oil
|
M614102562 |
— | ||
| replacement | |||||
|
48
|
48
614102562 Oil seal |
614102562 |
US $57.63 |
||
|
49
|
49
M614103562
Anneau etanche *seal-oil
|
M614103562 |
— | ||
|
50
|
50
M614100052
Bouchon *plug
|
M614100052 |
— | ||
|
51
|
51
M614100062
Bouchon *plug
|
M614100062 |
— | ||
|
52
|
52
M614600725
Joint torique *o ring
|
M614600725 |
— | ||
|
53
|
53
M614601224
Joint torique *o ring
|
M614601224 |
— | ||
|
54
|
54
M614602431
Joint torique *o ring
|
M614602431 |
— | ||
|
55
|
55
M614601523
Joint torique *o ring
|
M614601523 |
— | ||
|
56
|
56
M617450025
Circlip *circlip
|
M617450025 |
— | ||
| replacement | |||||
|
56
|
56
617450025 Circlip |
617450025 |
US $5.07 |
||
|
57
|
57
M617450028
Circlip *circlip
|
M617450028 |
— | ||
|
58
|
58
M617300040 Circlip *circlip |
M617300040 |
US $3.83 |
||
|
59
|
59
M617330047
Circlip *circlip
|
M617330047 |
— | ||
|
60
|
60
M617330052
Circlip *circlip
|
M617330052 |
— | ||
| replacement | |||||
|
60
|
60
M31002
Circlip *circlip
|
M31002 |
— | ||
|
61
|
61
M617330062
Anneau blocage *ring-lock
|
M617330062 |
— | ||
| replacement | |||||
|
61
|
61
617330062 Circlip |
617330062 |
US $11.17 |
||
|
62
|
62
M617330068
Circlip *circlip
|
M617330068 |
— | ||
| replacement | |||||
|
62
|
62
617330068 Circlip |
617330068 |
US $12.19 |
||
|
63
|
63
M603345080 Clavette *key |
M603345080 |
US $11.17 |
||
|
64
|
64
M501150902 Rondelle *washer |
M501150902 |
US $7 |
||
|
65
|
65
M875156112 Rondelle *washer |
M875156112 |
US $11.05 |
||
|
66
|
66
M654100225
Transmetteur *sender-backup
|
M654100225 |
— | ||
|
67
|
67
M617391218
Cale *shim
|
M617391218 |
— | ||
|
68
|
68
207182044 Screw-hex.cap din.933 |
207182044 |
US $9.50 |
||
|
69
|
69
M40337
Screw-hex.cap
|
M40337 |
— | ||
|
70
|
70
M537001402
Vis *screw
|
M537001402 |
— | ||
|
71
|
71
M528801342
Bouchon *plug
|
M528801342 |
— | ||
|
72
|
72
M615580812
Anneau joint *ring-gasket
|
M615580812 |
— | ||
