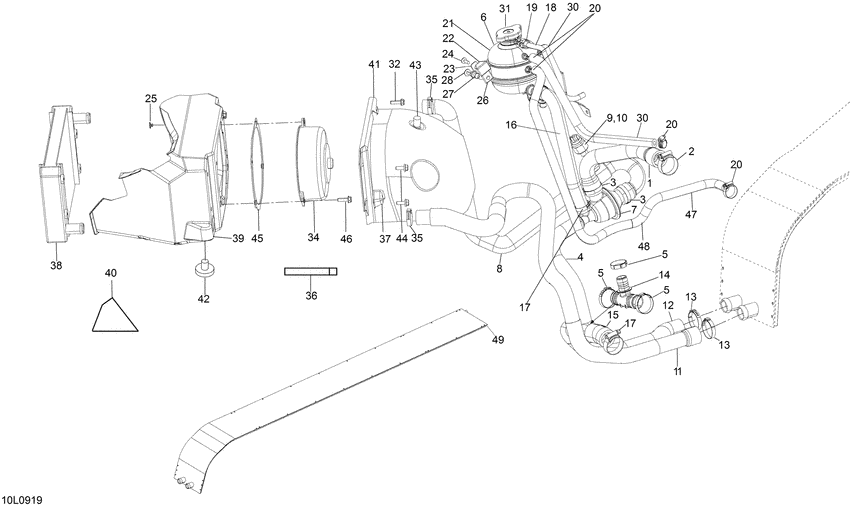

01- cooling system Diagram Bombardier Expedition
- Year
- 2009
- Sales region
- General
- Model
- Expedition TUV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
509000522 Hose outlet |
509000522 |
US $55.03 |
||
|
2
|
2
509000443 Bride serrage *gear clamp |
509000443 |
US $14.14 |
||
|
3
|
3
509000181 Bride serrage *gear clamp |
509000181 |
US $5.71 |
||
|
4
|
4
509000523 Bypass hose |
509000523 |
US $55.03 |
||
|
5
|
5
293650099 Clamp |
293650099 |
US $5.71 |
||
|
7
|
7
509000499 Logement therm *therm.housing |
509000499 |
US $50.08 |
||
|
8
|
8
509000596 Radiator hose |
509000596 |
US $55.03 |
||
|
9
|
9
509000480 Switch |
509000480 |
US $43.81 |
||
|
10
|
10
293800018 Scellant tuyau *sealant-pipe |
293800018 |
US $38.71 |
||
|
11
|
11
509000588 Air radiator hose |
509000588 |
US $55.03 |
||
|
12
|
12
509000589 Return radiator hose |
509000589 |
US $41.77 |
||
|
13
|
13
509000045 Bride serrage *clamp-gear |
509000045 |
US $104.70 |
||
|
14
|
14
509000372 T-fitting |
509000372 |
US $10.52 |
||
|
15
|
15
509000557
Boyau radiateur*radiator hose
|
509000557 |
— | ||
|
16
|
16
509000597
Filling hose
|
509000597 |
— | ||
|
17
|
17
509000442 Clamp |
509000442 |
US $6.95 |
||
|
18
|
18
509000598 Breather hose |
509000598 |
US $27.49 |
||
|
19
|
19
293650170 Bride serrage *hose clamp |
293650170 |
US $27.20 |
||
|
20
|
20
293650053 Bride serrage *clamp-oetiker |
293650053 |
US $20.40 |
||
|
21
|
21
509000368 Res.antigel *tank-coolant |
509000368 |
US $84.61 |
||
|
22
|
22
509000600
Reservoir support
|
509000600 |
— | ||
|
23
|
23
509000608 Support |
509000608 |
US $27.49 |
||
|
24
|
24
732600030
Screw-forming
|
732600030 |
— | ||
|
25
|
25
36005 Rivet |
36005 |
US $2.33 |
||
|
26
|
26
509000609 Support |
509000609 |
US $20.37 |
||
|
27
|
27
517303439 Bouton *knob |
517303439 |
US $35.22 |
||
|
28
|
28
250000146
Torx-screw truss head pt.k50x16
|
250000146 |
— | ||
| replacement | |||||
|
28
|
28
250000720 TORX SCREW K50 X 16 |
250000720 |
US $11.75 |
||
|
30
|
30
415110000 Boyau polyure *hose-polyurethane |
415110000 |
US $116.70 |
||
|
31
|
31
509000187 Bouchon radiat.*pressure cap |
509000187 |
US $32.15 |
||
|
32
|
32
205061244 Vis hexalobulaire |
205061244 |
US $5.44 |
||
|
34
|
34
509000456
Ventilateur
|
509000456 |
— | ||
| replacement | |||||
|
34
|
34
509000837 FAN |
509000837 |
US $191.56 |
||
|
35
|
35
M27011 Pince *clip |
M27011 |
US $10.69 |
||
|
36
|
36
508000532 Velcro-strip |
508000532 |
US $7.09 |
||
|
37
|
37
508000572 Bumper |
508000572 |
US $7.09 |
||
|
38
|
38
509000488 Radiateur *radiator |
509000488 |
US $374.51 |
||
|
39
|
39
509000489
Protecteur ventilateur
|
509000489 |
— | ||
|
40
|
40
509000615 Mousse |
509000615 |
US $23.41 |
||
|
41
|
41
509000558 New Genuine Part |
509000558 |
US $19.33 |
||
|
42
|
42
570044700 Butoir caout. *bumper-rubber |
570044700 |
US $20.34 |
||
|
43
|
43
710000992 Clip *clip |
710000992 |
US $5.71 |
||
|
44
|
44
207661244 Screw-hex.flange din.6921 |
207661244 |
US $27 |
||
|
45
|
45
509000614 Support |
509000614 |
US $21.39 |
||
|
46
|
46
210262040 Screw-forming hex.hd.flange m6 x 20 |
210262040 |
US $13.60 |
||
|
47
|
47
509000601 Formed hose |
509000601 |
US $41.77 |
||
|
48
|
48
513033412 Gaine |
513033412 |
US $5.71 |
||
|
49
|
49
509000586
Radiateur
NTC_600SDI; |
509000586 |
— | ||
