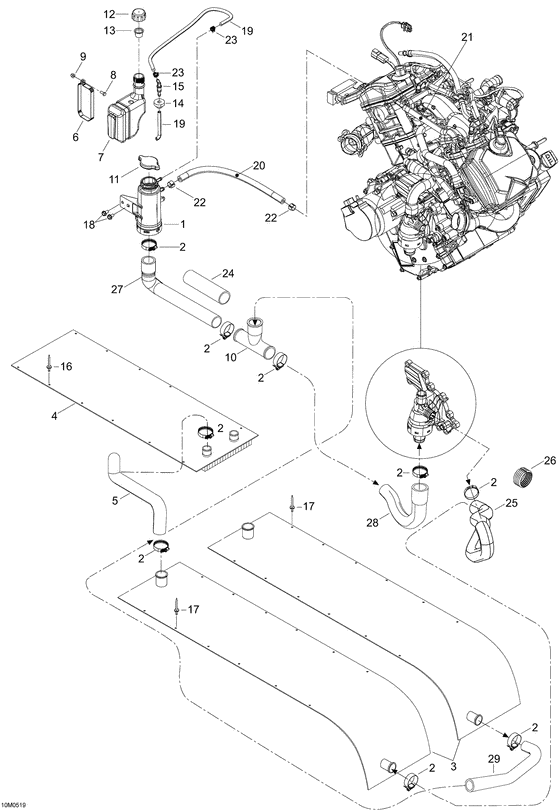

01- cooling system Diagram Bombardier Expedition
- Year
- 2005
- Sales region
- General
- Model
- Expedition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
509000176 Goulot remplis.*filler neck assy |
509000176 |
US $73.41 |
||
|
2
|
2
40880400
Bride de serrage
|
40880400 |
— | ||
|
3
|
3
605151688 Radiateur dr. *radiator weld rh |
605151688 |
US $731.31 |
||
|
3
|
3
605152382 Radiateur ga. *radiator lh |
605152382 |
US $731.31 |
||
|
4
|
4
605351687 Radiateur arr. *radiator weld rear |
605351687 |
US $762.93 |
||
|
5
|
5
605252280
Boyau radiareur*hose front rear radiotor
|
605252280 |
— | ||
|
6
|
6
509000191 Support reserv.*reserv. support |
509000191 |
US $21.39 |
||
|
7
|
7
709200099 Res.antigel *coolant tank |
709200099 |
US $63.21 |
||
|
8
|
8
M40366
Screw m5x16
|
M40366 |
— | ||
|
9
|
9
M33062 Nut m5 |
M33062 |
US $1.79 |
||
|
10
|
10
509000219 Raccord en t *fitting-t |
509000219 |
US $15.27 |
||
|
11
|
11
509000180 Bouchon radiat.*pressure cap |
509000180 |
US $22.39 |
||
|
12
|
12
709200009 Bouchon reserv.*cap-tank |
709200009 |
US $12.19 |
||
|
13
|
13
709200034
Bouchon anti *cap-protec.
|
709200034 |
— | ||
| replacement | |||||
|
13
|
13
709200205 Bouchon anti *cap-protec. |
709200205 |
US $4.05 |
||
|
14
|
14
570135100
Passe-fils *grommet
|
570135100 |
— | ||
| replacement | |||||
|
14
|
14
709200285
GROMMET
|
709200285 |
— | ||
|
15
|
15
414580600 Raccord male *connector-male |
414580600 |
US $27.35 |
||
|
16
|
16
M36489
Rivet *rivet
|
M36489 |
— | ||
|
17
|
17
M36083
Rivet *rivet
|
M36083 |
— | ||
|
18
|
18
M40327 Vis m6z12 *screw-m6x12 |
M40327 |
US $19.60 |
||
|
19
|
19
415110000 Boyau polyure *hose-polyurethane |
415110000 |
US $116.70 |
||
|
20
|
20
509000304 Boyau *hose |
509000304 |
US $26.49 |
||
|
21
|
21
M27127
Gaine *tubing
|
M27127 |
— | ||
| replacement | |||||
|
21
|
21
27127 GAINE * TUBING (1PAC=1M) |
27127 |
US $20.37 |
||
|
22
|
22
293650170 Bride serrage *hose clamp |
293650170 |
US $27.20 |
||
|
23
|
23
414554800 Bride a ressort*clamp-spring |
414554800 |
US $11.70 |
||
|
24
|
24
M39062 Gaine *tubing |
M39062 |
US $36.69 |
||
|
25
|
25
605250712 Boyau *hose (eng -> rh rad) |
605250712 |
US $72.37 |
||
|
26
|
26
M390003
Tube *tube
|
M390003 |
— | ||
|
27
|
27
605350713 Boyau *hose (res -> t-fit) |
605350713 |
US $66.25 |
||
|
28
|
28
605350714 Boyau *hose (t-fit -> eng) |
605350714 |
US $66.25 |
||
|
29
|
29
605350715 Boyau *hose (t-fit -> lh rad) |
605350715 |
US $66.25 |
||
