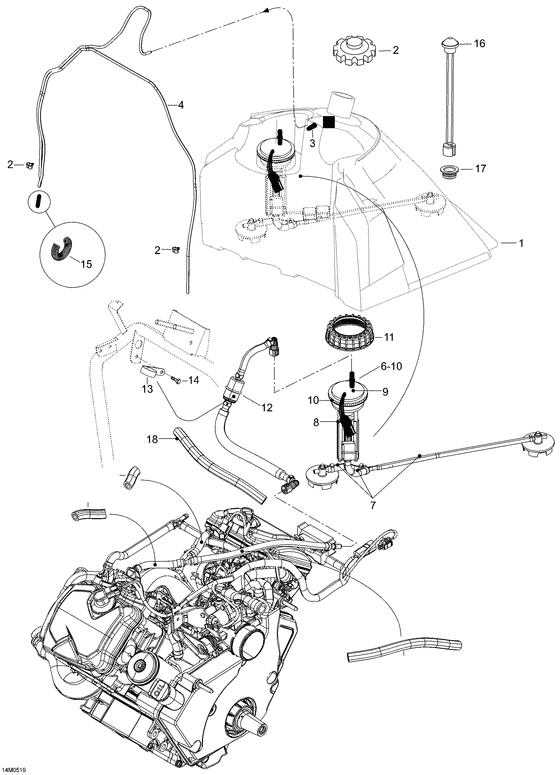

02- fuel system Diagram Bombardier Expedition
- Year
- 2005
- Sales region
- General
- Model
- Expedition
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
605151302 Reservoir ess. *fuel tank |
605151302 |
US $362.07 |
||
|
2
|
2
580259400
Cap-fuel tank
|
580259400 |
— | ||
|
3
|
3
404127600
Raccord *nipple
|
404127600 |
— | ||
|
4
|
4
M39035 Boyau *hose |
M39035 |
US $11 |
||
|
5
|
5
513032923 Bride de tube *clamp-tube |
513032923 |
US $8.55 |
||
|
6
|
6
605351840 Module p.essen.*module-fuel p.Includes 6 to 10; |
605351840 |
US $927.15 |
||
|
7
|
7
M19183
Ens. boyau ess*kit fuel hose
|
M19183 |
— | ||
|
8
|
8
M19184
Ensemble pompe*kit pump hose
|
M19184 |
— | ||
| replacement | |||||
|
8
|
8
861302000
Ensemble pompe*kit pump hose
|
861302000 |
— | ||
|
9
|
9
M19185
Ens.regulateur*kit regulator
|
M19185 |
— | ||
| replacement | |||||
|
9
|
9
861302100 Ens.regulateur*kit regulator |
861302100 |
US $184.59 |
||
|
10
|
10
513033039 Joint etanche *seal |
513033039 |
US $11 |
||
|
11
|
11
513033040 Ecrou mod.pompe*nut-fuel pump mod |
513033040 |
from US $26.10 |
||
|
12
|
12
513033106 Filtre essence *filter-fuel |
513033106 |
US $91.77 |
||
|
13
|
13
513033047 Attache collier*open clamp |
513033047 |
US $6.95 |
||
|
14
|
14
M40327 Vis m6z12 *screw-m6x12 |
M40327 |
US $19.60 |
||
|
15
|
15
M25003 Ressort *spring |
M25003 |
US $26.49 |
||
|
16
|
16
605351982
Capteur essen. *fuelmeter
|
605351982 |
— | ||
|
17
|
17
293720058 Passe-fils *grommet |
293720058 |
US $12.43 |
||
|
18
|
18
M39065
Tube *allu.coated fiber.tube
|
M39065 |
— | ||
