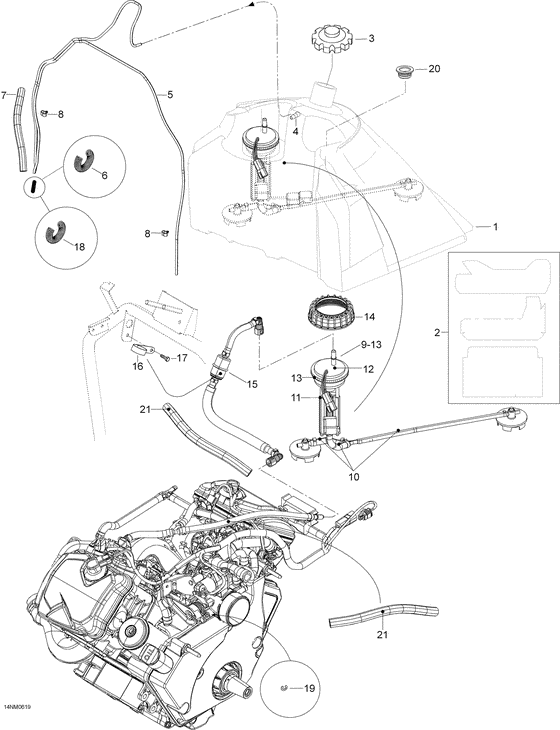

02- fuel system Diagram Bombardier Expedition
- Year
- 2006
- Sales region
- General
- Model
- Expedition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
605153637 Reservoir ess. *fuel tank |
605153637 |
US $362.07 |
||
|
2
|
2
619690001
Feuille reflec.*isolation 1m*1m
|
619690001 |
— | ||
| replacement | |||||
|
2
|
2
619690002 Feuille reflec.*isolation 1m*1m |
619690002 |
US $228.45 |
||
|
3
|
3
580259400
Cap-fuel tank
|
580259400 |
— | ||
|
4
|
4
404127600
Raccord *nipple
|
404127600 |
— | ||
|
5
|
5
M39035 Boyau *hose |
M39035 |
US $11 |
||
|
6
|
6
M25006 Ressort *spring |
M25006 |
US $15.90 |
||
|
8
|
8
513032923 Bride de tube *clamp-tube |
513032923 |
US $8.55 |
||
|
9
|
9
605351840 Module p.essen.*module-fuel p.Includes 9 to 13; |
605351840 |
US $927.15 |
||
|
10
|
10
M19183
Ens. boyau ess*kit fuel hose
|
M19183 |
— | ||
|
11
|
11
861302600 Ensemble pompe*kit pump hose |
861302600 |
US $536.57 |
||
|
12
|
12
861302100 Ens.regulateur*kit regulator |
861302100 |
US $184.59 |
||
|
13
|
13
513033039 Joint etanche *seal |
513033039 |
US $11 |
||
|
14
|
14
513033040 Ecrou mod.pompe*nut-fuel pump mod |
513033040 |
from US $26.10 |
||
|
15
|
15
513033106 Filtre essence *filter-fuel |
513033106 |
US $91.77 |
||
|
16
|
16
513033047 Attache collier*open clamp |
513033047 |
US $6.95 |
||
|
17
|
17
M40327 Vis m6z12 *screw-m6x12 |
M40327 |
US $19.60 |
||
|
18
|
18
M25003 Ressort *spring |
M25003 |
US $26.49 |
||
|
19
|
19
M31035
Circlip *circlip
|
M31035 |
— | ||
|
20
|
20
293720058 Passe-fils *grommet |
293720058 |
US $12.43 |
||
|
21
|
21
M39065
Tube *allu.coated fiber.tube
|
M39065 |
— | ||
