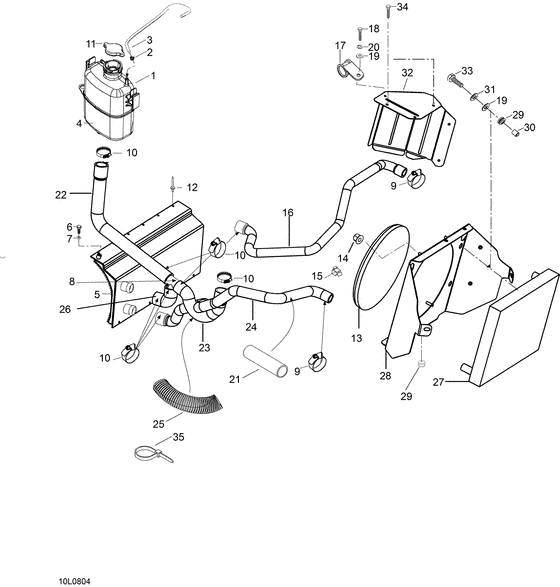

01- cooling system Diagram Bombardier Expedition
- Year
- 2008
- Sales region
- General
- Model
- Expedition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
276000086 Res.antigel *tank-coolant |
276000086 |
US $131.63 |
||
|
2
|
2
605627003 Bride *clamp zebra 10-16(1=10pc |
605627003 |
US $7.09 |
||
|
3
|
3
415080200
Boyau polyure *polyurethane hose
|
415080200 |
— | ||
|
4
|
4
M44110 Feuille reflect*sheet-reflect |
M44110 |
US $37.71 |
||
|
5
|
5
605253699 Radiateur *rear radiator |
605253699 |
US $690.51 |
||
|
6
|
6
207161044 Screw-hex.cap din.933 |
207161044 |
US $7.10 |
||
|
7
|
7
M20041
Joint +tan. *seal
|
M20041 |
— | ||
|
8
|
8
509000219 Raccord en t *fitting-t |
509000219 |
US $15.27 |
||
|
9
|
9
408800400 Clamp-gear |
408800400 |
US $121.90 |
||
|
10
|
10
605627002 Clamp zebra |
605627002 |
US $111.70 |
||
|
11
|
11
509000180 Bouchon radiat.*pressure cap |
509000180 |
US $22.39 |
||
|
12
|
12
M36108
Rivet *rivet
|
M36108 |
— | ||
|
13
|
13
M42091
Moteur fa spal *axail motor fa spal 225
|
M42091 |
— | ||
|
14
|
14
M33200 Flange nut m6 |
M33200 |
US $1.96 |
||
|
15
|
15
414227300 Clip - spring |
414227300 |
US $20.70 |
||
|
16
|
16
605354195 Water hose |
605354195 |
US $20.37 |
||
|
17
|
17
M27039 Bride *clamp |
M27039 |
US $10.69 |
||
|
18
|
18
207161644 Screw-hex.cap din.933 |
207161644 |
US $9.50 |
||
|
19
|
19
M20009
Washer 6.4 din 9021
|
M20009 |
— | ||
|
20
|
20
M33200 Flange nut m6 |
M33200 |
US $1.96 |
||
|
21
|
21
M39062 Gaine *tubing |
M39062 |
US $36.69 |
||
|
22
|
22
605253689 Boyau *hose (cooling tank -t junction) |
605253689 |
US $23.41 |
||
|
23
|
23
605353907 Hose |
605353907 |
US $10.17 |
||
|
24
|
24
605354194 Hose |
605354194 |
US $23.41 |
||
|
25
|
25
M28036 Tube *tubing |
M28036 |
US $18.33 |
||
|
26
|
26
605354450 Boyau *hose(radiator-thermostat) |
605354450 |
US $17.29 |
||
|
27
|
27
605353238 Radiateur *radiator 250 |
605353238 |
US $673.18 |
||
|
28
|
28
605253698 Support *support plate |
605253698 |
US $86.67 |
||
|
29
|
29
293720053 Passe-fils *grommet |
293720053 |
US $40.50 |
||
|
30
|
30
605453745 Douille *bushing |
605453745 |
US $11.17 |
||
|
31
|
31
234161471 Washer-lock black din.127b |
234161471 |
US $6.80 |
||
|
32
|
32
605254458 Plaque *deflector plate |
605254458 |
US $29.53 |
||
|
33
|
33
210251680 Screw-forming hex.hd.fl.gm6174m |
210251680 |
US $19.60 |
||
|
34
|
34
207162044 Screw-hex.cap din.933 |
207162044 |
US $9.90 |
||
|
35
|
35
M27026
Attache
|
M27026 |
— |
