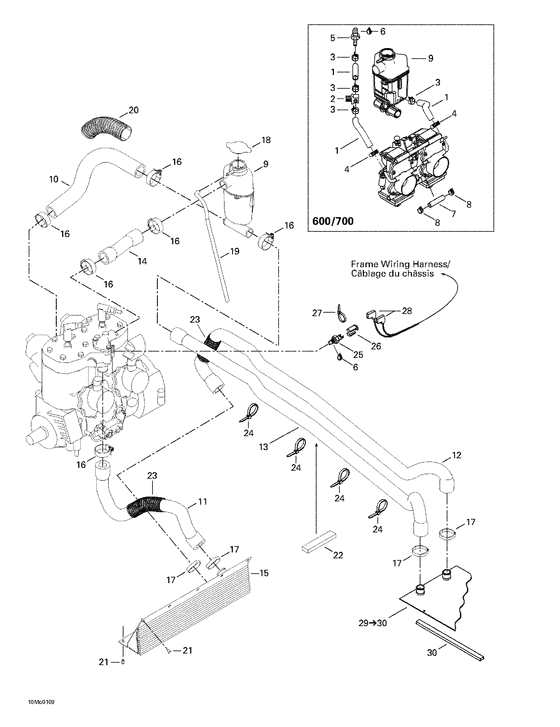

01- cooling system Diagram Bombardier Formula
- Year
- 2001
- Sales region
- General
- Model
- Formula Deluxe
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
414728700
Capteur temp. *sensor-temp.
Formula Deluxe 600. Formula Deluxe 700.; |
414728700 |
— | ||
|
|
509000115
Res.antigel *tank-coolant
Formula Deluxe 600. Formula Deluxe 700.; |
509000115 |
— | ||
| replacement | |||||
|
|
509000134 Res.antigel *tank-coolantFormula Deluxe 600. Formula Deluxe 700.; |
509000134 |
US $83.61 |
||
|
1
|
1
509000093
Boyau 8mm *hose-8mm
Formula Deluxe 600. Formula Deluxe 700.; |
509000093 |
— | ||
|
2
|
2
512059324 Soupape 5/16" *valve-5/16Formula Deluxe 600. Formula Deluxe 700.; |
512059324 |
US $41.77 |
||
|
3
|
3
414655700 Bride a ressort*clamp-springFormula Deluxe 600. Formula Deluxe 700.; |
414655700 |
US $9.50 |
||
|
4
|
4
293650038
Bride serrage *clamp-tridon
Formula Deluxe 600. Formula Deluxe 700.; |
293650038 |
— | ||
|
5
|
5
293710082 Raccord droit *fitting-straightFormula Deluxe 600. Formula Deluxe 700.; |
293710082 |
US $8.13 |
||
|
6
|
6
293800018 Scellant tuyau *sealant-pipe |
293800018 |
US $38.71 |
||
|
7
|
7
404161956 Durite *hoseFormula Deluxe 600. Formula Deluxe 700.; |
404161956 |
US $18.55 |
||
|
8
|
8
404161957 Clip *clipFormula Deluxe 600. Formula Deluxe 700.; |
404161957 |
US $15.90 |
||
|
9
|
9
509000114
Res.antigel *tank-coolant
Formula Deluxe 500.; |
509000114 |
— | ||
| replacement | |||||
|
9
|
9
509000134 Res.antigel *tank-coolantFormula Deluxe 500.; |
509000134 |
US $83.61 |
||
|
10
|
10
509000001
Boyau entre mot*hose-inlet eng
|
509000001 |
— | ||
| replacement | |||||
|
10
|
10
509000135 Boyau entre mot*hose-inlet eng |
509000135 |
US $41.77 |
||
|
11
|
11
509000046 Boyau sort.mot.*hose-out.eng. |
509000046 |
US $54.03 |
||
|
12
|
12
509000003 Boyau inter rad*hose-radiator |
509000003 |
US $98.89 |
||
|
13
|
13
509000004
Boyau sort.rad.*hose-out.rad.
|
509000004 |
— | ||
|
14
|
14
509000112
Boyau *hose
|
509000112 |
— | ||
|
15
|
15
517297100
Radiateur av.s.*rad.-front weld.
|
517297100 |
— | ||
|
16
|
16
408800400 Clamp-gear |
408800400 |
US $121.90 |
||
|
17
|
17
509000045 Bride serrage *clamp-gear |
509000045 |
US $104.70 |
||
|
18
|
18
414684700
Bouchon radiat.*cap-pressure
|
414684700 |
— | ||
| replacement | |||||
|
18
|
18
509000187 Bouchon radiat.*pressure cap |
509000187 |
US $32.15 |
||
|
19
|
19
415110000 Boyau polyure *hose-polyurethane |
415110000 |
US $116.70 |
||
|
20
|
20
415084700 Gaine *protector tube |
415084700 |
US $2.53 |
||
|
21
|
21
390402200
Rivet-pop 3/16 *rivet-pop 3/16
|
390402200 |
— | ||
| replacement | |||||
|
21
|
21
293150293 Rivet-pop 3/16 *rivet-pop 3/16 |
293150293 |
US $24 |
||
|
22
|
22
293200003 Joint etanche *seal-tray |
293200003 |
US $37.20 |
||
|
23
|
23
409902200 Gaine 25mm *tubing-25mmFormula Deluxe 700.; |
409902200 |
US $15.73 |
||
|
24
|
24
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
|
25
|
25
512047000
Capteur temp. *sensor-temp.
Formula Deluxe 500. Formula Deluxe 600.; |
512047000 |
— | ||
|
26
|
26
515175297
Tampon connect.*plug-connector
|
515175297 |
— | ||
|
27
|
27
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
28
|
28
409010300 Cosse femelle *terminal-femal. |
409010300 |
US $58.70 |
||
|
29
|
29
517296300
Radiateur arr.s*rad.-rear weld.
Includes 29 - 30.; |
517296300 |
— | ||
|
30
|
30
518321655
Protecteur *protector
|
518321655 |
— | ||
| replacement | |||||
|
30
|
30
415012300 Protecteur *protector |
415012300 |
US $18.33 |
||
