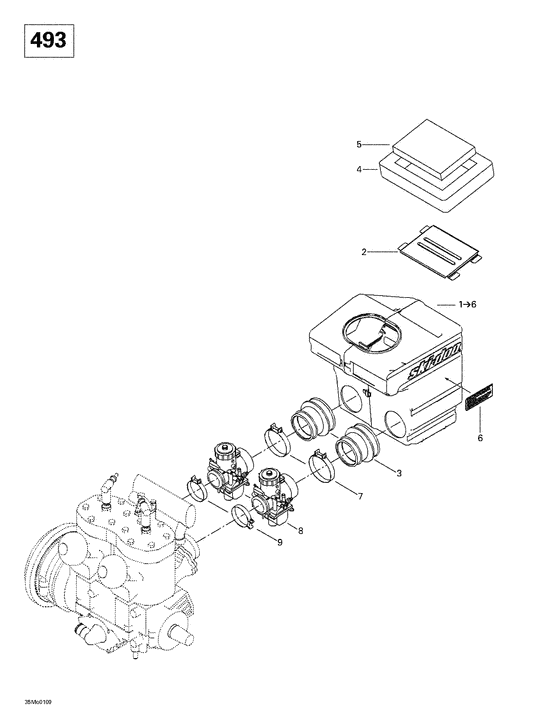

02- air intake system (493) Diagram Bombardier Formula
- Year
- 2001
- Sales region
- General
- Model
- Formula Deluxe
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
508000153
Silenc.adm.ass.*intake-air assy
Includes 1 - 6. Formula Deluxe 500.; |
508000153 |
— | ||
|
2
|
2
508000004 Grille adm. *grill-intakeFormula Deluxe 500.; |
508000004 |
US $140.73 |
||
|
3
|
3
508000073
Adap.admission *adap-air intake
Formula Deluxe 500.; |
508000073 |
— | ||
|
4
|
4
508000099 Mousse ext. *foam-lowerFormula Deluxe 500.; |
508000099 |
US $20.37 |
||
|
5
|
5
508000154 Filtre a air *filter-airFormula Deluxe 500.; |
508000154 |
US $20.37 |
||
|
6
|
6
516000130
Etiquette att. *caution-label
Formula Deluxe 500.; |
516000130 |
— | ||
|
7
|
7
508000046
Bride *clamp
Formula Deluxe 500.; |
508000046 |
— | ||
|
8
|
8
403138581
Carb.vm-38 *carb-vm-38
Formula Deluxe 500.; |
403138581 |
— | ||
|
9
|
9
512059005 Bride *clampFormula Deluxe 500.; |
512059005 |
US $13.21 |
