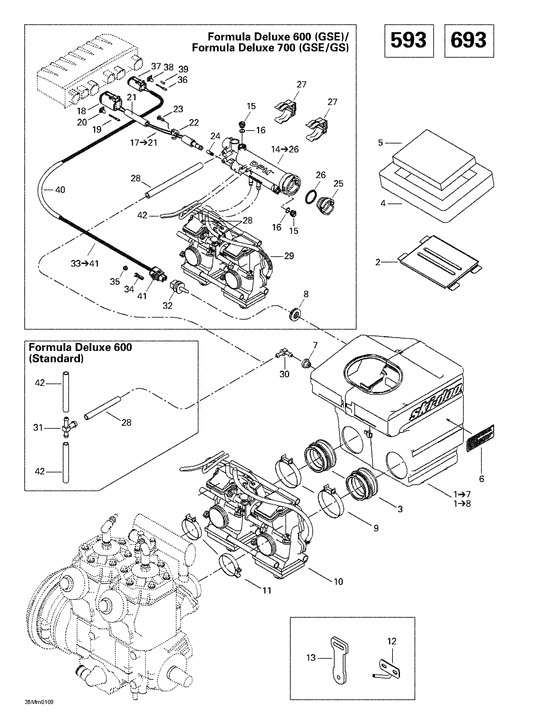

02- air intake system (593, 693) Diagram Bombardier Formula
- Year
- 2001
- Sales region
- General
- Model
- Formula Deluxe
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
403138671
Ensemble carb. *kit-carb.-tm-40
Formula Deluxe 700.; |
403138671 |
— | ||
| replacement | |||||
|
|
403138699
Ensemble carb. *kit-carb.-tm-40
Formula Deluxe 700.; |
403138699 |
— | ||
|
1
|
1
508000139
Silenc.adm.ass.*intake-air ass
Includes 1 - 7. Formula Deluxe 600.; |
508000139 |
— | ||
| replacement | |||||
|
1
|
1
508000350
Silenc.adm.ass.*intake-air ass
Includes 1 - 7. Formula Deluxe 600.; |
508000350 |
— | ||
|
1
|
1
508000140
Silenc.adm.ass.*intake-air ass
Includes 1 - 8. Formula Deluxe 600.; |
508000140 |
— | ||
| replacement | |||||
|
1
|
1
508000226
Silenc.adm.ass.*intake-air ass
Includes 1 - 8. Formula Deluxe 600.; |
508000226 |
— | ||
|
1
|
1
508000169
Silenc.adm.ass.*intake-air ass
Includes 1 - 8. Formula Deluxe 700.; |
508000169 |
— | ||
|
2
|
2
508000004 Grille adm. *grill-intakeFormula Deluxe 600. Formula Deluxe 700.; |
508000004 |
US $140.73 |
||
|
3
|
3
508000092 Adap.admission *adap-air intakeFormula Deluxe 600. Formula Deluxe 700.; |
508000092 |
US $19.33 |
||
|
4
|
4
508000099 Mousse ext. *foam-lowerFormula Deluxe 600. Formula Deluxe 700.; |
508000099 |
US $20.37 |
||
|
5
|
5
508000154 Filtre a air *filter-airFormula Deluxe 600. Formula Deluxe 700.; |
508000154 |
US $20.37 |
||
|
6
|
6
516000130
Etiquette att. *caution-label
Formula Deluxe 600. Formula Deluxe 700.; |
516000130 |
— | ||
|
7
|
7
513032908 Passe-fils *grommetFormula Deluxe 600. Formula Deluxe 700.; |
513032908 |
US $98.80 |
||
|
8
|
8
570065500 Anneau *grommetFormula Deluxe 600. Formula Deluxe 700.; |
570065500 |
US $14.25 |
||
|
9
|
9
508000162
Bride *clamp
Formula Deluxe 600. Formula Deluxe 700.; |
508000162 |
— | ||
| replacement | |||||
|
9
|
9
508000346 ClampFormula Deluxe 600. Formula Deluxe 700.; |
508000346 |
US $10.52 |
||
|
10
|
10
403138670
Ensemble carb. *kit-carb.-tm-40
Formula Deluxe 600.; |
403138670 |
— | ||
|
11
|
11
512059305
Bride *clamp
Formula Deluxe 600. Formula Deluxe 700.; |
512059305 |
— | ||
| replacement | |||||
|
11
|
11
512059835 Bride *clampFormula Deluxe 600. Formula Deluxe 700.; |
512059835 |
US $11.90 |
||
|
12
|
12
512059369
Attache carb.so*bracket-carb.weld
Formula Deluxe 600. Formula Deluxe 700.; |
512059369 |
— | ||
| replacement | |||||
|
12
|
12
512059504
Attache carb.so*bracket-carb.weld
Formula Deluxe 600. Formula Deluxe 700.; |
512059504 |
— | ||
|
13
|
13
512059372
Loquet carb. *latch-carburator
Formula Deluxe 600. Formula Deluxe 700.; |
512059372 |
— | ||
|
14
|
14
512059342
Collecteur pres*manifold-press
Includes 14 - 26. Formula Deluxe 600.; |
512059342 |
— | ||
| replacement | |||||
|
14
|
14
512059568
Collecteur pres*manifold-press
Includes 14 - 26. Formula Deluxe 600.; |
512059568 |
— | ||
|
14
|
14
512059408
Collect.pres.as*manif.-pres.assy
Includes 14 - 26. Formula Deluxe 700.; |
512059408 |
— | ||
| replacement | |||||
|
14
|
14
512059567
Collecteur pres*manifold-press
Includes 14 - 26. Formula Deluxe 700.; |
512059567 |
— | ||
|
15
|
15
512058921
Bouchon *cap
Formula Deluxe 600. Formula Deluxe 700.; |
512058921 |
— | ||
|
16
|
16
512058925
Joint torique *o-ring
Formula Deluxe 600. Formula Deluxe 700.; |
512058925 |
— | ||
|
17
|
17
515175271
Cablage collect*harness-press.manif.
Includes 17 - 21. Formula Deluxe 600. Formula Deluxe 700.; |
515175271 |
— | ||
|
18
|
18
409015400 Logement fem.6c*housing-fem.6cFormula Deluxe 600. Formula Deluxe 700.; |
409015400 |
US $12.58 |
||
|
19
|
19
409015100 Cosse femelle *terminal-femal.Formula Deluxe 600. Formula Deluxe 700.; |
409015100 |
US $26 |
||
|
20
|
20
409014900 Verrou femelle *lock-femaleFormula Deluxe 600. Formula Deluxe 700.; |
409014900 |
US $4.05 |
||
|
21
|
21
415079900 Gaine *protector tubeFormula Deluxe 600. Formula Deluxe 700.; |
415079900 |
US $2.67 |
||
|
22
|
22
415061600 Barrure electr.*lock-solenoidFormula Deluxe 600. Formula Deluxe 700.; |
415061600 |
US $8.13 |
||
|
23
|
23
241140060 Screw-pt.hex.flange k40 x 10Formula Deluxe 600. Formula Deluxe 700.; |
241140060 |
US $9.60 |
||
|
24
|
24
404161825
Gicleur lanceur*starter-jet
Formula Deluxe 600. Formula Deluxe 700.; |
404161825 |
— | ||
|
25
|
25
512058949
Bouchon *cap
Formula Deluxe 600. Formula Deluxe 700.; |
512058949 |
— | ||
|
26
|
26
512058950
Joint torique *o-ring
Formula Deluxe 600. Formula Deluxe 700.; |
512058950 |
— | ||
|
27
|
27
512058919 Support *supportFormula Deluxe 600. Formula Deluxe 700.; |
512058919 |
US $14.25 |
||
|
28
|
28
415080200
Boyau polyure *polyurethane hose
Formula Deluxe 600. Formula Deluxe 700.; |
415080200 |
— | ||
|
29
|
29
409901700 Gaine 09mm i.d.*tubing-09mm i.d.Formula Deluxe 600. Formula Deluxe 700.; |
409901700 |
US $83.80 |
||
|
30
|
30
414580600 Raccord male *connector-maleFormula Deluxe 600. Formula Deluxe 700.; |
414580600 |
US $27.35 |
||
|
31
|
31
572045500 Raccord t 4-6-4*fitting-t 4-6-4 |
572045500 |
US $35.45 |
||
|
32
|
32
270600000 Capteur temp. *sensor-airFormula Deluxe 600. Formula Deluxe 700.; |
270600000 |
US $88.69 |
||
|
33
|
33
515175589
Cablage temp. *harness-temp.
Includes 33 - 41. Formula Deluxe 600. Formula Deluxe 700.; |
515175589 |
— | ||
|
34
|
34
278000998 Cosse femelle *terminal-femelleFormula Deluxe 600. Formula Deluxe 700.; |
278000998 |
US $58.70 |
||
|
35
|
35
278000999 Joint de fil *seal-wireFormula Deluxe 600. Formula Deluxe 700.; |
278000999 |
US $21.15 |
||
|
36
|
36
409015100 Cosse femelle *terminal-femal.Formula Deluxe 600. Formula Deluxe 700.; |
409015100 |
US $26 |
||
|
37
|
37
515175245
Logement femel.*housing-female
Formula Deluxe 600. Formula Deluxe 700.; |
515175245 |
— | ||
|
38
|
38
515175246
Verrou femelle *lock-female
Formula Deluxe 600. Formula Deluxe 700.; |
515175246 |
— | ||
|
39
|
39
515175303 Bouchon *plugFormula Deluxe 600. Formula Deluxe 700.; |
515175303 |
US $30.35 |
||
|
40
|
40
515175332 Gaine low temp.vinylFormula Deluxe 600. Formula Deluxe 700.; |
515175332 |
US $18.78 |
||
|
41
|
41
515175588 Loge.femelle *housing-femaleFormula Deluxe 600. Formula Deluxe 700.; |
515175588 |
US $16.29 |
||
|
42
|
42
404161904 Durite *hoseFormula Deluxe 600. Formula Deluxe 700.; |
404161904 |
US $16.93 |
||
