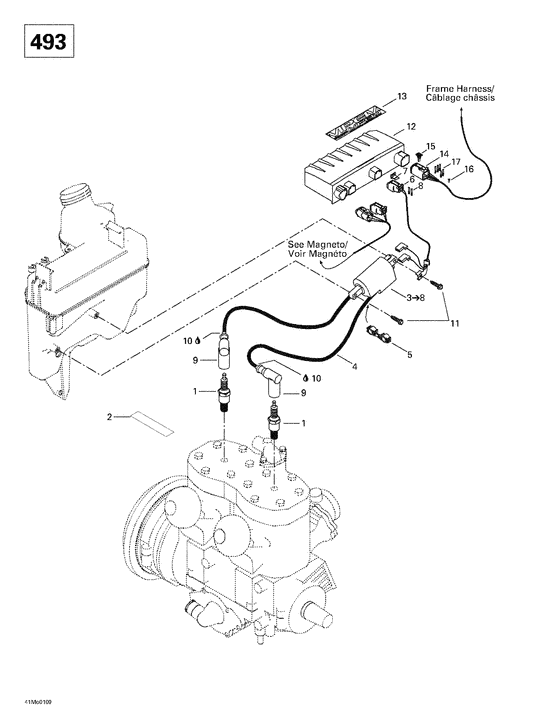

03- ignition (493) Diagram Bombardier Formula
- Year
- 2001
- Sales region
- General
- Model
- Formula Deluxe
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
414961100
Bougie br9es *plug-spark br9es
Formula Deluxe 500.; |
414961100 |
— | ||
| replacement | |||||
|
1
|
1
219703120 SPARK PLUG, NGK BR9ESFormula Deluxe 500.; |
219703120 |
US $21.84 |
||
|
2
|
2
516000986
Decalque bougie*decal-spark plug
Formula Deluxe 500.; |
516000986 |
— | ||
|
3
|
3
512059039 Bobine allumage*coil-ignitionIncludes 3 - 8. Formula Deluxe 500.; |
512059039 |
US $95.25 |
||
|
4
|
4
278001268
Fil bougie *wire-spark plug
Formula Deluxe 500.; |
278001268 |
— | ||
| replacement | |||||
|
4
|
4
278002198
Fil bougie *wire-spark plug
Formula Deluxe 500.; |
278002198 |
— | ||
|
5
|
5
410914600 Attache fil bou*clip-plasticFormula Deluxe 500.; |
410914600 |
from US $9.01 |
||
|
6
|
6
409207300 Logement femel.*housing-femaleFormula Deluxe 500.; |
409207300 |
US $10.85 |
||
|
7
|
7
409207100 Verrou femelle *lock-femaleFormula Deluxe 500.; |
409207100 |
US $3.11 |
||
|
8
|
8
278000632 Cosse femelle *terminal-femalFormula Deluxe 500.; |
278000632 |
US $28.40 |
||
|
9
|
9
278000237
Capuchon bougie*cap-spark plug
Formula Deluxe 500.; |
278000237 |
— | ||
|
10
|
10
293550004 Graisse dielect*grease-dielect dc4Formula Deluxe 500.; |
293550004 |
US $59.94 |
||
|
11
|
11
250000005
Screw-tapp.hex.type-ab
Formula Deluxe 500.; |
250000005 |
— | ||
|
12
|
12
515175380
Module calibre *module-calib.
Formula Deluxe 500.; |
515175380 |
— | ||
|
13
|
13
516000245
Decal.boit.elec*decal.-elect.box
Formula Deluxe 500.; |
516000245 |
— | ||
|
14
|
14
278000736 Bloc 6 circ.mal*housing-tabFormula Deluxe 500.; |
278000736 |
US $25.19 |
||
|
15
|
15
278000737 Cale 6 circ.mal*wedge-6 ways mFormula Deluxe 500.; |
278000737 |
US $19.45 |
||
|
16
|
16
293000052 Bouchon etanche*cap-sealingFormula Deluxe 500.; |
293000052 |
US $21.15 |
||
|
17
|
17
278000632 Cosse femelle *terminal-femalFormula Deluxe 500.; |
278000632 |
US $28.40 |
||
