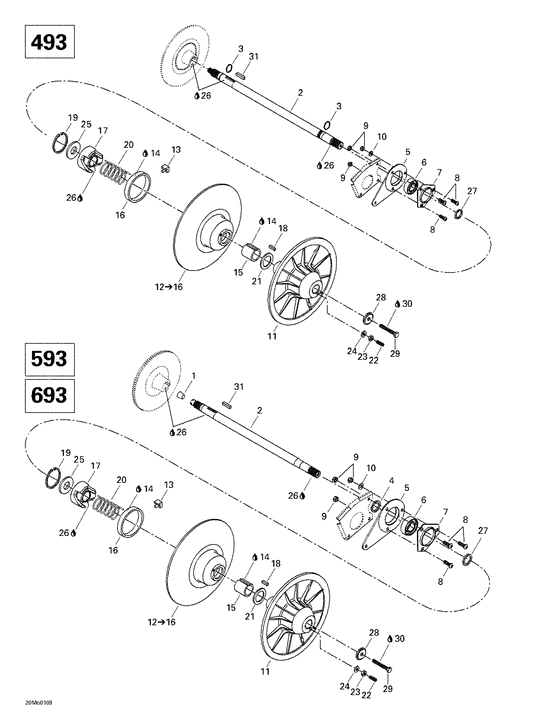

05- driven pulley Diagram Bombardier Formula
- Year
- 2001
- Sales region
- General
- Model
- Formula Deluxe
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
504152007
Roulement bille*ball bearing
Formula Deluxe 600. Formula Deluxe 700.; |
504152007 |
— | ||
| replacement | |||||
|
|
504152535
Roulement bille*ball bearing
Formula Deluxe 600. Formula Deluxe 700.; |
504152535 |
— | ||
|
|
417126343
Came usine *cam-mach.
Formula Deluxe 600. Formula Deluxe 700.; |
417126343 |
— | ||
|
|
501026300 Arbre renvoi *shaft-counterFormula Deluxe 600. Formula Deluxe 700.; |
501026300 |
US $568.11 |
||
|
|
415092800
Ressort *spring
Formula Deluxe 700.; |
415092800 |
— | ||
|
1
|
1
414784800 Bouchon liege *corkFormula Deluxe 600. Formula Deluxe 700.; |
414784800 |
US $3.01 |
||
|
2
|
2
504151858 Arbre renvoi *shaft-counterFormula Deluxe 500.; |
504151858 |
US $568.11 |
||
|
3
|
3
371910000 Circlip *circlipFormula Deluxe 500.; |
371910000 |
US $19.60 |
||
|
4
|
4
504149100 Entretoise *spacerFormula Deluxe 600. Formula Deluxe 700.; |
504149100 |
US $11.17 |
||
|
5
|
5
080044200
Entretoise *spacer
|
080044200 |
— | ||
|
6
|
6
504152008 Roulement bille*ball bearingFormula Deluxe 500.; |
504152008 |
US $37.71 |
||
|
7
|
7
501025000 Flasque *flange |
501025000 |
US $5.07 |
||
|
8
|
8
205482546 Screw-socket bn.hd.iso.7380 |
205482546 |
US $10.65 |
||
|
9
|
9
232581414 Nut-stop elastic din.985 |
232581414 |
US $7.30 |
||
|
10
|
10
234081410 Washer-flat din.125a |
234081410 |
US $11.70 |
||
|
11
|
11
417126477
Flasque fixe us*flange-fix.mach
|
417126477 |
— | ||
|
12
|
12
417126486
Flasque coul.as*flange-slid.as
Includes 12 - 16.; |
417126486 |
— | ||
|
13
|
13
414918000 Glissiere came *shoe-cam slid. |
414918000 |
US $50.70 |
||
|
14
|
14
413703100 Loctite 609 *loctite-609 |
413703100 |
from US $31.18 |
||
|
15
|
15
415011200 Douille *bushing |
415011200 |
US $40.09 |
||
|
16
|
16
414876600 Coussinet garl.*bushing-garlock |
414876600 |
US $41.09 |
||
|
17
|
17
417126333
Came usine 44 *cam-mach.44
Formula Deluxe 500.; |
417126333 |
— | ||
|
18
|
18
414820800 Clavette *key |
414820800 |
US $35.45 |
||
|
19
|
19
371903100 Circlip *circlip |
371903100 |
US $51.35 |
||
|
20
|
20
414558900
Ressort rappel *spring-release
Formula Deluxe 500. Formula Deluxe 600.; |
414558900 |
— | ||
|
21
|
21
504141900 Rondelle appuie*washer-thrust |
504141900 |
US $8.13 |
||
|
22
|
22
206263044 Screw-set socket din.913 |
206263044 |
US $22.10 |
||
|
23
|
23
232061414 Nut-hexagonal din.934 |
232061414 |
US $6.80 |
||
|
24
|
24
420245370 Rondelle *washer |
420245370 |
US $7.10 |
||
|
25
|
25
504141800
Rondelle *washer
|
504141800 |
— | ||
|
26
|
26
293800023
Loctite 767 lubrifiant antigrippage, 454 gr.
|
293800023 |
— | ||
|
27
|
27
504149100 Entretoise *spacer |
504149100 |
US $11.17 |
||
|
28
|
28
517302322 Rondelle force *washer-strength |
517302322 |
US $11.17 |
||
|
29
|
29
207087544 Screw-hex.cap din.931 |
207087544 |
US $15.80 |
||
|
30
|
30
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
31
|
31
507021300 Clavette *key |
507021300 |
US $13.45 |
||
