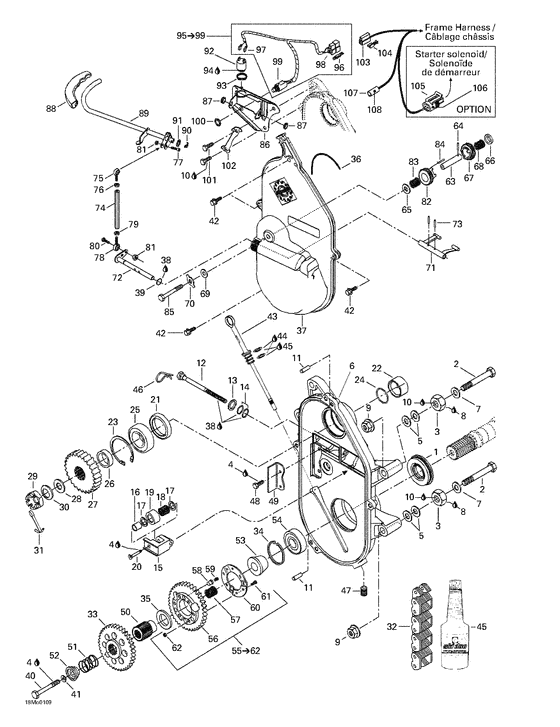

05- transmission Diagram Bombardier Formula
- Year
- 2001
- Sales region
- General
- Model
- Formula Deluxe
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
504084400
Roue dentee 44d*sprocket 44th
Formula Deluxe 600. Formula Deluxe 700.; |
504084400 |
— | ||
| replacement | |||||
|
|
581096800 Pignon 44d ass.*sprock-44th assyFormula Deluxe 600. Formula Deluxe 700.; |
581096800 |
US $411.50 |
||
|
|
250000012 Nut-hex.castle m20 x 1.5Formula Deluxe 600. Formula Deluxe 700.; |
250000012 |
US $7 |
||
|
|
581096900 Pignon 19 dents*19th sprocketFormula Deluxe 600. Formula Deluxe 700.; |
581096900 |
US $117.01 |
||
|
|
371006300 Goupille fendue*pin-cotterFormula Deluxe 600. Formula Deluxe 700.; |
371006300 |
US $7.10 |
||
|
|
504151856 Chaine large *chain-driv.l.Formula Deluxe 600. Formula Deluxe 700.; |
504151856 |
US $127.45 |
||
|
|
504139700 Roue dentee 24d*sprocket 24thFormula Deluxe 600.; |
504139700 |
US $122.37 |
||
|
|
504084300 Roue dentee 25d*sprocket 25thFormula Deluxe 700.; |
504084300 |
US $91.77 |
||
|
|
581096800 Pignon 44d ass.*sprock-44th assyFormula Deluxe 600. Formula Deluxe 700.; |
581096800 |
US $411.50 |
||
|
|
415049300 Joint etanche *oil sealFormula Deluxe 600. Formula Deluxe 700.; |
415049300 |
US $14.25 |
||
|
1
|
1
504151918 Anneau etanche *oil seal ass y |
504151918 |
US $24.40 |
||
|
2
|
2
207108044 Screw-hex.cap iso.4017 |
207108044 |
US $7 |
||
|
3
|
3
504083800 Entretoise *spacer |
504083800 |
US $9.13 |
||
|
4
|
4
293800005 Loctite 271 *loctite-271 |
293800005 |
US $31.18 |
||
|
5
|
5
504073700 Rondelle *washer |
504073700 |
US $20.25 |
||
|
6
|
6
504151776
Carter chaine u*case-chain mach.
|
504151776 |
— | ||
| replacement | |||||
|
6
|
6
504152064
Carter chaine u*case-chain mach.
|
504152064 |
— | ||
|
7
|
7
503183800 Rondelle *washer |
503183800 |
US $42.30 |
||
|
8
|
8
293800023
Loctite 767 lubrifiant antigrippage, 454 gr.
|
293800023 |
— | ||
|
9
|
9
233201414 Nut-flange elastic din.6926 |
233201414 |
US $20.10 |
||
|
10
|
10
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
11
|
11
732620001 Goupille cyl. *pin-cylinder |
732620001 |
US $1.79 |
||
|
12
|
12
732601314 Vis de reglage *screw adjusting |
732601314 |
US $21.51 |
||
|
13
|
13
234001410 Washer-flat din.125a |
234001410 |
US $16 |
||
|
14
|
14
414484400 Joint torique *o-ring |
414484400 |
US $70.90 |
||
|
15
|
15
504151951 Tendeur chaine *tensioner-chain mach. |
504151951 |
US $96.87 |
||
|
16
|
16
504080200 Entretoise *spacer |
504080200 |
US $11.17 |
||
|
17
|
17
504080300 Rondelle *washer |
504080300 |
US $60.70 |
||
|
18
|
18
405403000 Roul.aiguille *needle bearing |
405403000 |
US $25.45 |
||
|
19
|
19
414531300
Rouleau *roller
|
414531300 |
— | ||
|
20
|
20
732601144 Screw |
732601144 |
US $1.79 |
||
|
21
|
21
504151927 Joint etanche *sealFormula Deluxe 500.; |
504151927 |
US $20.37 |
||
|
22
|
22
507031500 Entretoise *spacerFormula Deluxe 600. Formula Deluxe 700.; |
507031500 |
US $13.21 |
||
|
23
|
23
371901700 Circlip int. *circlip-int. |
371901700 |
US $58.30 |
||
|
24
|
24
414876700 Joint torique *o-ringFormula Deluxe 600. Formula Deluxe 700.; |
414876700 |
US $11.06 |
||
|
25
|
25
504152006
Roulement bille*ball bearing
|
504152006 |
— | ||
| replacement | |||||
|
25
|
25
293350115 ROULEMENT BILLE*BALL BEARING |
293350115 |
US $12.85 |
||
|
26
|
26
504147200 Cale epaisseur *shim |
504147200 |
US $30.57 |
||
|
27
|
27
504074700
New Genuine Part
Formula Deluxe 500.; |
504074700 |
— | ||
|
28
|
28
504152049 Entretoise *spacerFormula Deluxe 500.; |
504152049 |
US $4.05 |
||
|
29
|
29
232210414 Nut-hex.castle thin din.937Formula Deluxe 500.; |
232210414 |
US $16 |
||
|
30
|
30
417000900 Rondelle res. *spring washerFormula Deluxe 500.; |
417000900 |
US $60.70 |
||
|
31
|
31
371801300 Goupille fendue*pin-cotterFormula Deluxe 500.; |
371801300 |
US $19.60 |
||
|
32
|
32
504151859
Chaine etroit *chain-driv.small
Formula Deluxe 500.; |
504151859 |
— | ||
|
33
|
33
504096800 Engr.coulis.56d*gear-sliding56 |
504096800 |
US $360.01 |
||
|
34
|
34
415064300 Circlip int. *circlip-int. |
415064300 |
US $4.98 |
||
|
35
|
35
504094300 Rondelle *washer |
504094300 |
US $10.14 |
||
|
36
|
36
415046400 Joint torique *o-ring |
415046400 |
US $8.13 |
||
|
37
|
37
504151845 Couvercle usine*cover-mach |
504151845 |
US $176.41 |
||
|
38
|
38
219700417
Graise syntheti*grease-synthe.
|
219700417 |
— | ||
|
39
|
39
414773200 Joint torique *o-ring |
414773200 |
US $15.05 |
||
|
40
|
40
207005044 Screw-hex.cap iso.4014 |
207005044 |
US $38.90 |
||
|
41
|
41
234100602 Washer-lock spring din.128a-a2 |
234100602 |
US $19.60 |
||
|
42
|
42
210263080 Screw-forming hex.hd.fl.gm6174m |
210263080 |
US $19.60 |
||
|
43
|
43
504151750 Bouchon remp.as*cap-filler assy. |
504151750 |
US $13.12 |
||
|
44
|
44
414969400 Joint torique *o-ring |
414969400 |
US $81.30 |
||
|
45
|
45
413803300
Huile chaine *oil-chain
(12 x 355 ml); |
413803300 |
— | ||
|
46
|
46
414575600 Goup.surete *pin-hair |
414575600 |
US $12.85 |
||
|
47
|
47
504151921 Plug 1/8-27 n.p.t. 3/4 taper |
504151921 |
US $5.61 |
||
|
48
|
48
210251180 Screw-forming hex.hd.fl.gm6174m |
210251180 |
US $21.60 |
||
|
49
|
49
504152036 Glissiere chain*chain-slider |
504152036 |
US $30.57 |
||
|
50
|
50
504097700
Arbre de couple*coupling
|
504097700 |
— | ||
|
51
|
51
504096600
Ressort rappel *spring-release
|
504096600 |
— | ||
| replacement | |||||
|
51
|
51
504153178 SPRING RELEASE |
504153178 |
US $9.69 |
||
|
52
|
52
504151964 Capuchon *cap |
504151964 |
US $58.09 |
||
|
53
|
53
504076300 Bague d appui *ring-retaining |
504076300 |
US $36.69 |
||
|
54
|
54
504152005 Roulement bille*ball bearing |
504152005 |
US $41.77 |
||
|
55
|
55
581095900 Pignon 44d ass.*sprock-44th assyIncludes 55 - 62. Formula Deluxe 500.; |
581095900 |
US $321.30 |
||
|
56
|
56
504088200
Roue dentee 44d*sprocket 44th
Formula Deluxe 500.; |
504088200 |
— | ||
|
57
|
57
414772600 Roulement aig. *needle bearing |
414772600 |
US $21.39 |
||
|
58
|
58
504076800 Tige d engagem.*pin-drive |
504076800 |
US $86.97 |
||
|
59
|
59
414772700
Ressort *spring
|
414772700 |
— | ||
|
60
|
60
504076100
Anneau retenue *ring-retainer
|
504076100 |
— | ||
|
61
|
61
207152044 Screw-hex.cap din.933 |
207152044 |
US $11.70 |
||
|
62
|
62
233551416 Nut-lock spring din.980v |
233551416 |
US $25.80 |
||
|
63
|
63
504083100 Axe de renverse*shaft-reverse |
504083100 |
US $44.83 |
||
|
64
|
64
250400010 Pin-rolled din.1481 m3 x 10 |
250400010 |
US $1.79 |
||
|
65
|
65
504077300 Entretoise *spacer |
504077300 |
US $6.07 |
||
|
66
|
66
504078700 Bague *ring |
504078700 |
US $17.29 |
||
|
67
|
67
581098200
Pignon 19d ass.*sprock-19th as
Includes 67 - 68. Formula Deluxe 500.; |
581098200 |
— | ||
|
68
|
68
414773100 Roul. aiguille *needle bearing |
414773100 |
US $15.27 |
||
|
69
|
69
504082900 Washer din 7603 |
504082900 |
US $17.10 |
||
|
70
|
70
504087700 Patte verrouil.*lock-tab |
504087700 |
US $9.13 |
||
|
71
|
71
504075800 Fourch. usine *fork-machining |
504075800 |
US $183.52 |
||
|
72
|
72
504151806
Axe fourch.soud*axle-fork weld
|
504151806 |
— | ||
|
73
|
73
414772500 Goup.ressort *pin-spring |
414772500 |
US $1.79 |
||
|
74
|
74
504151814 Barre accoupl. *rod-tie |
504151814 |
US $36.69 |
||
|
75
|
75
414773400 Joint rotule dr*joint-ball rh |
414773400 |
US $48.93 |
||
|
76
|
76
232061414 Nut-hexagonal din.934 |
232061414 |
US $6.80 |
||
|
77
|
77
205062560 Screw-socket hd.din.912a2 |
205062560 |
US $21.90 |
||
|
78
|
78
414773500 Joint rotule ga*joint-ball lh |
414773500 |
US $48.93 |
||
|
79
|
79
232066414 Nut-hex.lh.thread din.934 l |
232066414 |
US $7.25 |
||
|
80
|
80
207162044 Screw-hex.cap din.933 |
207162044 |
US $9.90 |
||
|
81
|
81
232561414 Nut-stop elastic din.985 |
232561414 |
US $7.10 |
||
|
82
|
82
581122200
Engren. 19d ass*sprock-19 teeth assy.
Includes 82 - 83.; |
581122200 |
— | ||
|
83
|
83
414805000 Roul. aiguille *needle bearing |
414805000 |
US $17.29 |
||
|
84
|
84
570048600 Tige alignement*rod-alignement |
570048600 |
US $66.05 |
||
|
85
|
85
207089044 Screw-hex.cap din.931 |
207089044 |
US $22.35 |
||
|
86
|
86
504151823 Supp.reculon so*supp-reverse weld |
504151823 |
US $50.97 |
||
|
87
|
87
504151818 Douille epaul. *bushing |
504151818 |
US $8.13 |
||
|
88
|
88
570064600 Poignee *grip |
570064600 |
US $17.49 |
||
|
89
|
89
504151810 Poignee soudee *handle-weld. |
504151810 |
US $71.35 |
||
|
90
|
90
371800800 Goupille fendue*pin-cotter |
371800800 |
US $5.30 |
||
|
91
|
91
503189264 Rondelle *washer |
503189264 |
US $3.28 |
||
|
92
|
92
414805102
Avertiss. dc-bt*horn-dc-bt
|
414805102 |
— | ||
|
93
|
93
414805101 Ecrou plastique*nut-plastic. |
414805101 |
US $3.83 |
||
|
94
|
94
293800086
Scell.silicone *seal-silicone
300 ml; |
293800086 |
— | ||
|
95
|
95
515175318
Interrupteur as*switch-assy
Includes 95 - 99.; |
515175318 |
— | ||
|
96
|
96
409210000 Cosse male *terminal-male |
409210000 |
US $58.30 |
||
|
97
|
97
409010300 Cosse femelle *terminal-femal. |
409010300 |
US $58.70 |
||
|
98
|
98
409204500
Logement male *housing-male
|
409204500 |
— | ||
|
100
|
100
250100012 Ecrou laiton *nut-brass |
250100012 |
US $7.25 |
||
|
101
|
101
207103544 Screw-hex.cap iso.4017 |
207103544 |
US $20.10 |
||
|
102
|
102
507029900
Frein de vis *lock-tab
|
507029900 |
— | ||
| replacement | |||||
|
102
|
102
507032316 Frein de vis *lock-tab |
507032316 |
US $4.05 |
||
|
103
|
103
409204600 Logement femel.*housing-female |
409204600 |
US $40.50 |
||
|
104
|
104
561503100 Cosse femelle *terminal-femal. |
561503100 |
US $52 |
||
|
105
|
105
278001113 Bloc 2 circ.mal*housing-tab |
278001113 |
US $84.60 |
||
|
106
|
106
278001114 Cosse femelle *terminal-femal |
278001114 |
US $21.15 |
||
|
107
|
107
415079200
Boyau *hose
|
415079200 |
— | ||
