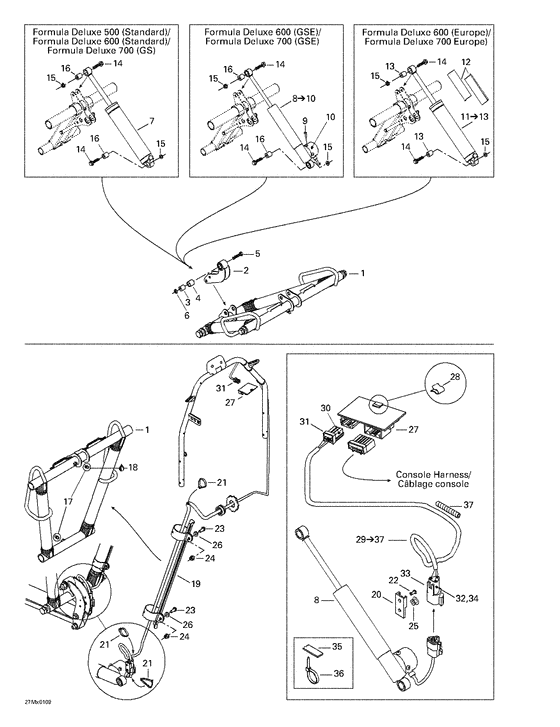

08- rear shocks Diagram Bombardier Formula
- Year
- 2001
- Sales region
- General
- Model
- Formula Deluxe
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
503189292
Bras avant p. *arm-front p.
|
503189292 |
— | ||
| replacement | |||||
|
1
|
1
503191083
Bras avant p. *arm-front p.
|
503191083 |
— | ||
|
2
|
2
503189303
Culbuteur peint*rocker-paint
|
503189303 |
— | ||
|
3
|
3
503189388
Axe de culbut. *axle-rocker
|
503189388 |
— | ||
|
4
|
4
503189410
Coussinet *cushion
|
503189410 |
— | ||
| replacement | |||||
|
4
|
4
503189626 Coussinet *cushion |
503189626 |
US $3.18 |
||
|
5
|
5
207005044 Screw-hex.cap iso.4014 |
207005044 |
US $38.90 |
||
|
6
|
6
233601416 Nut-locking elastic din.982 |
233601416 |
US $24 |
||
|
7
|
7
503189177
Amort. arr. *shock-rear
|
503189177 |
— | ||
| replacement | |||||
|
7
|
7
503190661 Amort. arr. *shock-rear |
503190661 |
US $110.13 |
||
|
8
|
8
503189453
Amortisseur *rear shock
Includes 8 - 10. Formula Deluxe 600. Formula Deluxe 700.; |
503189453 |
— | ||
|
9
|
9
503189692
Boulon *bolt
Formula Deluxe 600. Formula Deluxe 700.; |
503189692 |
— | ||
|
10
|
10
503189693
Actuateur *actuator
Formula Deluxe 600. Formula Deluxe 700.; |
503189693 |
— | ||
|
11
|
11
860306300
Ens.amor.hpg ar*kit-shock hpg rear
Includes 11 - 13. Formula Deluxe 600. Formula Deluxe 700.; |
860306300 |
— | ||
|
12
|
12
516000182
Decalque h.p.g *decal-h.p.g.
Formula Deluxe 600. Formula Deluxe 700.; |
516000182 |
— | ||
|
13
|
13
414936000 Coussinet *cushionFormula Deluxe 600. Formula Deluxe 700.; |
414936000 |
US $14.25 |
||
|
14
|
14
207684044 Screw-hex.flange din.6921 |
207684044 |
US $19.20 |
||
|
15
|
15
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
16
|
16
414936000 Coussinet *cushion |
414936000 |
US $14.25 |
||
|
17
|
17
408200700 Graisseur *grease fitting |
408200700 |
US $46.60 |
||
|
18
|
18
219700417
Graise syntheti*grease-synthe.
|
219700417 |
— | ||
|
19
|
19
503189573
Supp.passe-fils*support-grommet
Formula Deluxe 600. Formula Deluxe 700.; |
503189573 |
— | ||
|
20
|
20
503189685
Attache *bracket
Formula Deluxe 600. Formula Deluxe 700.; |
503189685 |
— | ||
|
21
|
21
414115200 Tie-rap 180 mmFormula Deluxe 600. Formula Deluxe 700.; |
414115200 |
US $7 |
||
|
22
|
22
390401600 Rivet-pop 1/8 *rivet-popFormula Deluxe 600. Formula Deluxe 700.; |
390401600 |
US $375.50 |
||
|
23
|
23
207151644 Screw-hex.cap din.933Formula Deluxe 600. Formula Deluxe 700.; |
207151644 |
US $11.70 |
||
|
24
|
24
233251414 Nut-flange elastic din.6926Formula Deluxe 600. Formula Deluxe 700.; |
233251414 |
US $5.36 |
||
|
25
|
25
390402000 Rivet-pop 3/16 *rivet-pop 3/16Formula Deluxe 600. Formula Deluxe 700.; |
390402000 |
US $20.50 |
||
|
26
|
26
234051410 Washer-flat din.125aFormula Deluxe 600. Formula Deluxe 700.; |
234051410 |
US $6.80 |
||
|
27
|
27
515175547
Unite cont.elec*unit-control elect.
Formula Deluxe 600. Formula Deluxe 700.; |
515175547 |
— | ||
|
29
|
29
515175553
Cablage susp. *harness-susp.
Includes 29 - 37. Formula Deluxe 600. Formula Deluxe 700.; |
515175553 |
— | ||
|
30
|
30
515175231 Cosse femelle *terminal-femaleFormula Deluxe 600. Formula Deluxe 700.; |
515175231 |
US $58.70 |
||
|
31
|
31
515175495 Logement femel.*housing-female(3 Circuits) (GSE) Formula Deluxe 600. Formula Deluxe 700.; |
515175495 |
US $18.12 |
||
|
32
|
32
278000631 Cosse male *terminal-maleFormula Deluxe 600. Formula Deluxe 700.; |
278000631 |
US $58.70 |
||
|
33
|
33
409207000
Logement male *housing-male
(3 Circuits) (GSE) Formula Deluxe 600. Formula Deluxe 700.; |
409207000 |
— | ||
|
34
|
34
409207600 Verrou male *lock-maleFormula Deluxe 600. Formula Deluxe 700.; |
409207600 |
US $42.30 |
||
|
35
|
35
293740005
Ruban de vinyl 3/4
Formula Deluxe 600. Formula Deluxe 700.; |
293740005 |
— | ||
|
36
|
36
293750001 Tie rap 94mm *tie-rap 94mmFormula Deluxe 600. Formula Deluxe 700.; |
293750001 |
US $66.50 |
||
|
37
|
37
276000048 Boyau 6mm. *hose-6mm.Formula Deluxe 600. Formula Deluxe 700.; |
276000048 |
US $121.95 |
||
