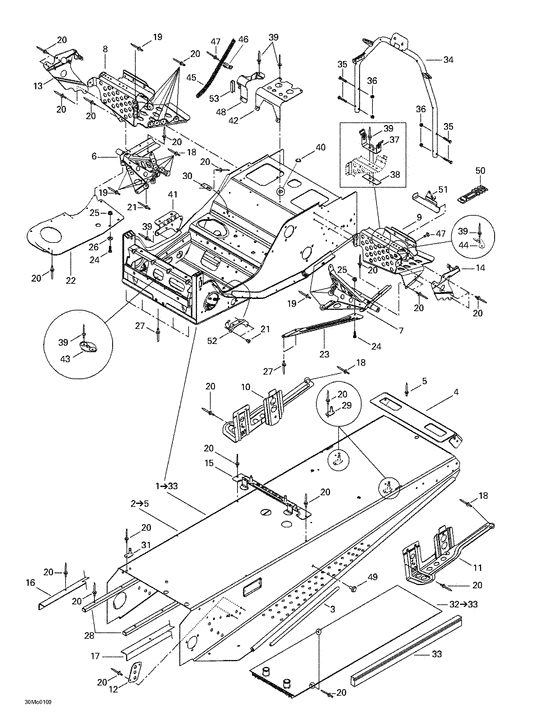

09- frame and accessories Diagram Bombardier Formula
- Year
- 2001
- Sales region
- General
- Model
- Formula Deluxe
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
518322488
Chassis *frame
Includes 1 - 33.; |
518322488 |
— | ||
|
2
|
2
518322534
Tunnel forme *frame-forming
Includes 2 - 5.; |
518322534 |
— | ||
|
3
|
3
518304746 Renf.marche-pie*reinf.-foot. |
518304746 |
US $31.59 |
||
|
4
|
4
518321303 Capuchon arr. *cap-rear |
518321303 |
US $54.03 |
||
|
5
|
5
390402200
Rivet-pop 3/16 *rivet-pop 3/16
|
390402200 |
— | ||
| replacement | |||||
|
5
|
5
293150293 Rivet-pop 3/16 *rivet-pop 3/16 |
293150293 |
US $24 |
||
|
6
|
6
518320506
Support droit *rh.support
|
518320506 |
— | ||
|
7
|
7
518320507 Support gauche *lh.support |
518320507 |
US $138.69 |
||
|
8
|
8
518322393
Repose-pied dr.*rh.footrest
|
518322393 |
— | ||
| replacement | |||||
|
8
|
8
518323563
Repose-pied dr.*rh.footrest
|
518323563 |
— | ||
|
9
|
9
518322394
Repose-pied ga.*lh.footrest
|
518322394 |
— | ||
| replacement | |||||
|
9
|
9
518323564 Repose-pied ga.*lh.footrest |
518323564 |
US $76.45 |
||
|
10
|
10
518319742 Attache susp.dr*brkt-slide rh |
518319742 |
US $59.13 |
||
|
11
|
11
518319743
Attache susp.ga*bracket-slide lh
|
518319743 |
— | ||
|
12
|
12
518201321 Plaque renfort *plate-reinf. |
518201321 |
US $8.38 |
||
|
13
|
13
518321305 Renf.rep.-pi.dr*reinf.-footrest rh |
518321305 |
US $16.76 |
||
|
14
|
14
518321307 Renf.rep.-pi.ga*reinf.-footrest lh |
518321307 |
US $16.76 |
||
|
15
|
15
518321510 Att.reserv.p. *brkt-tank paint |
518321510 |
US $23.41 |
||
|
16
|
16
518321561
Renf.tunnel dr.*reinf-frame rh
|
518321561 |
— | ||
|
17
|
17
518321562
Renf.tunnel ga.*reinf-frame lh
|
518321562 |
— | ||
|
18
|
18
390909200 Rivet avex *rivet avex |
390909200 |
US $19.50 |
||
|
19
|
19
390909100 Rivet avex *rivet avex |
390909100 |
US $19.50 |
||
|
20
|
20
390402200
Rivet-pop 3/16 *rivet-pop 3/16
|
390402200 |
— | ||
| replacement | |||||
|
20
|
20
293150293 Rivet-pop 3/16 *rivet-pop 3/16 |
293150293 |
US $24 |
||
|
21
|
21
390402300 Rivet-pop 3/16 *rivet-pop 3/16 |
390402300 |
US $50 |
||
|
22
|
22
518319760
Plaque coque dr*plate-pan bott.rh
|
518319760 |
— | ||
|
23
|
23
518322119 Plaque renf.ga.*plate-reinf.lh |
518322119 |
US $14.67 |
||
|
24
|
24
207152044 Screw-hex.cap din.933 |
207152044 |
US $11.70 |
||
|
25
|
25
233251414 Nut-flange elastic din.6926 |
233251414 |
US $5.36 |
||
|
26
|
26
391301700
Rondelle *washer
|
391301700 |
— | ||
|
28
|
28
518321543
Protect. tunnel*protect.-frame
|
518321543 |
— | ||
|
29
|
29
518319730
Attache siege s*brkt-seat weld
|
518319730 |
— | ||
| replacement | |||||
|
29
|
29
518323321 Attache siege s*seat bracke weld |
518323321 |
US $11.49 |
||
|
30
|
30
518322391
Attache doub.so*bracket double weld
|
518322391 |
— | ||
|
31
|
31
518321604
Guide soude *guide-weld.
|
518321604 |
— | ||
|
32
|
32
517296300
Radiateur arr.s*rad.-rear weld.
Includes 32 - 33.; |
517296300 |
— | ||
|
33
|
33
518321655
Protecteur *protector
|
518321655 |
— | ||
| replacement | |||||
|
33
|
33
415012300 Protecteur *protector |
415012300 |
US $18.33 |
||
|
34
|
34
518321957
Supp.guidon sou*supp-handle weld.
|
518321957 |
— | ||
| replacement | |||||
|
34
|
34
518322755
Supp.guidon sou*supp-handle weld.
|
518322755 |
— | ||
|
35
|
35
207663544 Screw-hex.flange din.6921 |
207663544 |
US $29.25 |
||
|
36
|
36
233261414 Nut-flange elastic din.6926 |
233261414 |
US $20.10 |
||
|
37
|
37
518202100 Attache gard.co*brkt-guard belt |
518202100 |
US $15.73 |
||
|
38
|
38
518207500 Renfort *reinforcement |
518207500 |
US $8.38 |
||
|
39
|
39
390402200
Rivet-pop 3/16 *rivet-pop 3/16
|
390402200 |
— | ||
| replacement | |||||
|
39
|
39
293150293 Rivet-pop 3/16 *rivet-pop 3/16 |
293150293 |
US $24 |
||
|
40
|
40
414859400 Bouchon *cap |
414859400 |
US $30.10 |
||
|
41
|
41
518206300
Support silenc.*support-muffler
|
518206300 |
— | ||
| replacement | |||||
|
41
|
41
518322635
Support silenc.*support-muffler
|
518322635 |
— | ||
|
42
|
42
518310400 Supp.silenc.adm*supp-air intake |
518310400 |
US $13.21 |
||
|
43
|
43
518201307
Plaque att.soud*plate-brkt weld
|
518201307 |
— | ||
|
44
|
44
518322031 Attache trousse*bracket-tool kit |
518322031 |
US $5.07 |
||
|
45
|
45
518321569 Guide corde *guide-rope |
518321569 |
US $11.49 |
||
|
46
|
46
518321570 Attache collier*open clamp |
518321570 |
US $9.61 |
||
|
47
|
47
390406500 Rivet-pop 3/16 *rivet-pop 3/16 |
390406500 |
US $58.50 |
||
|
48
|
48
518319762
Support boyaux *support-hose
|
518319762 |
— | ||
| replacement | |||||
|
48
|
48
518322699
Support boyaux *support-hose
|
518322699 |
— | ||
|
49
|
49
518321954 Attache panneau*panel-fastener |
518321954 |
US $48.05 |
||
|
50
|
50
570069700
Loquet *latch
|
570069700 |
— | ||
|
51
|
51
518321999
Support trousse*support-tool kit
|
518321999 |
— | ||
|
52
|
52
515175254
Support cablage*support-cable
|
515175254 |
— | ||
|
53
|
53
271000110 Moul.protect. *trim-protect. |
271000110 |
US $22.93 |
||
