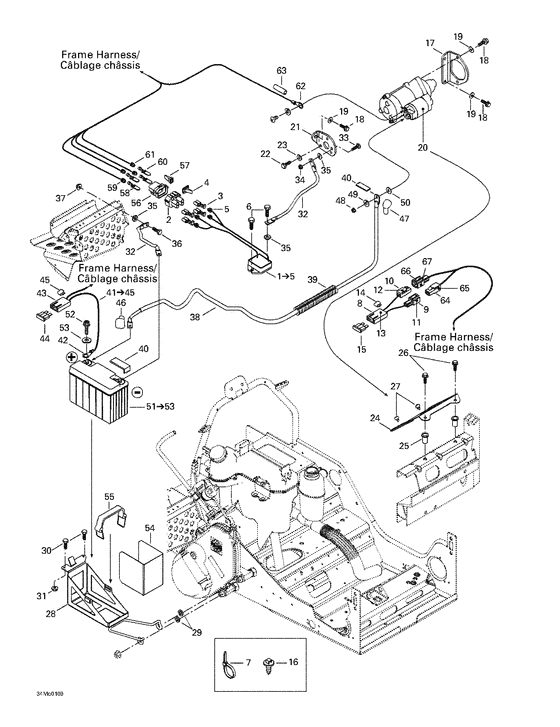

10- battery and starter Diagram Bombardier Formula
- Year
- 2001
- Sales region
- General
- Model
- Formula Deluxe
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
293750009 Tie rap 173mm *tie-rap 173mm |
293750009 |
US $6.70 |
||
|
|
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
|
515175561
Deflecteur *deflector
Formula Deluxe 700.; |
515175561 |
— | ||
|
|
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
|
|
515175220 Tie rap *tie-rap |
515175220 |
US $9.90 |
||
|
|
515175556
Sup.batterie so*sup.battery weld
Formula Deluxe 700.; |
515175556 |
— | ||
|
|
515175560
Batterie 16 amp*battery-16 amp
Formula Deluxe 700.; |
515175560 |
— | ||
| replacements | |||||
|
|
410301203 Batterie ytx20lbs*battery18amps(wet)Formula Deluxe 700.; |
410301203 |
US $190.18 |
||
|
|
515175643 Deflecteur *deflectorFormula Deluxe 700.; |
515175643 |
US $14.67 |
||
|
|
515175848
Support batter.*battery support
Formula Deluxe 700.; |
515175848 |
— | ||
|
1
|
1
515175217
Regu.tension *regulator-volt
Includes 1 - 5.; |
515175217 |
— | ||
|
2
|
2
409208000
Cogement femel.*housing-femal.
|
409208000 |
— | ||
|
3
|
3
278000994 Cosse femelle *terminal-femal |
278000994 |
US $15.55 |
||
|
4
|
4
409013400
New Genuine Part
|
409013400 |
— | ||
|
5
|
5
278000996 .joint de fil *seal |
278000996 |
US $19.45 |
||
|
6
|
6
210261680 Screw-forming hex.hd.fl.gm6174m |
210261680 |
US $13.90 |
||
|
7
|
7
293750001 Tie rap 94mm *tie-rap 94mm |
293750001 |
US $66.50 |
||
|
8
|
8
409004000 Porte fusible *holder-fuse |
409004000 |
US $7.31 |
||
|
9
|
9
515175509 Logement male *housing-male |
515175509 |
US $6.26 |
||
|
10
|
10
515175510 Logement femel.*housing-female |
515175510 |
US $6.26 |
||
|
11
|
11
515175273 Cosse male *terminal-male |
515175273 |
US $73.10 |
||
|
12
|
12
515175282 Cosse femelle *treminal-femal. |
515175282 |
US $96.10 |
||
|
13
|
13
409011600 Cosse femelle *terminal-femal. |
409011600 |
US $181 |
||
|
14
|
14
409014200 Clip *clip |
409014200 |
US $52 |
||
|
15
|
15
278001143
Fusible 20 amp.*fuse-20 amp.
|
278001143 |
— | ||
| replacement | |||||
|
15
|
15
409003900 Fusible 20a *fuse 20a |
409003900 |
US $21.15 |
||
|
16
|
16
293730018 Dard d ancrage *dart-mount |
293730018 |
US $4.95 |
||
|
17
|
17
515175142
Attache demar. *bracket-start.
|
515175142 |
— | ||
|
18
|
18
207582044 Screw-hex.flange din.6921 s.grip |
207582044 |
US $21.80 |
||
|
19
|
19
250200008 Washer-flat din.125a teflon-coat |
250200008 |
US $24.55 |
||
|
20
|
20
515175565
Demarreur *starter
|
515175565 |
— | ||
| replacement | |||||
|
20
|
20
861510400
Ens.remp.dema. *kit-starter
|
861510400 |
— | ||
|
21
|
21
515175441
Supp.demar.mag.*supp.-star.mag
|
515175441 |
— | ||
|
22
|
22
207361644 Screw-hex.scotch grip din.933 |
207361644 |
US $28.50 |
||
|
23
|
23
234061410 Washer-flat m6 din.125a |
234061410 |
US $17.20 |
||
|
24
|
24
515175536
Protecteur *protector
|
515175536 |
— | ||
|
25
|
25
415107300
Ajout *insert
|
415107300 |
— | ||
|
26
|
26
207661644 Screw-hex.flange din.6921 |
207661644 |
US $23.75 |
||
|
27
|
27
293830005 Butee *rubber stopper |
293830005 |
US $46.85 |
||
|
28
|
28
515175472
Sup.batterie so*sup.battery weld
Formula Deluxe 500. Formula Deluxe 600.; |
515175472 |
— | ||
|
29
|
29
503175800 Rondelle *washer |
503175800 |
US $42.30 |
||
|
30
|
30
207151244 Screw-hex.cap din.933 |
207151244 |
US $11.70 |
||
|
31
|
31
233251414 Nut-flange elastic din.6926 |
233251414 |
US $5.36 |
||
|
32
|
32
515175483 Fil de masse *wire-ground |
515175483 |
US $19.92 |
||
|
33
|
33
207762044 Bolt-carriage din.603 |
207762044 |
US $20.10 |
||
|
34
|
34
233261414 Nut-flange elastic din.6926 |
233261414 |
US $20.10 |
||
|
35
|
35
250200000
Washer-lock serrated int.& ext.m6
|
250200000 |
— | ||
| replacement | |||||
|
35
|
35
250200041 Washer-lock serrated int.ext.m6 |
250200041 |
US $14.80 |
||
|
36
|
36
207161644 Screw-hex.cap din.933 |
207161644 |
US $9.50 |
||
|
37
|
37
233261414 Nut-flange elastic din.6926 |
233261414 |
US $20.10 |
||
|
38
|
38
515175482
Fil de batterie
|
515175482 |
— | ||
|
39
|
39
409901700 Gaine 09mm i.d.*tubing-09mm i.d. |
409901700 |
US $83.80 |
||
|
40
|
40
293740005
Ruban de vinyl 3/4
|
293740005 |
— | ||
|
41
|
41
515175489 Fil fusible bat*wire-fuse batt.Includes 41 - 45.; |
515175489 |
US $14.67 |
||
|
42
|
42
278000992 Cosse a anneau *barrel-open |
278000992 |
US $28.40 |
||
|
43
|
43
409004000 Porte fusible *holder-fuse |
409004000 |
US $7.31 |
||
|
44
|
44
410917200 Fusible 30 amp *fuse 30 amp |
410917200 |
US $21.15 |
||
|
45
|
45
409014200 Clip *clip |
409014200 |
US $52 |
||
|
46
|
46
570151000 Capuchon prot. *cap-protection |
570151000 |
US $17.82 |
||
|
47
|
47
278000020 Capuchon batt. *cap-wire batt. |
278000020 |
US $30.35 |
||
|
48
|
48
232081414 Nut-hexagonal din.934 |
232081414 |
US $9.40 |
||
|
49
|
49
234181401 Washer-lock din*.127b |
234181401 |
US $59.50 |
||
|
50
|
50
234081410 Washer-flat din.125a |
234081410 |
US $11.70 |
||
|
51
|
51
515175481
Batterie 13 amp*battery-13 amp
Includes 51 - 53. Formula Deluxe 500. Formula Deluxe 600.; |
515175481 |
— | ||
| replacements | |||||
|
51
|
51
515176044 Sangle batterie*strap-batteryIncludes 51 - 53. Formula Deluxe 500. Formula Deluxe 600.; |
515176044 |
US $19.47 |
||
|
51
|
51
410301203 Batterie ytx20lbs*battery18amps(wet)Includes 51 - 53. Formula Deluxe 500. Formula Deluxe 600.; |
410301203 |
US $190.18 |
||
|
51
|
51
515175848
Support batter.*battery support
Includes 51 - 53. Formula Deluxe 500. Formula Deluxe 600.; |
515175848 |
— | ||
|
51
|
51
515175643 Deflecteur *deflectorIncludes 51 - 53. Formula Deluxe 500. Formula Deluxe 600.; |
515175643 |
US $14.67 |
||
|
52
|
52
207161260 Screw-hex.cap din.933a2 |
207161260 |
US $8.15 |
||
|
53
|
53
234061410 Washer-flat m6 din.125a |
234061410 |
US $17.20 |
||
|
54
|
54
515175363
Deflecteur *deflector
Formula Deluxe 500. Formula Deluxe 600.; |
515175363 |
— | ||
|
55
|
55
515175475
Sangle batterie*strap-battery
|
515175475 |
— | ||
|
56
|
56
409207700
Logement male *housing-male
|
409207700 |
— | ||
|
57
|
57
409013100
Verrou male *lock-male
|
409013100 |
— | ||
|
58
|
58
409010900
Cosse male *terminal-male
|
409010900 |
— | ||
|
59
|
59
278001223 Joint de fil *seal-wire |
278001223 |
US $13.35 |
||
|
60
|
60
409013000
Cosse male *terminal-male
|
409013000 |
— | ||
|
61
|
61
278000996 .joint de fil *seal |
278000996 |
US $19.45 |
||
|
62
|
62
515175504 Cosse a oeillet*terminal-ring |
515175504 |
US $48.80 |
||
|
63
|
63
415079200
Boyau *hose
|
415079200 |
— | ||
|
64
|
64
515175509 Logement male *housing-male |
515175509 |
US $6.26 |
||
|
65
|
65
515175273 Cosse male *terminal-male |
515175273 |
US $73.10 |
||
|
66
|
66
515175510 Logement femel.*housing-female |
515175510 |
US $6.26 |
||
|
67
|
67
515175282 Cosse femelle *treminal-femal. |
515175282 |
US $96.10 |
||
