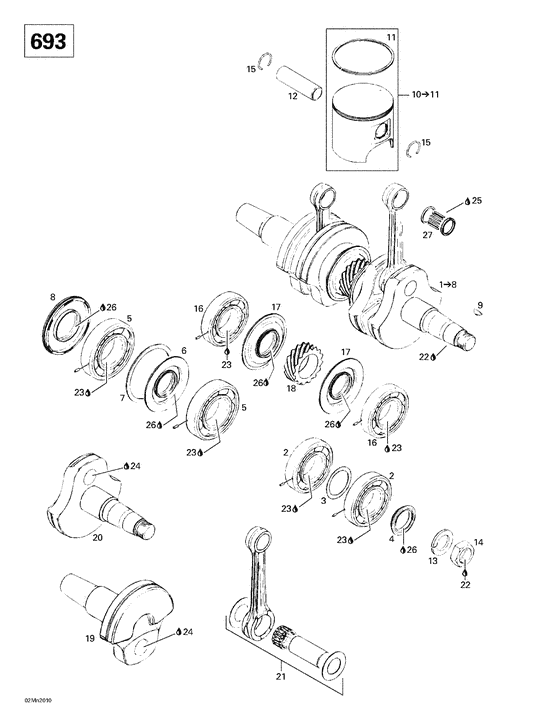

01- crankshaft and pistons 2 Diagram Bombardier Formula
- Year
- 2000
- Sales region
- General
- Model
- Formula Deluxe
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
420888284
Ens.tige rep. *kit-rod repair
Formula Deluxe 700.; |
420888284 |
— | ||
| replacement | |||||
|
|
420887988
Tige rep.pto. *rod-repair pto.
Formula Deluxe 700.; |
420887988 |
— | ||
|
1
|
1
420888282
Vilebrequin *crankshaft
Includes 1 - 9. Formula Deluxe 700.; |
420888282 |
— | ||
|
2
|
2
420832575 Roulement bille*ball bearingFormula Deluxe 700.; |
420832575 |
US $64.48 |
||
|
3
|
3
420427502 Rondelle ajus *washer-adj.Formula Deluxe 700.; |
420427502 |
US $16.30 |
||
|
4
|
4
420931790
Anneau etanche *seal-oil
Formula Deluxe 700.; |
420931790 |
— | ||
|
5
|
5
420832600 Roulement bille*ball bearingFormula Deluxe 700.; |
420832600 |
US $73.41 |
||
|
6
|
6
420931910 Anneau etanche *seal-oilFormula Deluxe 700.; |
420931910 |
US $33.61 |
||
|
7
|
7
420926190 Rondelle *washerFormula Deluxe 700.; |
420926190 |
US $12.55 |
||
|
8
|
8
420931280 Anneau etanche *seal-oilFormula Deluxe 700.; |
420931280 |
US $58.09 |
||
|
9
|
9
420246015 Clavette *key-woodruffFormula Deluxe 700.; |
420246015 |
US $3.60 |
||
|
10
|
10
420888293
Piston 77,88 *piston-assy 77,88
Includes 10 - 11. Formula Deluxe 700.; |
420888293 |
— | ||
| replacements | |||||
|
10
|
10
420845106 Circlip piston *circlip-pistonIncludes 10 - 11. Formula Deluxe 700.; |
420845106 |
from US $6.66 |
||
|
10
|
10
420888298
Piston 77,88 *piston-assy 77,88
Includes 10 - 11. Formula Deluxe 700.; |
420888298 |
— | ||
|
11
|
11
420815222
Segment semi-tr*ring-semi trap
Formula Deluxe 700.; |
420815222 |
— | ||
|
12
|
12
420916370
Axe de piston *pin-gudgeon
Formula Deluxe 700.; |
420916370 |
— | ||
| replacement | |||||
|
12
|
12
420916371 Axe de piston *pin-gudgeonFormula Deluxe 700.; |
420916371 |
US $71.30 |
||
|
13
|
13
420945759 Rondelle-frein *washer-lock 22Formula Deluxe 700.; |
420945759 |
US $24.50 |
||
|
14
|
14
420842230
Nut-hex.m22 x 1,5
Formula Deluxe 700.; |
420842230 |
— | ||
| replacement | |||||
|
14
|
14
420842234
Nut-hex.m22 x 1,5
Formula Deluxe 700.; |
420842234 |
— | ||
|
15
|
15
420845102 Circlip piston *circlip-pistonFormula Deluxe 700.; |
420845102 |
US $9.70 |
||
|
16
|
16
420832575 Roulement bille*ball bearingFormula Deluxe 700.; |
420832575 |
US $64.48 |
||
|
17
|
17
290931455
New Genuine Part
Formula Deluxe 700.; |
290931455 |
— | ||
|
18
|
18
420834355 Engrenage cent.*gear-centralFormula Deluxe 700.; |
420834355 |
US $100.93 |
||
|
19
|
19
420818706
Vilebrequin pto*crankshaft-pto
Formula Deluxe 700.; |
420818706 |
— | ||
|
20
|
20
420818736
Crankshaft (mag side)
Formula Deluxe 700.; |
420818736 |
— | ||
|
21
|
21
420888283
Ens.tige rep. *kit-rod repair
Formula Deluxe 700.; |
420888283 |
— | ||
| replacement | |||||
|
21
|
21
420887989
Tige rep.mag. *rod-repair mag.
Formula Deluxe 700.; |
420887989 |
— | ||
|
22
|
22
293800060 Loctite 243 *loctite-243Formula Deluxe 700.; |
293800060 |
US $31.18 |
||
|
23
|
23
293800023
Loctite 767 lubrifiant antigrippage, 454 gr.
Formula Deluxe 700.; |
293800023 |
— | ||
|
24
|
24
413711400
Loctite 648 *loctite-648
Formula Deluxe 700.; |
413711400 |
— | ||
|
25
|
25
413802900
Huile 2t 12x1 min+r* oil 2t 12x1 mineral
Formula Deluxe 700.; |
413802900 |
— | ||
| replacement | |||||
|
25
|
25
293600117 Huile 2t 12x1 *oil 2t 12x1 mineralFormula Deluxe 700.; |
293600117 |
US $15.64 |
||
|
26
|
26
420899271 Graisse *greaseFormula Deluxe 700.; |
420899271 |
US $83.84 |
||
|
27
|
27
420832425
Roul.aiguille *needle bearing
Formula Deluxe 700.; |
420832425 |
— | ||
| replacement | |||||
|
27
|
27
420832445 Roul.aiguille *needle bearingFormula Deluxe 700.; |
420832445 |
US $33.20 |
||
