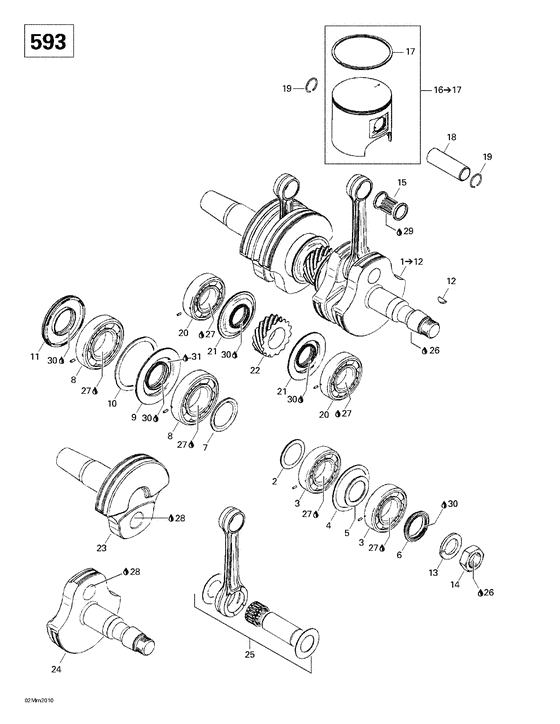

01- crankshaft and pistons Diagram Bombardier Formula
- Year
- 2000
- Sales region
- General
- Model
- Formula Deluxe
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
420886688
Piston *piston-assy
Formula Deluxe 600.; |
420886688 |
— | ||
| replacement | |||||
|
|
420889171
Piston 76,13 (0.25 O/S)
Formula Deluxe 600.; |
420889171 |
— | ||
|
|
420888254
Ens.tige rep. *kit-rod repair
Formula Deluxe 600.; |
420888254 |
— | ||
| replacement | |||||
|
|
420888754
Ens.tige rep. *kit-rod repair
Formula Deluxe 600.; |
420888754 |
— | ||
|
|
420815151
Segment semi-tr*ring-semi trap
Formula Deluxe 600.; |
420815151 |
— | ||
| replacement | |||||
|
|
420815156 Segment semi-tr*ring-semi trap 76.25 mmFormula Deluxe 600.; |
420815156 |
US $61.15 |
||
|
1
|
1
420888252
Vilebrequin *crankshaft
Includes 1 - 12. Formula Deluxe 600.; |
420888252 |
— | ||
| replacement | |||||
|
1
|
1
421000563 Vilebreq.refait*crank.rebuild 593 2000Includes 1 - 12. Formula Deluxe 600.; |
421000563 |
US $668.07 |
||
|
2
|
2
420827445 Bague ecart. *ring-distanceFormula Deluxe 600.; |
420827445 |
US $8.13 |
||
|
3
|
3
420832590 Roulement bille*ball bearingFormula Deluxe 600.; |
420832590 |
US $53.72 |
||
|
4
|
4
420827050 Disque retenue *disk-retainingFormula Deluxe 600.; |
420827050 |
US $7 |
||
|
5
|
5
420427684 Rondelle ajus *washer-adj.Formula Deluxe 600.; |
420427684 |
US $8.13 |
||
|
6
|
6
420931790
Anneau etanche *seal-oil
Formula Deluxe 600.; |
420931790 |
— | ||
|
7
|
7
420827760 Bague ecart. *ring-distanceFormula Deluxe 600.; |
420827760 |
US $7 |
||
|
8
|
8
420832575 Roulement bille*ball bearingFormula Deluxe 600.; |
420832575 |
US $64.48 |
||
|
9
|
9
420931455 Anneau etanche *seal-oilFormula Deluxe 600.; |
420931455 |
US $39.07 |
||
|
10
|
10
420927710 Disque retenue *disk-retainingFormula Deluxe 600.; |
420927710 |
US $9.45 |
||
|
11
|
11
420831950
Anneau etanche *seal-oil
Formula Deluxe 600.; |
420831950 |
— | ||
| replacement | |||||
|
11
|
11
420831952 Anneau etanche *seal-oilFormula Deluxe 600.; |
420831952 |
US $21.42 |
||
|
12
|
12
420246015 Clavette *key-woodruffFormula Deluxe 600.; |
420246015 |
US $3.60 |
||
|
13
|
13
420945759 Rondelle-frein *washer-lock 22Formula Deluxe 600.; |
420945759 |
US $24.50 |
||
|
14
|
14
420842230
Nut-hex.m22 x 1,5
Formula Deluxe 600.; |
420842230 |
— | ||
| replacement | |||||
|
14
|
14
420842234
Nut-hex.m22 x 1,5
Formula Deluxe 600.; |
420842234 |
— | ||
|
15
|
15
420832425
Roul.aiguille *needle bearing
Formula Deluxe 600.; |
420832425 |
— | ||
| replacement | |||||
|
15
|
15
420832445 Roul.aiguille *needle bearingFormula Deluxe 600.; |
420832445 |
US $33.20 |
||
|
16
|
16
420886687
Piston 75,88 *piston-assy 75,88
Includes 16 - 17. Formula Deluxe 600.; |
420886687 |
— | ||
| replacement | |||||
|
16
|
16
420889173 PISTON ASS#Y, 75.88 MM, STANDARDIncludes 16 - 17. Formula Deluxe 600.; |
420889173 |
US $203.58 |
||
|
17
|
17
420815150
Segment semi-tr*ring-semi trap
Formula Deluxe 600.; |
420815150 |
— | ||
| replacement | |||||
|
17
|
17
420815155 Segment semi-tr*ring-semi trap 76 mmFormula Deluxe 600.; |
420815155 |
US $63.16 |
||
|
18
|
18
420916410
Axe de piston *pin-gudgeon
Formula Deluxe 600.; |
420916410 |
— | ||
| replacement | |||||
|
18
|
18
420916412 Axe de piston *piston pinFormula Deluxe 600.; |
420916412 |
US $41.02 |
||
|
19
|
19
420845102 Circlip piston *circlip-pistonFormula Deluxe 600.; |
420845102 |
US $9.70 |
||
|
20
|
20
420832590 Roulement bille*ball bearingFormula Deluxe 600.; |
420832590 |
US $53.72 |
||
|
21
|
21
420931940 Anneau etanche *seal-oilFormula Deluxe 600.; |
420931940 |
US $34.10 |
||
|
22
|
22
420834350 Engrenage cent.*gear-centralFormula Deluxe 600.; |
420834350 |
US $92.77 |
||
|
23
|
23
420818664
Vilebrequin pto*crankshaft-pto
Formula Deluxe 600.; |
420818664 |
— | ||
|
24
|
24
420818693
Vilebrequin mag*crankshaft-mag
Formula Deluxe 600.; |
420818693 |
— | ||
|
25
|
25
420888253
Ens.tige rep. *kit-rod repair
Formula Deluxe 600.; |
420888253 |
— | ||
| replacement | |||||
|
25
|
25
420890973 Ens.tige rep. *kit-rod repairFormula Deluxe 600.; |
420890973 |
US $324.50 |
||
|
26
|
26
293800060 Loctite 243 *loctite-243Formula Deluxe 600.; |
293800060 |
US $31.18 |
||
|
27
|
27
293800023
Loctite 767 lubrifiant antigrippage, 454 gr.
Formula Deluxe 600.; |
293800023 |
— | ||
|
28
|
28
413711400
Loctite 648 *loctite-648
Formula Deluxe 600.; |
413711400 |
— | ||
|
29
|
29
413802900
Huile 2t 12x1 min+r* oil 2t 12x1 mineral
Formula Deluxe 600.; |
413802900 |
— | ||
| replacement | |||||
|
29
|
29
293600117 Huile 2t 12x1 *oil 2t 12x1 mineralFormula Deluxe 600.; |
293600117 |
US $15.64 |
||
|
30
|
30
420899271 Graisse *greaseFormula Deluxe 600.; |
420899271 |
US $83.84 |
||
|
31
|
31
293550021 Graisse isoflex*grease-isoflexFormula Deluxe 600.; |
293550021 |
US $70.19 |
||
