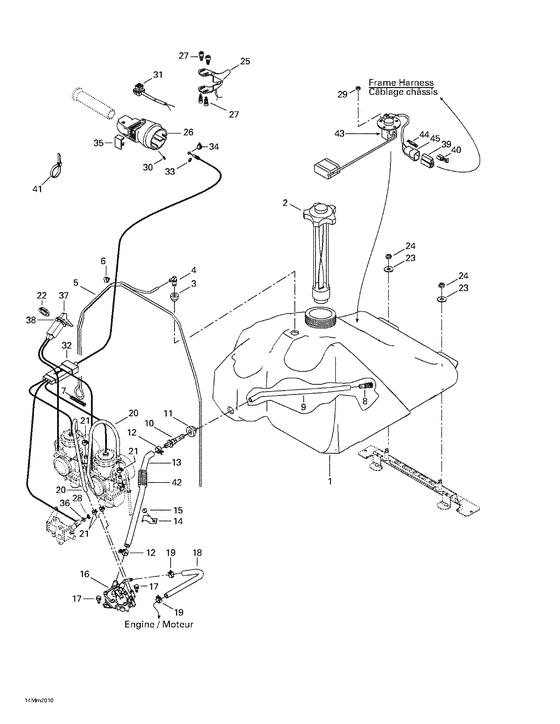

02- fuel system Diagram Bombardier Formula
- Year
- 2000
- Sales region
- General
- Model
- Formula Deluxe
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
513032988
Reservoir essen*tank-fuel
|
513032988 |
— | ||
|
2
|
2
572039600 Bouchon *cap |
572039600 |
US $28.59 |
||
|
3
|
3
513032908 Passe-fils *grommet |
513032908 |
US $98.80 |
||
|
4
|
4
414814100 Raccord male *connector-male |
414814100 |
US $14.35 |
||
|
5
|
5
415080100 Boyau amorce *line-primer |
415080100 |
US $75.90 |
||
|
6
|
6
513032923 Bride de tube *clamp-tube |
513032923 |
US $8.55 |
||
|
8
|
8
414872100 Crepine *filter-fuel |
414872100 |
US $14.03 |
||
|
9
|
9
415005700 Boyau polyure *hose-polyurethane |
415005700 |
US $9.78 |
||
|
10
|
10
414872700 Raccord male *connector-male |
414872700 |
US $9.80 |
||
|
11
|
11
570273900 Passe-fils *grommet |
570273900 |
US $11.76 |
||
|
12
|
12
513032979 Bride a ressort*clamp-spring |
513032979 |
US $194.50 |
||
|
13
|
13
513032903 Boyau forme *hose-formed |
513032903 |
US $29.53 |
||
|
14
|
14
415018200 Pince *clip |
415018200 |
US $3.83 |
||
|
15
|
15
390406500 Rivet-pop 3/16 *rivet-pop 3/16 |
390406500 |
US $58.50 |
||
|
16
|
16
403901803
Pompe a essence*pump-fuel
|
403901803 |
— | ||
| replacement | |||||
|
16
|
16
403901807 Pompe a essence*pump-fuel |
403901807 |
US $126.45 |
||
|
17
|
17
210361280 Screw-forming hex.hd.fl.din.7500 |
210361280 |
US $9.70 |
||
|
18
|
18
415079800
Boyau 1/4 i.d. *hose-1/4 i.d.
|
415079800 |
— | ||
|
19
|
19
414415200 Bride a ressort*clamp-spring |
414415200 |
US $11.70 |
||
|
20
|
20
415117800 Boyau forme *tube-formed |
415117800 |
US $13.21 |
||
|
21
|
21
414420700 Bride a ressort*clamp-spring |
414420700 |
US $9.50 |
||
|
22
|
22
512059094 Ecrou plastique*nut-plastic |
512059094 |
US $5.87 |
||
|
23
|
23
234082410 Washer-flat din.9021b |
234082410 |
US $18.40 |
||
|
24
|
24
232581414 Nut-stop elastic din.985 |
232581414 |
US $7.30 |
||
|
25
|
25
512059204
Manette ass. *handle-assy
|
512059204 |
— | ||
|
26
|
26
512059243 Logement acc. *housing-throttle rew. |
512059243 |
US $30.57 |
||
|
27
|
27
732601143 Screw-shoulder |
732601143 |
US $38.90 |
||
|
28
|
28
414753500 Circlip-type bs n |
414753500 |
US $9.20 |
||
|
29
|
29
232551414 Nut-stop elastic din.985 |
232551414 |
US $11.20 |
||
|
30
|
30
414440800 Screw-set din 916-a2 |
414440800 |
US $19.45 |
||
|
31
|
31
515175410
Inter.urgence *switch-kill
|
515175410 |
— | ||
| replacement | |||||
|
31
|
31
548872536
Inter.urgence *switch-kill
|
548872536 |
— | ||
|
32
|
32
512059188 Cable accelerat*cable-throttle |
512059188 |
US $118.29 |
||
|
33
|
33
414274500 Circlip-black chromate |
414274500 |
US $11.70 |
||
|
34
|
34
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
35
|
35
572100901 Couv.interrupt.*cover-switch |
572100901 |
US $14.35 |
||
|
36
|
36
414753300
Rondelle *washer
|
414753300 |
— | ||
|
37
|
37
512059203 Cable etrang. *cable-chokeIncludes 37 - 38.; |
512059203 |
US $82.57 |
||
|
38
|
38
394103300
Washer-lock int.teeth
|
394103300 |
— | ||
|
39
|
39
409204600 Logement femel.*housing-female |
409204600 |
US $40.50 |
||
|
40
|
40
561503100 Cosse femelle *terminal-femal. |
561503100 |
US $52 |
||
|
41
|
41
293750001 Tie rap 94mm *tie-rap 94mm |
293750001 |
US $66.50 |
||
|
42
|
42
415080000
Gaine *protector tube
|
415080000 |
— | ||
|
43
|
43
515175170
Capt.niv.ess. *sensor-fuel
Includes 43 - 45.; |
515175170 |
— | ||
|
44
|
44
409204500
Logement male *housing-male
|
409204500 |
— | ||
|
45
|
45
561503400
Cosse male *terminal-male
|
561503400 |
— | ||
| replacement | |||||
|
45
|
45
409210000 Cosse male *terminal-male |
409210000 |
US $58.30 |
||
