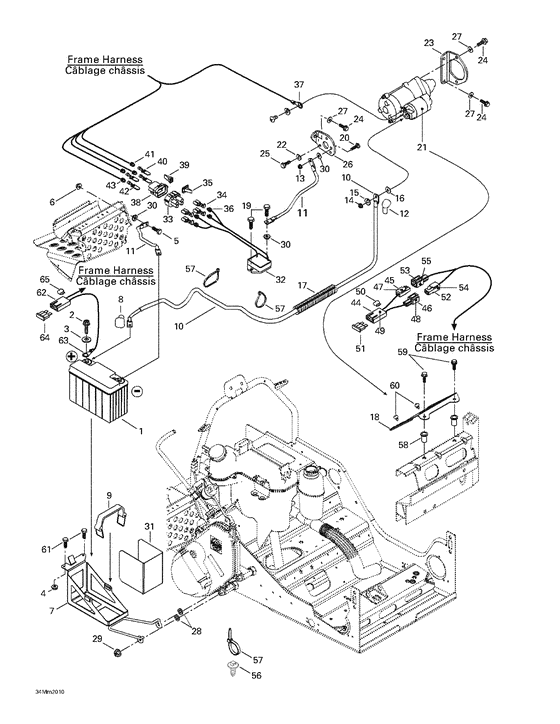

10- battery and starter Diagram Bombardier Formula
- Year
- 2000
- Sales region
- General
- Model
- Formula Deluxe
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
515175481
Batterie 13 amp*battery-13 amp
Includes 1 - 3.; |
515175481 |
— | ||
| replacements | |||||
|
1
|
1
515176044 Sangle batterie*strap-batteryIncludes 1 - 3.; |
515176044 |
US $19.47 |
||
|
1
|
1
410301203 Batterie ytx20lbs*battery18amps(wet)Includes 1 - 3.; |
410301203 |
US $190.18 |
||
|
1
|
1
515175848
Support batter.*battery support
Includes 1 - 3.; |
515175848 |
— | ||
|
1
|
1
515175643 Deflecteur *deflectorIncludes 1 - 3.; |
515175643 |
US $14.67 |
||
|
4
|
4
233251414 Nut-flange elastic din.6926 |
233251414 |
US $5.36 |
||
|
5
|
5
207161644 Screw-hex.cap din.933 |
207161644 |
US $9.50 |
||
|
6
|
6
233261414 Nut-flange elastic din.6926 |
233261414 |
US $20.10 |
||
|
7
|
7
515175472
Sup.batterie so*sup.battery weld
|
515175472 |
— | ||
|
8
|
8
570151000 Capuchon prot. *cap-protection |
570151000 |
US $17.82 |
||
|
9
|
9
515175475
Sangle batterie*strap-battery
|
515175475 |
— | ||
|
10
|
10
515175482
Fil de batterie
|
515175482 |
— | ||
|
11
|
11
515175483 Fil de masse *wire-ground |
515175483 |
US $19.92 |
||
|
12
|
12
278000020 Capuchon batt. *cap-wire batt. |
278000020 |
US $30.35 |
||
|
13
|
13
233261414 Nut-flange elastic din.6926 |
233261414 |
US $20.10 |
||
|
14
|
14
232081414 Nut-hexagonal din.934 |
232081414 |
US $9.40 |
||
|
15
|
15
234181401 Washer-lock din*.127b |
234181401 |
US $59.50 |
||
|
16
|
16
234081410 Washer-flat din.125a |
234081410 |
US $11.70 |
||
|
17
|
17
409901700 Gaine 09mm i.d.*tubing-09mm i.d. |
409901700 |
US $83.80 |
||
|
18
|
18
515175536
Protecteur *protector
|
515175536 |
— | ||
|
19
|
19
210261680 Screw-forming hex.hd.fl.gm6174m |
210261680 |
US $13.90 |
||
|
20
|
20
207762044 Bolt-carriage din.603 |
207762044 |
US $20.10 |
||
|
21
|
21
515175438
Demarreur *starter
|
515175438 |
— | ||
| replacement | |||||
|
21
|
21
861510400
Ens.remp.dema. *kit-starter
|
861510400 |
— | ||
|
22
|
22
234061410 Washer-flat m6 din.125a |
234061410 |
US $17.20 |
||
|
23
|
23
515175142
Attache demar. *bracket-start.
|
515175142 |
— | ||
|
24
|
24
207582044 Screw-hex.flange din.6921 s.grip |
207582044 |
US $21.80 |
||
|
25
|
25
207361644 Screw-hex.scotch grip din.933 |
207361644 |
US $28.50 |
||
|
26
|
26
515175441
Supp.demar.mag.*supp.-star.mag
|
515175441 |
— | ||
|
27
|
27
250200008 Washer-flat din.125a teflon-coat |
250200008 |
US $24.55 |
||
|
28
|
28
503175800 Rondelle *washer |
503175800 |
US $42.30 |
||
|
29
|
29
233201414 Nut-flange elastic din.6926 |
233201414 |
US $20.10 |
||
|
30
|
30
250200000
Washer-lock serrated int.& ext.m6
|
250200000 |
— | ||
| replacement | |||||
|
30
|
30
250200041 Washer-lock serrated int.ext.m6 |
250200041 |
US $14.80 |
||
|
31
|
31
515175363
Deflecteur *deflector
|
515175363 |
— | ||
|
32
|
32
515175217
Regu.tension *regulator-volt
Includes 32 - 36.; |
515175217 |
— | ||
|
33
|
33
409208000
Cogement femel.*housing-femal.
|
409208000 |
— | ||
|
34
|
34
278000994 Cosse femelle *terminal-femal |
278000994 |
US $15.55 |
||
|
35
|
35
409013400
New Genuine Part
|
409013400 |
— | ||
|
36
|
36
278000996 .joint de fil *seal |
278000996 |
US $19.45 |
||
|
37
|
37
515175504 Cosse a oeillet*terminal-ring |
515175504 |
US $48.80 |
||
|
38
|
38
409207700
Logement male *housing-male
|
409207700 |
— | ||
|
39
|
39
409013100
Verrou male *lock-male
|
409013100 |
— | ||
|
40
|
40
409010900
Cosse male *terminal-male
|
409010900 |
— | ||
|
41
|
41
409208300
Joint de fil *seal-wire
|
409208300 |
— | ||
| replacement | |||||
|
41
|
41
278001223 Joint de fil *seal-wire |
278001223 |
US $13.35 |
||
|
42
|
42
409013000
Cosse male *terminal-male
|
409013000 |
— | ||
|
43
|
43
278000996 .joint de fil *seal |
278000996 |
US $19.45 |
||
|
44
|
44
409004000 Porte fusible *holder-fuse |
409004000 |
US $7.31 |
||
|
45
|
45
515175509 Logement male *housing-male |
515175509 |
US $6.26 |
||
|
46
|
46
515175510 Logement femel.*housing-female |
515175510 |
US $6.26 |
||
|
47
|
47
515175273 Cosse male *terminal-male |
515175273 |
US $73.10 |
||
|
48
|
48
515175282 Cosse femelle *treminal-femal. |
515175282 |
US $96.10 |
||
|
49
|
49
409011600 Cosse femelle *terminal-femal. |
409011600 |
US $181 |
||
|
50
|
50
409014200 Clip *clip |
409014200 |
US $52 |
||
|
51
|
51
278001143
Fusible 20 amp.*fuse-20 amp.
|
278001143 |
— | ||
| replacement | |||||
|
51
|
51
409003900 Fusible 20a *fuse 20a |
409003900 |
US $21.15 |
||
|
52
|
52
515175509 Logement male *housing-male |
515175509 |
US $6.26 |
||
|
53
|
53
515175510 Logement femel.*housing-female |
515175510 |
US $6.26 |
||
|
54
|
54
515175273 Cosse male *terminal-male |
515175273 |
US $73.10 |
||
|
55
|
55
515175282 Cosse femelle *treminal-femal. |
515175282 |
US $96.10 |
||
|
56
|
56
293730018 Dard d ancrage *dart-mount |
293730018 |
US $4.95 |
||
|
57
|
57
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
58
|
58
415107300
Ajout *insert
|
415107300 |
— | ||
|
59
|
59
207661644 Screw-hex.flange din.6921 |
207661644 |
US $23.75 |
||
|
60
|
60
293830005 Butee *rubber stopper |
293830005 |
US $46.85 |
||
|
61
|
61
207151644 Screw-hex.cap din.933 |
207151644 |
US $11.70 |
||
|
62
|
62
409004000 Porte fusible *holder-fuse |
409004000 |
US $7.31 |
||
|
63
|
63
278000992 Cosse a anneau *barrel-open |
278000992 |
US $28.40 |
||
|
64
|
64
410917200 Fusible 30 amp *fuse 30 amp |
410917200 |
US $21.15 |
||
|
65
|
65
409014200 Clip *clip |
409014200 |
US $52 |
||
