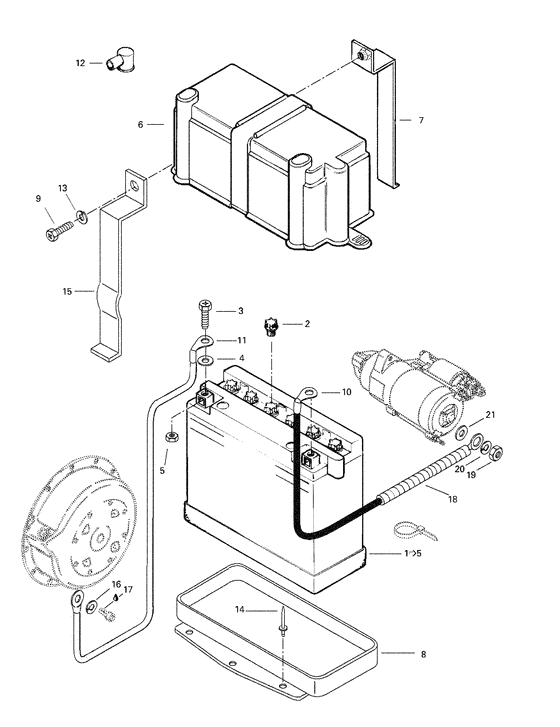

10- electrical system 2 Diagram Bombardier Formula
- Year
- 1998
- Sales region
- General
- Model
- Formula S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
410301100
Batterie *battery
Includes 1 - 5. Formula SE.; |
410301100 |
— | ||
| replacements | |||||
|
1
|
1
410301202
Coussin caout. *rubber boot (dry)
Includes 1 - 5. Formula SE.; |
410301202 |
— | ||
|
1
|
1
410301201 Batterie m2218y*battery (dry)Includes 1 - 5. Formula SE.; |
410301201 |
US $101.97 |
||
|
2
|
2
410300800
Bouchon batt. *cap-battery
Formula SE.; |
410300800 |
— | ||
|
3
|
3
222061665
Screw-hex.cap din.933
Formula SE.; |
222061665 |
— | ||
| replacement | |||||
|
3
|
3
207161644 Screw-hex.cap din.933Formula SE.; |
207161644 |
US $9.50 |
||
|
4
|
4
391302100 Washer-flat yicFormula SE.; |
391302100 |
US $10 |
||
|
5
|
5
228061045
Nut-hexagonal din.934
Formula SE.; |
228061045 |
— | ||
| replacement | |||||
|
5
|
5
232061414 Nut-hexagonal din.934Formula SE.; |
232061414 |
US $6.80 |
||
|
6
|
6
570022000
Couvercle batt.*cover-battery
Formula SE.; |
570022000 |
— | ||
|
7
|
7
517286000
Laniere soudee *strip-steel w.paint
Formula SE.; |
517286000 |
— | ||
|
8
|
8
517286200
Siege batterie *seat-battery
Formula SE.; |
517286200 |
— | ||
|
9
|
9
222052065
Screw-hex.cap din.933
Formula SE.; |
222052065 |
— | ||
| replacement | |||||
|
9
|
9
207152044 Screw-hex.cap din.933Formula SE.; |
207152044 |
US $11.70 |
||
|
10
|
10
515166700
Fil de batterie*wire-battery
Formula SE.; |
515166700 |
— | ||
|
11
|
11
515157000
New Genuine Part
Formula SE.; |
515157000 |
— | ||
|
12
|
12
570151000 Capuchon prot. *cap-protectionFormula SE.; |
570151000 |
US $17.82 |
||
|
13
|
13
224751090
Washer-lock black din.127a
Formula SE.; |
224751090 |
— | ||
| replacement | |||||
|
13
|
13
234151401 Washer-lock hel*ical din.127bFormula SE.; |
234151401 |
US $7.10 |
||
|
14
|
14
390402200 Rivet-pop 3/16 *rivet-pop 3/16Formula SE.; |
390402200 |
US $22 |
||
|
15
|
15
517286100
Laniere peinte *strip-steel paint
Formula SE.; |
517286100 |
— | ||
|
16
|
16
394001900 Washer-lock ext.toothFormula SE.; |
394001900 |
US $10 |
||
|
17
|
17
413707400
Loctite 271 *loctite-271
Formula SE.; |
413707400 |
— | ||
| replacement | |||||
|
17
|
17
293800005 Loctite 271 *loctite-271Formula SE.; |
293800005 |
US $31.18 |
||
|
18
|
18
414612400
Gaine *housing
Formula SE.; |
414612400 |
— | ||
| replacement | |||||
|
18
|
18
409901800 Tubing - insulating 13 mmFormula SE.; |
409901800 |
US $97.10 |
||
|
19
|
19
228081045
Nut-hexagonal din.934
Formula SE.; |
228081045 |
— | ||
| replacement | |||||
|
19
|
19
232081414 Nut-hexagonal din.934Formula SE.; |
232081414 |
US $9.40 |
||
|
20
|
20
420945752 Washer-lock din.128Formula SE.; |
420945752 |
US $19.60 |
||
|
21
|
21
224081171
Washer-flat din.125a
Formula SE.; |
224081171 |
— | ||
| replacement | |||||
|
21
|
21
234081410 Washer-flat din.125aFormula SE.; |
234081410 |
US $10.70 |
||
