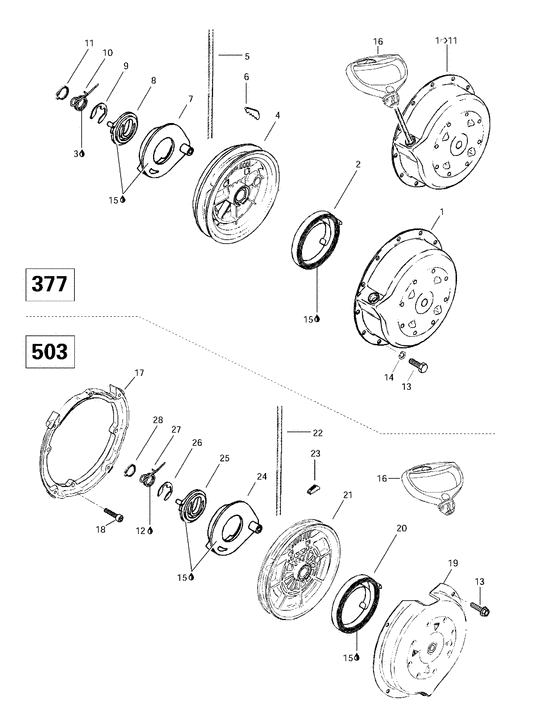

04- rewind starter Diagram Bombardier Formula
- Year
- 1997
- Sales region
- General
- Model
- Formula S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
420996939
Demar.rappel *starter-rewind
Includes 1 - 11. Formula S.; |
420996939 |
— | ||
| replacement | |||||
|
1
|
1
420888121 Demar.rappel *starter-rewindIncludes 1 - 11. Formula S.; |
420888121 |
US $212.13 |
||
|
1
|
1
420910068
Boitier demar. *housing-starter
Formula S.; |
420910068 |
— | ||
|
2
|
2
420939115 Ressort rappel *spring-rewindFormula S.; |
420939115 |
US $34.10 |
||
|
4
|
4
420852283 Poulie demarrag*sheave-rope (pulley)Formula S.; |
420852283 |
US $69.21 |
||
|
5
|
5
412500100
Corde demarreur*rope-starter
Formula S.; |
412500100 |
— | ||
| replacement | |||||
|
5
|
5
412500200 Corde demarreur*rope-starter (25 m))Formula S.; |
412500200 |
US $121.50 |
||
|
6
|
6
420852070 Coin *clamp-keyFormula S.; |
420852070 |
US $27.35 |
||
|
7
|
7
420852290
Cliquet *pawl
Formula S.; |
420852290 |
— | ||
| replacement | |||||
|
7
|
7
420852296 Cliquet *pawlFormula S.; |
420852296 |
US $22.03 |
||
|
8
|
8
420852301
Barrure cliquet*lock-pawl
Formula S.; |
420852301 |
— | ||
| replacement | |||||
|
8
|
8
420852302 Barrure cliquet*lock-pawlFormula S.; |
420852302 |
US $71.25 |
||
|
9
|
9
420845300 Circlip *circlipFormula S.; |
420845300 |
US $19.60 |
||
|
10
|
10
420938985
Ressort d arret*spring-pawl
Formula S.; |
420938985 |
— | ||
| replacement | |||||
|
10
|
10
420938986 Ressort d arret*spring-pawlFormula S.; |
420938986 |
US $10.47 |
||
|
11
|
11
420945770 Bague d arret *ring-lockFormula S.; |
420945770 |
US $20.10 |
||
|
13
|
13
222061665
Screw-hex.cap din.933
Formula S.; |
222061665 |
— | ||
| replacement | |||||
|
13
|
13
207161644 Screw-hex.cap din.933Formula S.; |
207161644 |
US $9.50 |
||
|
14
|
14
420945751 Washer-lock din.128Formula S.; |
420945751 |
US $7.10 |
||
|
15
|
15
420897061
Graisse silicon*grease-silicon
|
420897061 |
— | ||
| replacement | |||||
|
15
|
15
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
16
|
16
572084400 Poignee demar. *grip-starter |
572084400 |
US $14.25 |
||
|
17
|
17
420887691
New Genuine Part
Includes 17 - 28. Formula SL.; |
420887691 |
— | ||
|
17
|
17
420810950
Flasque de connection
Formula SL.; |
420810950 |
— | ||
|
19
|
19
420887690
New Genuine Part
Includes 19 - 28. Formula SL.; |
420887690 |
— | ||
|
19
|
19
420810995
New Genuine Part
Formula SL.; |
420810995 |
— | ||
|
20
|
20
420939115 Ressort rappel *spring-rewindFormula SL.; |
420939115 |
US $34.10 |
||
|
21
|
21
420852480 Poulie demarrag*sheave-rope pulleyFormula SL.; |
420852480 |
US $62.17 |
||
|
22
|
22
412500100
Corde demarreur*rope-starter
Formula SL.; |
412500100 |
— | ||
| replacement | |||||
|
22
|
22
412500200 Corde demarreur*rope-starter (25 m))Formula SL.; |
412500200 |
US $121.50 |
||
|
23
|
23
420852070 Coin *clamp-keyFormula SL.; |
420852070 |
US $27.35 |
||
|
24
|
24
420852290
Cliquet *pawl
Formula SL.; |
420852290 |
— | ||
| replacement | |||||
|
24
|
24
420852296 Cliquet *pawlFormula SL.; |
420852296 |
US $22.03 |
||
|
25
|
25
420852301
Barrure cliquet*lock-pawl
Formula SL.; |
420852301 |
— | ||
| replacement | |||||
|
25
|
25
420852302 Barrure cliquet*lock-pawlFormula SL.; |
420852302 |
US $71.25 |
||
|
26
|
26
420845300 Circlip *circlipFormula SL.; |
420845300 |
US $19.60 |
||
|
27
|
27
420938985
Ressort d arret*spring-pawl
Formula SL.; |
420938985 |
— | ||
| replacement | |||||
|
27
|
27
420938986 Ressort d arret*spring-pawlFormula SL.; |
420938986 |
US $10.47 |
||
|
28
|
28
420945770 Bague d arret *ring-lockFormula SL.; |
420945770 |
US $20.10 |
||
