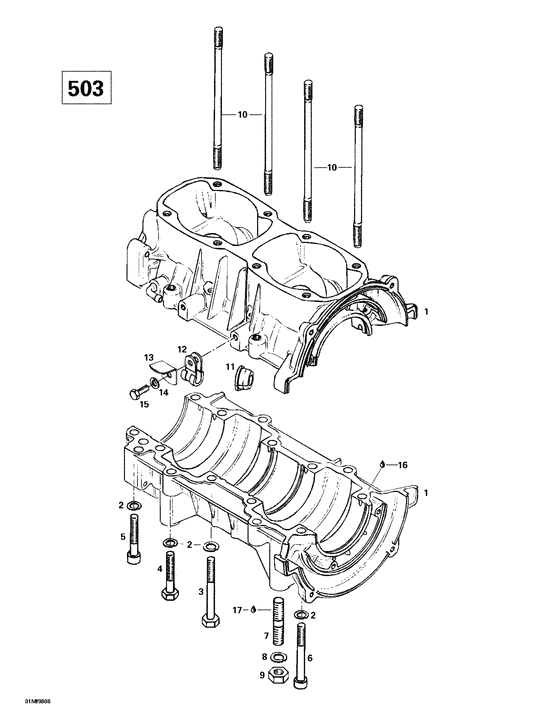

01- crankcase (503) Diagram Bombardier Formula
- Year
- 1998
- Sales region
- General
- Model
- Formula S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
420887794
Carter moteur *crankcase-assy
Includes 1 - 6.; |
420887794 |
— | ||
| replacement | |||||
|
1
|
1
420888493 Carter moteur *crankcase-assyIncludes 1 - 6.; |
420888493 |
US $1,277.02 |
||
|
2
|
2
420945752 Washer-lock din.128 |
420945752 |
US $19.60 |
||
|
3
|
3
420841201 Vis hex.m8x70 *screw-hex.m8x70 |
420841201 |
US $19.70 |
||
|
4
|
4
222084565
Screw-hex.cap din.931
|
222084565 |
— | ||
| replacement | |||||
|
4
|
4
207084544 Screw-hex.cap din.931 |
207084544 |
US $19.20 |
||
|
5
|
5
420841566 Screw-allen m8 x 50 |
420841566 |
US $20.25 |
||
|
6
|
6
420841841 Screw-allen m8 x 65 |
420841841 |
US $19.45 |
||
|
7
|
7
420940190 Stud-m10 x 29/20 |
420940190 |
US $8.13 |
||
|
8
|
8
420945753 Rondelle-frein *washer-lock#10 |
420945753 |
US $19.60 |
||
|
9
|
9
228001045
Nut-hexagonal din.934
|
228001045 |
— | ||
| replacement | |||||
|
9
|
9
232006414 Nut-hexagonal din.934 |
232006414 |
US $17.50 |
||
|
10
|
10
420840555
Stud m8x173,5
|
420840555 |
— | ||
| replacement | |||||
|
10
|
10
420840556 Stud m8x173,5 |
420840556 |
US $15.27 |
||
|
11
|
11
420860962 Passe-cable *grommet-cable |
420860962 |
US $13.01 |
||
|
12
|
12
414176000 Attache collier*open clamp |
414176000 |
US $27 |
||
|
13
|
13
420953310
Support *support-wire
|
420953310 |
— | ||
|
14
|
14
420945751 Washer-lock din.128 |
420945751 |
US $7.10 |
||
|
15
|
15
222061665
Screw-hex.cap din.933
|
222061665 |
— | ||
| replacement | |||||
|
15
|
15
207161644 Screw-hex.cap din.933 |
207161644 |
US $9.50 |
||
|
16
|
16
413707100
New Genuine Part
|
413707100 |
— | ||
|
17
|
17
413703000
Loctite 242 *loctite-242
|
413703000 |
— | ||
| replacement | |||||
|
17
|
17
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
