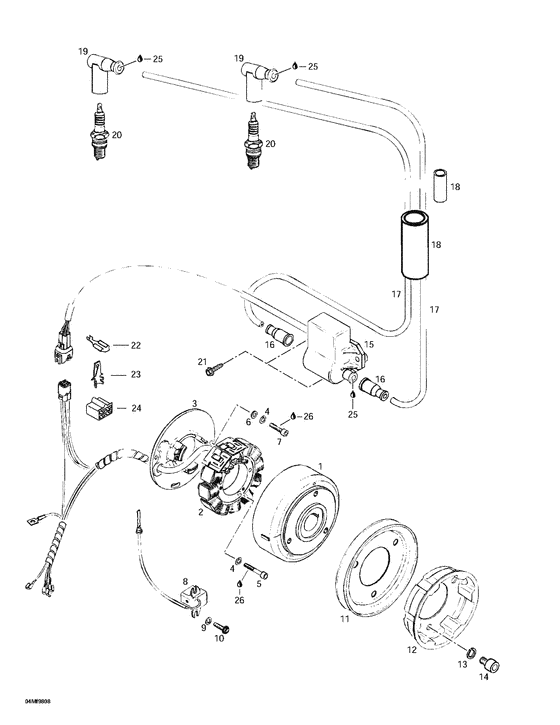

03- magneto Diagram Bombardier Formula
- Year
- 1998
- Sales region
- General
- Model
- Formula S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
410112900
Gaine *tubing
|
410112900 |
— | ||
| replacement | |||||
|
|
409901300
Gaine low temp.vinyl
|
409901300 |
— | ||
|
1
|
1
420886255
Magneto ducati 12v240w
Includes 1 - 5.; |
420886255 |
— | ||
|
1
|
1
420996820
Volant moteur *flywheel
|
420996820 |
— | ||
|
2
|
2
420886605 Plaque stator a*plate-stator aIncludes 2 - 5.; |
420886605 |
US $590.55 |
||
|
4
|
4
420945750 Rondelle-frein *washer-lock#5 |
420945750 |
US $19.60 |
||
|
5
|
5
420940880
Screw-allen m5 x 30
|
420940880 |
— | ||
|
6
|
6
420927571
Rondelle 5,3 *washer-5,3
|
420927571 |
— | ||
| replacement | |||||
|
6
|
6
420927574 Washer |
420927574 |
US $2.45 |
||
|
7
|
7
420840515 Screw-allen m5 x 18 |
420840515 |
US $19.60 |
||
|
8
|
8
420965762
Capteur ass. *pickup-assy.
|
420965762 |
— | ||
| replacement | |||||
|
8
|
8
420965763
Capteur ass. *pickup-assy.
|
420965763 |
— | ||
|
9
|
9
420827800 Rondelle *washer |
420827800 |
US $9.80 |
||
|
10
|
10
420941925 Screw-tapping m5 x 16 |
420941925 |
US $19.60 |
||
|
11
|
11
420980486 Poulie en v *pulley-v belt |
420980486 |
US $33.61 |
||
|
12
|
12
420852412
Poulie demarrag*sheave-rope
|
420852412 |
— | ||
| replacement | |||||
|
12
|
12
420852414 Poulie demarrag*sheave-rope (pulley) |
420852414 |
US $26.49 |
||
|
13
|
13
420845311 Rondelle-frein *washer-lock#8 |
420845311 |
US $1.79 |
||
|
14
|
14
420841520 Screw-allen m8 x 12 |
420841520 |
US $19.60 |
||
|
15
|
15
515172100
Module allum.as*module-ignit.assy
Includes 15 - 19.; |
515172100 |
— | ||
|
15
|
15
415080400
Module allum. *module-ignit.
|
415080400 |
— | ||
|
16
|
16
410112600
Capuchon cable *cap-cable
|
410112600 |
— | ||
|
17
|
17
278001268
Fil bougie *wire-spark plug
|
278001268 |
— | ||
| replacement | |||||
|
17
|
17
278002198
Fil bougie *wire-spark plug
|
278002198 |
— | ||
|
18
|
18
410112800
Gaine *tubing
|
410112800 |
— | ||
|
19
|
19
278000237
Capuchon bougie*cap-spark plug
|
278000237 |
— | ||
|
20
|
20
414961100
Bougie br9es *plug-spark br9es
|
414961100 |
— | ||
| replacement | |||||
|
20
|
20
219703120 SPARK PLUG, NGK BR9ES |
219703120 |
US $21.84 |
||
|
21
|
21
365901400
Screw-hex.taping 12
|
365901400 |
— | ||
|
22
|
22
561503200
Cosse femelle *terminal-femal.
|
561503200 |
— | ||
| replacement | |||||
|
22
|
22
515175253 Cosse femelle *terminal-femal |
515175253 |
US $73.10 |
||
|
23
|
23
561503400
Cosse male *terminal-male
|
561503400 |
— | ||
| replacement | |||||
|
23
|
23
409210000 Cosse male *terminal-male |
409210000 |
US $58.30 |
||
|
24
|
24
409204900 Logement femel.*housing-female |
409204900 |
US $35.45 |
||
|
25
|
25
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
26
|
26
413703000
Loctite 242 *loctite-242
|
413703000 |
— | ||
| replacement | |||||
|
26
|
26
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
