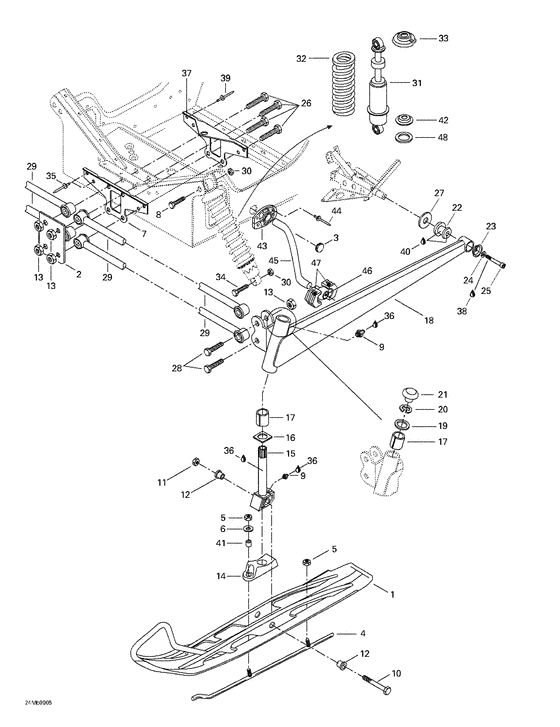

07- front suspension and ski Diagram Bombardier Formula
- Year
- 1999
- Sales region
- General
- Model
- Formula S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
505070113
Bras osc.ga. *arm-swing lh
Formula SL.; |
505070113 |
— | ||
|
|
506144100
Bras osc.dr. p.*arm-swing rh paint
Formula S.; |
506144100 |
— | ||
|
|
505070112
Bras osc.dr. *arm-swing rh.
Formula SL.; |
505070112 |
— | ||
|
|
580649700
Barreau ass. *arm-assy
Formula SL.; |
580649700 |
— | ||
|
1
|
1
505070199
Ski noir *ski-black
|
505070199 |
— | ||
|
2
|
2
518306700
Support *support
|
518306700 |
— | ||
|
3
|
3
414916600 Capuchon nylon *plug-nylonFormula S.; |
414916600 |
US $58.70 |
||
|
4
|
4
505066102
Lisse ski soude*runner-ski weld.
Formula S.; |
505066102 |
— | ||
| replacement | |||||
|
4
|
4
505070424
Lisse ski soude*runner-ski weld.
Formula S.; |
505070424 |
— | ||
|
4
|
4
505066320
Lisse carbure *runner-carbide
Includes 4 - 5. Formula SL.; |
505066320 |
— | ||
| replacement | |||||
|
4
|
4
860505600
Ens.lisse 1/2ca*kit-runner 1/2 car.4 in
Includes 4 - 5. Formula SL.; |
860505600 |
— | ||
|
5
|
5
228581045
Nut-stop elastic din.985
|
228581045 |
— | ||
| replacement | |||||
|
5
|
5
232581414 Nut-stop elastic din.985 |
232581414 |
US $7.30 |
||
|
6
|
6
224080251
Washer-flat din.9021b
|
224080251 |
— | ||
| replacement | |||||
|
6
|
6
234082410 Washer-flat din.9021b |
234082410 |
US $18.40 |
||
|
7
|
7
517254800
Plaque racc.av.*plate-link front
|
517254800 |
— | ||
|
8
|
8
222006065
Screw-hex.cap iso.4014
|
222006065 |
— | ||
| replacement | |||||
|
8
|
8
207006044 Screw-hex.cap iso.4014 |
207006044 |
US $10.65 |
||
|
9
|
9
408200700 Graisseur *grease fitting |
408200700 |
US $46.60 |
||
|
10
|
10
732601176
Screw-hexagonal
|
732601176 |
— | ||
|
11
|
11
228521045
Nut-stop elastic din.985
|
228521045 |
— | ||
| replacement | |||||
|
11
|
11
232521414 Nut-stop elastic din.985 |
232521414 |
US $13.95 |
||
|
12
|
12
414530600
Coussinet *cushion
|
414530600 |
— | ||
|
13
|
13
228521045
Nut-stop elastic din.985
|
228521045 |
— | ||
| replacement | |||||
|
13
|
13
232521414 Nut-stop elastic din.985 |
232521414 |
US $13.95 |
||
|
14
|
14
570053500 Butee de ski *stopper-ski |
570053500 |
US $22.39 |
||
|
15
|
15
506144500
Jambe de ski *leg-ski
|
506144500 |
— | ||
|
16
|
16
506081200
Plaque usure *plate-wear
|
506081200 |
— | ||
|
17
|
17
572069900
Coussinet *cushion
|
572069900 |
— | ||
|
18
|
18
506144200
Bras osc.ga. p.*arm-swing lh.p
Formula S.; |
506144200 |
— | ||
|
19
|
19
506080900
Rondelle retenu*washer-retaine
|
506080900 |
— | ||
|
20
|
20
371910400 Circlip *circlip |
371910400 |
US $50.70 |
||
|
21
|
21
572091300 Bouchon *cap |
572091300 |
US $8.55 |
||
|
22
|
22
570062200 Amort. caout. *damper |
570062200 |
US $15.25 |
||
|
23
|
23
506115800
Coupole *cup
|
506115800 |
— | ||
|
24
|
24
224781140
Washer-lock din.127a
|
224781140 |
— | ||
| replacement | |||||
|
24
|
24
234181401 Washer-lock din*.127b |
234181401 |
US $59.50 |
||
|
25
|
25
222982565
Screw-socket hd.din.912
|
222982565 |
— | ||
| replacement | |||||
|
25
|
25
205082544 Screw-socket hd.din.912 |
205082544 |
US $14.80 |
||
|
26
|
26
732601113
Screw-hex.cap iso.4014
|
732601113 |
— | ||
|
27
|
27
503146700 Rondelle *washer |
503146700 |
US $55.30 |
||
|
28
|
28
222025075
Screw-hex.cap iso.4014
|
222025075 |
— | ||
| replacement | |||||
|
28
|
28
207025044 Screw-hex.cap iso.4014 |
207025044 |
US $19.60 |
||
|
29
|
29
580649600
Barreau ass. *arm-assy
Formula S.; |
580649600 |
— | ||
|
30
|
30
228501045
Nut-locking elastic din.982
|
228501045 |
— | ||
| replacement | |||||
|
30
|
30
233601416 Nut-locking elastic din.982 |
233601416 |
US $21.90 |
||
|
31
|
31
505070016
Amortisseur *shock
|
505070016 |
— | ||
| replacements | |||||
|
31
|
31
505070401 Rondelle *washer |
505070401 |
US $38.90 |
||
|
31
|
31
503187500 Guide ressort *guide-spring |
503187500 |
US $9.84 |
||
|
31
|
31
505070396
Amortisseur *shock
|
505070396 |
— | ||
|
32
|
32
415075900
Ressort jaune *spring-yellow
|
415075900 |
— | ||
|
33
|
33
503140600
Butee ressort *stopper-spring
|
503140600 |
— | ||
| replacement | |||||
|
33
|
33
503191611
Butee ressort *stopper-spring
|
503191611 |
— | ||
|
34
|
34
222005565
Screw-hex.cap iso.4014
|
222005565 |
— | ||
| replacement | |||||
|
34
|
34
207005544 Screw-hex.cap iso.4014 |
207005544 |
US $14.35 |
||
|
35
|
35
390404900
Rivet-pop 1/4 *rivet-pop 1/4
|
390404900 |
— | ||
|
36
|
36
219700417
Graise syntheti*grease-synthe.
|
219700417 |
— | ||
|
37
|
37
517254900
Plaque racc.ar.*plate-link rear
|
517254900 |
— | ||
|
38
|
38
413703000
Loctite 242 *loctite-242
|
413703000 |
— | ||
| replacement | |||||
|
38
|
38
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
40
|
40
293550014
Graisse *grease
|
293550014 |
— | ||
| replacement | |||||
|
40
|
40
293550030 Graisse *grease |
293550030 |
US $36.06 |
||
|
41
|
41
506117300
Douille *bushing
|
506117300 |
— | ||
|
42
|
42
503165100 Guide ressort *guide-spring |
503165100 |
US $2.52 |
||
|
43
|
43
572077600
Demi-douille *half-bushing
Formula SL.; |
572077600 |
— | ||
|
44
|
44
390402300 Rivet-pop 3/16 *rivet-pop 3/16Formula SL.; |
390402300 |
US $50 |
||
|
45
|
45
506134100
Barre stabilis.*bar-stabilizer
Formula SL.; |
506134100 |
— | ||
|
46
|
46
506127300
Rotule *joint-ball
Formula SL.; |
506127300 |
— | ||
|
47
|
47
572069800
Coulisseau *block-sliding
Formula SL.; |
572069800 |
— | ||
| replacement | |||||
|
47
|
47
505070817 Pcoulisseau *block-slidingFormula SL.; |
505070817 |
US $42.75 |
||
|
48
|
48
503184400 Rondelle *washer |
503184400 |
US $33 |
||
