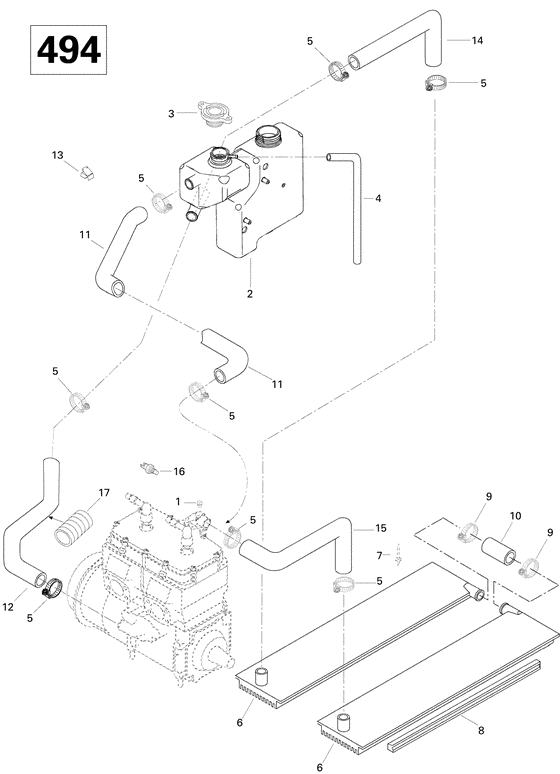

01- cooling system (494) Diagram Bombardier Formula
- Year
- 1996
- Sales region
- General
- Model
- Formula S
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
414184400
Bouchon *cap-plug
|
414184400 |
— | ||
|
2
|
2
572076900
Reservoir huile*tank-oil
|
572076900 |
— | ||
| replacement | |||||
|
2
|
2
519000034
Reservoir huile*tank-oil
|
519000034 |
— | ||
|
3
|
3
414684700
Bouchon radiat.*cap-pressure
|
414684700 |
— | ||
| replacement | |||||
|
3
|
3
509000187 Bouchon radiat.*pressure cap |
509000187 |
US $32.15 |
||
|
4
|
4
414834000
Conduit *line
|
414834000 |
— | ||
| replacement | |||||
|
4
|
4
415080200
Boyau polyure *polyurethane hose
|
415080200 |
— | ||
|
5
|
5
408800400 Clamp-gear |
408800400 |
US $121.90 |
||
|
6
|
6
517280500
Radiateur dr.so*radiator-rh weld
|
517280500 |
— | ||
| replacement | |||||
|
6
|
6
517280510
Radiateur dr.so*radiator-rh weld
|
517280510 |
— | ||
|
6
|
6
517280501
Radiateur ga.so*radiator-lh weld
|
517280501 |
— | ||
| replacement | |||||
|
6
|
6
517280511
Radiateur ga.so*radiator-lh weld
|
517280511 |
— | ||
|
8
|
8
517248800
Pare-chocs p. *bumper-paint
|
517248800 |
— | ||
| replacement | |||||
|
8
|
8
517248810
Pare-chocs *bumper
|
517248810 |
— | ||
|
9
|
9
408803400
Bride serrage *clamp-gear
|
408803400 |
— | ||
|
10
|
10
414795800
Boyau racc.rad.*hose-radiator
|
414795800 |
— | ||
|
11
|
11
414972900
Boyau sort.mot.*hose-out.eng.
|
414972900 |
— | ||
|
12
|
12
415010300
New Genuine Part
|
415010300 |
— | ||
|
13
|
13
414227300 Clip - spring |
414227300 |
US $20.70 |
||
|
14
|
14
414973000
Boyau sort.rad.*hose-out.rad.
|
414973000 |
— | ||
|
15
|
15
415028000
Boyau entre rad*hose-inlet rad
|
415028000 |
— | ||
|
16
|
16
512047000
Capteur temp. *sensor-temp.
|
512047000 |
— | ||
|
17
|
17
414991800
Gaine *protector tube
|
414991800 |
— | ||
| replacement | |||||
|
17
|
17
415084700 Gaine *protector tube |
415084700 |
US $2.53 |
||
