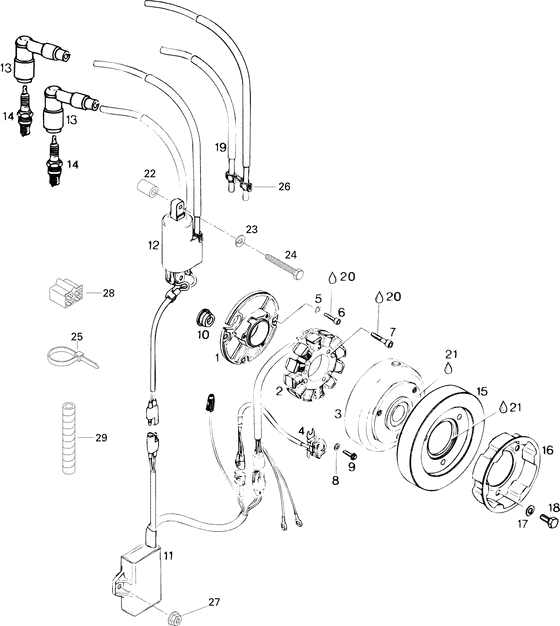

03- magneto Diagram Bombardier Formula
- Year
- 1996
- Sales region
- General
- Model
- Formula S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
420810262
Plateau d'armature
|
420810262 |
— | ||
|
2
|
2
410918600
New Genuine Part
Includes 2 to 4; |
410918600 |
— | ||
|
2
|
2
410919000
Plaque reacteur*plate-stator a
|
410919000 |
— | ||
|
3
|
3
410919100
Volant moteur
|
410919100 |
— | ||
|
4
|
4
410916700 Capteur ass. *pickup-assy. |
410916700 |
US $68.29 |
||
|
5
|
5
420945750 Rondelle-frein *washer-lock#5 |
420945750 |
US $19.60 |
||
|
6
|
6
420941540 Screw-allen m5x20 din.6912 |
420941540 |
US $20.25 |
||
|
7
|
7
420840886 Screw-cyl.m6x30 din 6912 |
420840886 |
US $19.60 |
||
|
8
|
8
420827800 Rondelle *washer |
420827800 |
US $9.80 |
||
|
9
|
9
420941925 Screw-tapping m5 x 16 |
420941925 |
US $19.60 |
||
|
10
|
10
420960288
Passe-cable *grommet-cable
|
420960288 |
— | ||
|
11
|
11
410918900
Boite electron.*box-amplifier
|
410918900 |
— | ||
| replacements | |||||
|
11
|
11
409207300 Logement femel.*housing-female |
409207300 |
US $10.85 |
||
|
11
|
11
278000631 Cosse male *terminal-male |
278000631 |
US $58.70 |
||
|
11
|
11
278000632 Cosse femelle *terminal-femal |
278000632 |
US $28.40 |
||
|
11
|
11
409207100 Verrou femelle *lock-female |
409207100 |
US $3.11 |
||
|
11
|
11
409207200 Verrou femelle *lock-female |
409207200 |
US $5.87 |
||
|
11
|
11
409207500 Verrou male *lock-male |
409207500 |
from US $4.23 |
||
|
11
|
11
415085300
Module allumage*module-ignition
|
415085300 |
— | ||
|
11
|
11
409206900 Logement male *housing-male |
409206900 |
US $10.85 |
||
|
11
|
11
409207400 Logement femel.*housing-female |
409207400 |
US $10.47 |
||
|
12
|
12
410920100
Bobine allumage*coil-ignition
|
410920100 |
— | ||
|
13
|
13
414569200 Prot.bougie *prot-spark plu |
414569200 |
US $8.38 |
||
|
14
|
14
414961100
Bougie br9es *plug-spark br9es
|
414961100 |
— | ||
| replacement | |||||
|
14
|
14
219703120 SPARK PLUG, NGK BR9ES |
219703120 |
US $21.84 |
||
|
15
|
15
420866759
Contrepoids du volant moteur
|
420866759 |
— | ||
|
16
|
16
420852411
Poulie demarrag*pull.-starting
|
420852411 |
— | ||
|
17
|
17
420945752 Washer-lock din.128 |
420945752 |
US $19.60 |
||
|
18
|
18
420940591
Screw-hex.m8 x 20
|
420940591 |
— | ||
| replacement | |||||
|
18
|
18
207182044 Screw-hex.cap din.933 |
207182044 |
US $9.50 |
||
|
19
|
19
410917000
New Genuine Part
|
410917000 |
— | ||
|
20
|
20
413703000
Loctite 242 *loctite-242
|
413703000 |
— | ||
| replacement | |||||
|
20
|
20
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
21
|
21
420899788
Loctite 648 *loctite 648
|
420899788 |
— | ||
| replacement | |||||
|
21
|
21
413711400
Loctite 648 *loctite-648
|
413711400 |
— | ||
|
23
|
23
224761110
Washer-lock thin black din.127a
|
224761110 |
— | ||
| replacement | |||||
|
23
|
23
234161471 Washer-lock black din.127b |
234161471 |
US $6.80 |
||
|
24
|
24
222064065
Screw-hex.cap din.931
|
222064065 |
— | ||
| replacement | |||||
|
24
|
24
207064044 Screw-hex.cap din.931 |
207064044 |
US $19.20 |
||
|
25
|
25
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
26
|
26
410914600 Attache fil bou*clip-plastic |
410914600 |
from US $9.01 |
||
|
27
|
27
228761045
Nut-flange elastic din.6926
|
228761045 |
— | ||
| replacement | |||||
|
27
|
27
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
28
|
28
409204900 Logement femel.*housing-female |
409204900 |
US $35.45 |
||
|
29
|
29
410904000
New Genuine Part
|
410904000 |
— | ||
