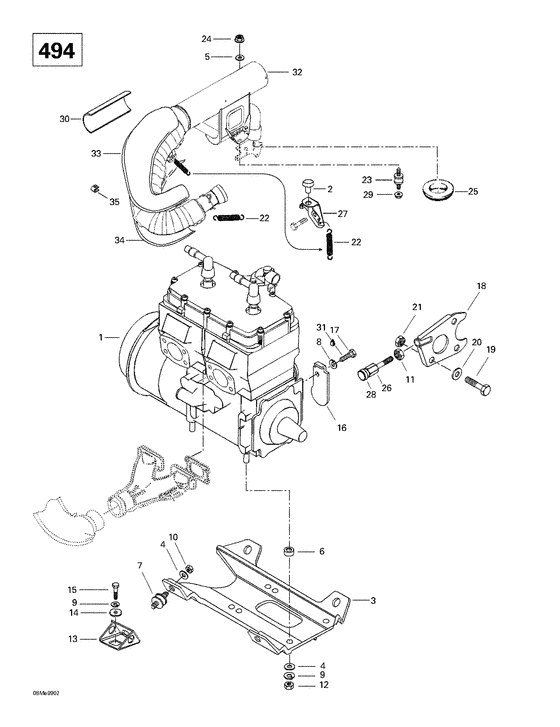

01- engine support and muffler (494) Diagram Bombardier Formula
- Year
- 1999
- Sales region
- General
- Model
- Formula Z
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
400409406
<<494>> engine
Formula Z 500.; |
400409406 |
— | ||
|
2
|
2
514048200
Butoir *bumper
Formula Z 500.; |
514048200 |
— | ||
|
3
|
3
512058916
Socle *support-engine
Formula Z 500.; |
512058916 |
— | ||
|
4
|
4
224001211
Washer-flat din.125a
Formula Z 500.; |
224001211 |
— | ||
| replacement | |||||
|
4
|
4
234001410 Washer-flat din.125aFormula Z 500.; |
234001410 |
US $16 |
||
|
5
|
5
224080251
Washer-flat din.9021b
Formula Z 500.; |
224080251 |
— | ||
| replacement | |||||
|
5
|
5
234082410 Washer-flat din.9021bFormula Z 500.; |
234082410 |
US $18.40 |
||
|
6
|
6
503128100
Entretoise *spacer
Formula Z 500.; |
503128100 |
— | ||
|
7
|
7
570127700
Tampon ancrage *mount-rubber
Formula Z 500.; |
570127700 |
— | ||
| replacement | |||||
|
7
|
7
570128700 Tampon ancrage *mount-rubberFormula Z 500.; |
570128700 |
US $52.14 |
||
|
8
|
8
224761110
Washer-lock thin black din.127a
Formula Z 500.; |
224761110 |
— | ||
| replacement | |||||
|
8
|
8
234161471 Washer-lock black din.127bFormula Z 500.; |
234161471 |
US $6.80 |
||
|
9
|
9
224701188
Washer-lock spring din.128a-a2
Formula Z 500.; |
224701188 |
— | ||
| replacement | |||||
|
9
|
9
234100602 Washer-lock spring din.128a-a2Formula Z 500.; |
234100602 |
US $19.60 |
||
|
10
|
10
228501045
Nut-locking elastic din.982
Formula Z 500.; |
228501045 |
— | ||
| replacement | |||||
|
10
|
10
233601416 Nut-locking elastic din.982Formula Z 500.; |
233601416 |
US $24 |
||
|
11
|
11
732610019 Nut-jam hexagonal rh.Formula Z 500.; |
732610019 |
US $9.80 |
||
|
12
|
12
228001045
Nut-hexagonal din.934
Formula Z 500.; |
228001045 |
— | ||
| replacement | |||||
|
12
|
12
232006414 Nut-hexagonal din.934Formula Z 500.; |
232006414 |
US $17.50 |
||
|
13
|
13
512050900 Supp.moteur sou*supp-engine weldFormula Z 500.; |
512050900 |
US $15.54 |
||
|
14
|
14
512056700 Rondelle-frein *washer-lockFormula Z 500.; |
512056700 |
US $20.50 |
||
|
15
|
15
222002565
Screw-hex.cap iso.4017
Formula Z 500.; |
222002565 |
— | ||
| replacement | |||||
|
15
|
15
207102544 Screw-hex.cap iso.4017Formula Z 500.; |
207102544 |
US $17.50 |
||
|
16
|
16
512052900
Plaque butee *plate stopper
Formula Z 500.; |
512052900 |
— | ||
|
17
|
17
222061665
Screw-hex.cap din.933
Formula Z 500.; |
222061665 |
— | ||
| replacement | |||||
|
17
|
17
207161644 Screw-hex.cap din.933Formula Z 500.; |
207161644 |
US $9.50 |
||
|
18
|
18
512055600
Plaque app.soud*plate-weld
Formula Z 500.; |
512055600 |
— | ||
|
19
|
19
222082565
Screw-hex.cap din.933
Formula Z 500.; |
222082565 |
— | ||
| replacement | |||||
|
19
|
19
207182544 Screw-hex.cap din.933Formula Z 500.; |
207182544 |
US $11.70 |
||
|
20
|
20
224081171
Washer-flat din.125a
Formula Z 500.; |
224081171 |
— | ||
| replacement | |||||
|
20
|
20
234081410 Washer-flat din.125aFormula Z 500.; |
234081410 |
US $11.70 |
||
|
21
|
21
228581045
Nut-stop elastic din.985
Formula Z 500.; |
228581045 |
— | ||
| replacement | |||||
|
21
|
21
232581414 Nut-stop elastic din.985Formula Z 500.; |
232581414 |
US $7.30 |
||
|
22
|
22
414893700
Ressort *spring
Formula Z 500.; |
414893700 |
— | ||
| replacement | |||||
|
22
|
22
415107100 Ressort *springFormula Z 500.; |
415107100 |
US $82.10 |
||
|
23
|
23
514052743 Tampon ancrage *mount-rubberFormula Z 500.; |
514052743 |
US $48.93 |
||
|
24
|
24
228581045
Nut-stop elastic din.985
Formula Z 500.; |
228581045 |
— | ||
| replacement | |||||
|
24
|
24
232581414 Nut-stop elastic din.985Formula Z 500.; |
232581414 |
US $7.30 |
||
|
25
|
25
570039000 Grommet-exhaust d70Formula Z 500.; |
570039000 |
US $29.29 |
||
|
26
|
26
512052400
Vis de butee *screw-stopper
Formula Z 500.; |
512052400 |
— | ||
|
27
|
27
514048600
Support tuyau *support-pipe
Formula Z 500.; |
514048600 |
— | ||
|
28
|
28
570045400
Butee *stopper
Formula Z 500.; |
570045400 |
— | ||
| replacements | |||||
|
28
|
28
512059057 Rondelle *washerFormula Z 500.; |
512059057 |
US $19.60 |
||
|
28
|
28
512059056 Butee *stopperFormula Z 500.; |
512059056 |
US $22.39 |
||
|
29
|
29
228781045
Nut-flange elastic din.6926
Formula Z 500.; |
228781045 |
— | ||
| replacement | |||||
|
29
|
29
233281414 Nut-flange elastic din.6926Formula Z 500.; |
233281414 |
US $18.50 |
||
|
30
|
30
415064900
Feuille reflect*sheet-reflect.
Formula Z 500.; |
415064900 |
— | ||
|
31
|
31
413707400
Loctite 271 *loctite-271
Formula Z 500.; |
413707400 |
— | ||
| replacement | |||||
|
31
|
31
293800005 Loctite 271 *loctite-271Formula Z 500.; |
293800005 |
US $31.18 |
||
|
32
|
32
514048400
Silenc.echapp. *muffler-after
Includes 32 - 35. Formula Z 500.; |
514048400 |
— | ||
|
33
|
33
514044020
Envelop.sup. *shell-upper
Formula Z 500.; |
514044020 |
— | ||
|
34
|
34
514048504
Envelop.inf. *shell-lower
Formula Z 500.; |
514048504 |
— | ||
|
35
|
35
514046503
Agrafe *cleat
Formula Z 500.; |
514046503 |
— | ||
