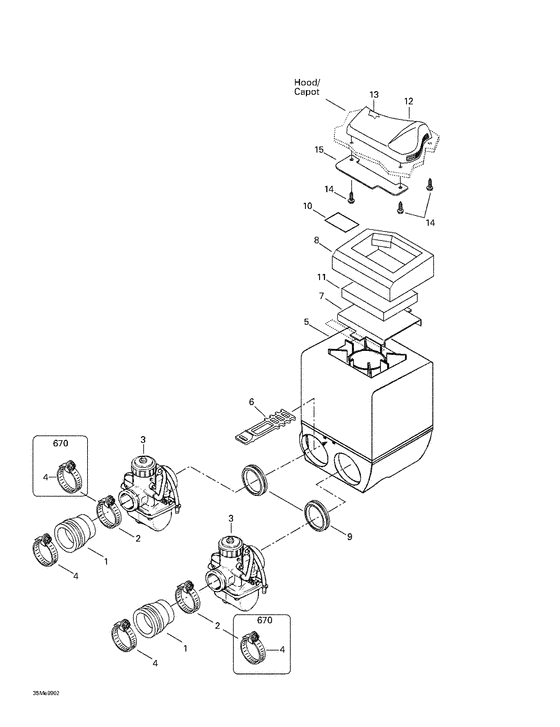

02- air intake system Diagram Bombardier Formula
- Year
- 1999
- Sales region
- General
- Model
- Formula Z
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
508000027
Silenc.adm.ass.*intake-air ass
Formula Z 583. Formula Z 670.; |
508000027 |
— | ||
|
|
403138528
Carb.vm-38 *carb-vm-38
Formula Z 500.; |
403138528 |
— | ||
|
|
403138525
Carb.vm-40 *carb-vm-40
Formula Z 583.; |
403138525 |
— | ||
|
|
403138526
Carb.vm-40 *carb-vm-40
Formula Z 583.; |
403138526 |
— | ||
|
|
403138513
Carb.vm-40 *carb-vm-40
Formula Z 670.; |
403138513 |
— | ||
|
|
403138514
Carb.vm-40 *carb-vm-40
Formula Z 670.; |
403138514 |
— | ||
|
|
570049000
Adap.admis.vm40*adap-air vm-40
Formula Z 583. Formula Z 670.; |
570049000 |
— | ||
|
|
570048400
Adapteur carb. *adaptor-carb.
Formula Z 583. Formula Z 670.; |
570048400 |
— | ||
|
1
|
1
403138527
Carb.vm-38 *carb-vm-38
Formula Z 500.; |
403138527 |
— | ||
|
2
|
2
570048100
Adapteur carb. *adaptor-carb.
Formula Z 500.; |
570048100 |
— | ||
|
3
|
3
415038400
Collet *collar
Formula Z 500.; |
415038400 |
— | ||
| replacement | |||||
|
3
|
3
293650156
Bride serrage *clamp-gemi
Formula Z 500.; |
293650156 |
— | ||
|
4
|
4
414532800
Collet *collar
|
414532800 |
— | ||
|
5
|
5
508000026
Silenc.adm.ass.*intake-air ass
Includes 5 - 11. Formula Z 500.; |
508000026 |
— | ||
|
6
|
6
570069700
Loquet *latch
|
570069700 |
— | ||
|
7
|
7
517283900 Grille adm. *grill-intake |
517283900 |
US $9.71 |
||
|
8
|
8
415105900
Mousse ext. *foam-lower
|
415105900 |
— | ||
|
9
|
9
570048900
Adap.admis.vm38*adap-air vm-38
Formula Z 500.; |
570048900 |
— | ||
|
10
|
10
516000130
Etiquette att. *caution-label
|
516000130 |
— | ||
|
11
|
11
415014800 Filtre a air *filter-air |
415014800 |
US $12.19 |
||
|
12
|
12
572077900 Couvercle adm. *cover-intake |
572077900 |
US $14.25 |
||
|
13
|
13
414972600 Filtre a air *filter-air |
414972600 |
US $42.81 |
||
|
14
|
14
732603009
Screw-plastite hex.wr.hd.
|
732603009 |
— | ||
| replacement | |||||
|
14
|
14
243141640
Screw-plastite hex.wr.hd.
|
243141640 |
— | ||
|
15
|
15
517298800
Deflecteur *deflector
|
517298800 |
— | ||
