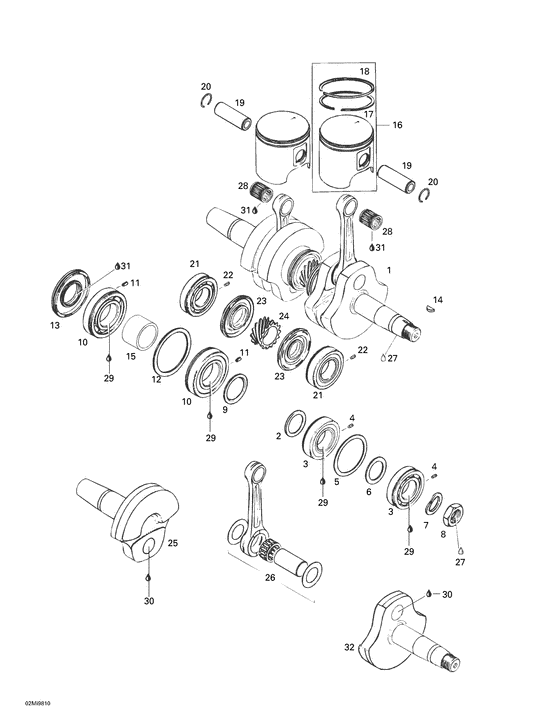

01- crankshaft and pistons Diagram Bombardier Formula
- Year
- 1998
- Sales region
- General
- Model
- Formula Z
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
420815091
Segment semi-tr*ring-semi trap
|
420815091 |
— | ||
|
|
420887611
Piston 78,15 *piston-78,15
|
420887611 |
— | ||
| replacement | |||||
|
|
420887613
Piston 78,15 *piston-78,15
|
420887613 |
— | ||
|
|
420887038
Tige rep.pto *rod-repair pto
|
420887038 |
— | ||
| replacement | |||||
|
|
420887988
Tige rep.pto. *rod-repair pto.
|
420887988 |
— | ||
|
|
420815021
Segment rectangulaire 78.25 mm
|
420815021 |
— | ||
|
1
|
1
420887980
Vilbrequin ass
Includes 1 - 15.; |
420887980 |
— | ||
|
2
|
2
420827445 Bague ecart. *ring-distance |
420827445 |
US $8.13 |
||
|
3
|
3
420932589
Roulement bille*ball bearing
Includes 3 - 4.; |
420932589 |
— | ||
| replacement | |||||
|
3
|
3
420832538
Roulement bille*ball bearing
Includes 3 - 4.; |
420832538 |
— | ||
|
4
|
4
420929972 Goupille ressor*pin-roll |
420929972 |
US $34 |
||
|
5
|
5
420427684 Rondelle ajus *washer-adj. |
420427684 |
US $8.13 |
||
|
6
|
6
420827050 Disque retenue *disk-retaining |
420827050 |
US $7 |
||
|
7
|
7
420945759 Rondelle-frein *washer-lock 22 |
420945759 |
US $24.50 |
||
|
8
|
8
420842230
Nut-hex.m22 x 1,5
|
420842230 |
— | ||
| replacement | |||||
|
8
|
8
420842234
Nut-hex.m22 x 1,5
|
420842234 |
— | ||
|
9
|
9
420827760 Bague ecart. *ring-distance |
420827760 |
US $7 |
||
|
10
|
10
420832239
Roulement bille*ball bearing
Includes 10 - 11.; |
420832239 |
— | ||
| replacement | |||||
|
10
|
10
420832573 Roulement bille*ball bearingIncludes 10 - 11.; |
420832573 |
US $53.60 |
||
|
11
|
11
420929972 Goupille ressor*pin-roll |
420929972 |
US $34 |
||
|
12
|
12
420927710 Disque retenue *disk-retaining |
420927710 |
US $9.45 |
||
|
13
|
13
420831950
Anneau etanche *seal-oil
|
420831950 |
— | ||
| replacement | |||||
|
13
|
13
420831952 Anneau etanche *seal-oil |
420831952 |
US $19.43 |
||
|
14
|
14
420246015 Clavette *key-woodruff |
420246015 |
US $3.60 |
||
|
15
|
15
420847684
Douille *sleeve-dista.
|
420847684 |
— | ||
|
16
|
16
420887610
Piston 77,90 *piston-77,90
Includes 16 - 18.; |
420887610 |
— | ||
| replacement | |||||
|
16
|
16
420887612 Piston 77,90 *piston-77,90Includes 16 - 18.; |
420887612 |
US $183.57 |
||
|
17
|
17
420815025
Segment r 78.0 *ring-r 78.0
|
420815025 |
— | ||
|
18
|
18
420815090 Segment semi-tr*ring-semi trap |
420815090 |
US $61.15 |
||
|
19
|
19
420916370
Axe de piston *pin-gudgeon
|
420916370 |
— | ||
| replacement | |||||
|
19
|
19
420916371 Axe de piston *pin-gudgeon |
420916371 |
US $71.30 |
||
|
20
|
20
420845100 Circlip #20 *circlip-#20 |
420845100 |
US $19.60 |
||
|
21
|
21
420832538
Roulement bille*ball bearing
Includes 21 - 22.; |
420832538 |
— | ||
|
22
|
22
420929972 Goupille ressor*pin-roll |
420929972 |
US $34 |
||
|
23
|
23
420831990 Anneau etanche *seal-oil |
420831990 |
US $22.39 |
||
|
24
|
24
420935748
Central gear 14 teeth
|
420935748 |
— | ||
|
25
|
25
420818702
Vilebrequin pto*crankshaft-pto
|
420818702 |
— | ||
| replacement | |||||
|
25
|
25
420818704
Vilebrequin pto*crankshaft-pto
|
420818704 |
— | ||
|
26
|
26
420887039
Tige rep.mag. *rod-repair mag.
|
420887039 |
— | ||
| replacement | |||||
|
26
|
26
420887989
Tige rep.mag. *rod-repair mag.
|
420887989 |
— | ||
|
27
|
27
413703000
Loctite 242 *loctite-242
|
413703000 |
— | ||
| replacement | |||||
|
27
|
27
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
28
|
28
420832442
Roul.aiguille *needle bearing
|
420832442 |
— | ||
| replacement | |||||
|
28
|
28
420832428
Roul.aiguille *needle bearing
|
420832428 |
— | ||
|
29
|
29
413701000
Loctite antigrippage 767, 12 oz
|
413701000 |
— | ||
|
30
|
30
293800039
Loctite 642 *loctite-642
|
293800039 |
— | ||
| replacement | |||||
|
30
|
30
413711400
Loctite 648 *loctite-648
|
413711400 |
— | ||
|
31
|
31
413707000 Dow corning 111*dow corning 111 |
413707000 |
US $86.77 |
||
|
32
|
32
420818732
Demi-vileb.mag.*half-crank mag
|
420818732 |
— | ||
| replacement | |||||
|
32
|
32
420818733
Demi-vileb.mag.*half-crank mag
|
420818733 |
— | ||
