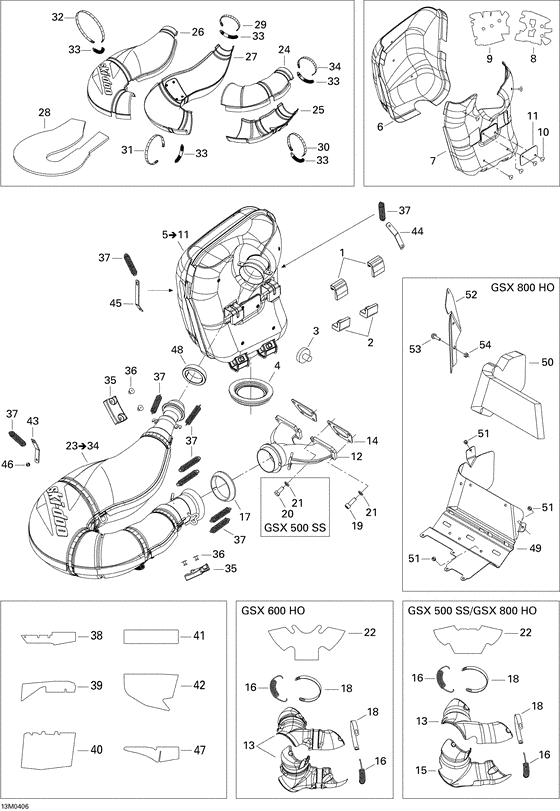

01- exhaust system Diagram Bombardier GSX
- Year
- 2004
- Sales region
- General
- Model
- GSX 500SS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
514053735 Tuyau calib.ass*tube-calib.assyINCLUDES ITEMS 23 TO 34 / GSX 600 HO; |
514053735 |
US $831.27 |
||
|
|
514053749 Tuyau calib.ass*tube-calib.assyINCLUDES ITEMS 23 TO 34 / GSX 800 HO; |
514053749 |
US $831.27 |
||
|
|
420673130
Collect.echapp.*exhaust manifold
GSX 500 SS; |
420673130 |
— | ||
| replacement | |||||
|
|
420673131 Collect.echapp.*exhaust manifoldGSX 500 SS; |
420673131 |
US $288.61 |
||
|
|
420973713 Collect.echapp.*exhaust manifoldGSX 800 HO; |
420973713 |
US $296.79 |
||
|
|
514053729
Silencieux ass.*muffler-assy
INCLUDES ITEMS 5 TO 11 / GSX 600 HO; |
514053729 |
— | ||
|
|
205082544 Screw-socket hd.din.912GSX 500 SS; |
205082544 |
US $14.80 |
||
|
|
514053746
Silencieux ass.*muffler-assy
INCLUDES ITEMS 5 TO 11 / GSX 800 HO; |
514053746 |
— | ||
| replacement | |||||
|
|
514054124 Silencieux ass.*muffler-assyINCLUDES ITEMS 5 TO 11 / GSX 800 HO; |
514054124 |
US $795.57 |
||
|
|
514053831 Env.collect.ech*manifold exh.envelop.GSX 500 SS / GSX 800 HO; |
514053831 |
US $16.29 |
||
|
|
514053837 Rondelle *washerGSX 500 SS; |
514053837 |
US $22.84 |
||
|
|
420931610 Joint *gasketGSX 500 SS; |
420931610 |
US $13.21 |
||
|
|
420931850 Joint *gasketGSX 800 HO; |
420931850 |
US $14.25 |
||
|
|
514053588 Laine isolante *wooll insulatingGSX 600 HO; |
514053588 |
US $16.29 |
||
|
1
|
1
514053372 Butee superieur*stopper-upper |
514053372 |
US $18.33 |
||
|
2
|
2
514053373
Butee inferieur*stopper-lower
|
514053373 |
— | ||
| replacement | |||||
|
2
|
2
514054223 Butee inferieur*stopper-lower |
514054223 |
US $17.29 |
||
|
3
|
3
514053654 Butoir caout. *bumper rubber |
514053654 |
US $111.12 |
||
|
4
|
4
514053394
Rondelle echapp*grommet-exhaust
|
514053394 |
— | ||
| replacement | |||||
|
4
|
4
514054240 Rondelle echapp*grommet-exhaust |
514054240 |
US $25.45 |
||
|
5
|
5
514053726
Silencieux ass.*muffler-assy
INCLUDES ITEMS 5 TO 11 / GSX 500 SS; |
514053726 |
— | ||
| replacement | |||||
|
5
|
5
514054121 Silencieux ass.*muffler-assyINCLUDES ITEMS 5 TO 11 / GSX 500 SS; |
514054121 |
US $795.57 |
||
|
6
|
6
514053563
Deflecteur *rh.deflector
|
514053563 |
— | ||
| replacement | |||||
|
6
|
6
514054122 Deflecteur *rh.deflector |
514054122 |
US $48.93 |
||
|
7
|
7
514053585 Deflecteur *lh.deflector |
514053585 |
US $48.93 |
||
|
8
|
8
514053590 Laine isolante *wool |
514053590 |
US $16.29 |
||
|
9
|
9
514053589 Laine isolante *wool |
514053589 |
US $18.33 |
||
|
10
|
10
390910000 Rivet-pop 3/16 *rivet-pop 3/16 |
390910000 |
US $18.75 |
||
|
11
|
11
514053429 Renfort *reinforcement |
514053429 |
US $16.29 |
||
|
12
|
12
420673070
Collect.echapp.*manifold-exh.
GSX 600 HO; |
420673070 |
— | ||
| replacement | |||||
|
12
|
12
420673072 Collecteur *manifoldGSX 600 HO; |
420673072 |
US $230.49 |
||
|
13
|
13
514053593
Env.collect.ech*manifold exh.envelop.
GSX 600 HO; |
514053593 |
— | ||
|
14
|
14
420850552 Joint *gasketGSX 600 HO; |
420850552 |
US $10 |
||
|
15
|
15
514053830 Env.collect.ech*manifold exh.envelop.GSX 500 SS / GSX 800 HO; |
514053830 |
US $15.27 |
||
|
16
|
16
514053643 Ressort *spring |
514053643 |
US $9.13 |
||
|
17
|
17
514053487 Joint echapp. *gasket-exhaust |
514053487 |
US $58.44 |
||
|
18
|
18
514053603 Languette *strap retaining |
514053603 |
US $10.17 |
||
|
19
|
19
205062044 Screw-socket hd.din.912GSX 500 SS / GSX 800 HO; |
205062044 |
US $16.50 |
||
|
20
|
20
207182044 Screw-hex.cap din.933GSX 500 SS; |
207182044 |
US $9.50 |
||
|
21
|
21
234161471 Washer-lock black din.127bGSX 600 HO / GSX 800 HO; |
234161471 |
US $6.80 |
||
|
22
|
22
514053284 Laine isolante *insulating-woollGSX 500 SS / GSX 800 HO; |
514053284 |
US $16.29 |
||
|
23
|
23
514053732 Tuyau calib.ass*tube-calib.assyINCLUDES ITEMS 23 TO 34 / GSX 500 SS; |
514053732 |
US $831.27 |
||
|
24
|
24
514053609 Demi-env.sup.av.*enveloppe-upp.fr. |
514053609 |
US $34.65 |
||
|
25
|
25
514053610
Demi-env. inf.av*half-env.low. fr.assy
|
514053610 |
— | ||
|
26
|
26
514053612 Demi-env. sup.ar*half-env.up.rr |
514053612 |
US $48.93 |
||
|
27
|
27
514053613 Demi-env. inf.ar*half-env.low. rr.assy |
514053613 |
US $48.93 |
||
|
28
|
28
514053584 Laine isolante *wooll insulating |
514053584 |
US $19.33 |
||
|
29
|
29
514053437 Languette *retaining strap |
514053437 |
US $10.17 |
||
|
30
|
30
514053500 Languette *retaining strap |
514053500 |
US $10.17 |
||
|
31
|
31
514053534 Languette *retaining strap |
514053534 |
US $12.19 |
||
|
32
|
32
514053535 Languette *retaining strap |
514053535 |
US $12.19 |
||
|
33
|
33
514053643 Ressort *spring |
514053643 |
US $9.13 |
||
|
34
|
34
514053536 Languette *retaining strap |
514053536 |
US $12.19 |
||
|
35
|
35
514053352 Butoir *bumper |
514053352 |
US $19.33 |
||
|
36
|
36
293150103 Pop rivet 3/16 |
293150103 |
US $18.25 |
||
|
37
|
37
415107100 Ressort *spring |
415107100 |
US $82.10 |
||
|
38
|
38
514053560 Feuille reflect*reflect. sheet |
514053560 |
US $12.19 |
||
|
39
|
39
514053622
Feuille reflect*refelct. sheet
|
514053622 |
— | ||
| replacements | |||||
|
39
|
39
514053912
Feuille reflect*refelct. sheet
|
514053912 |
— | ||
|
39
|
39
514053913
Feuille reflect*refelct. sheet
|
514053913 |
— | ||
|
40
|
40
514053561 Feuille reflect*reflect. sheet |
514053561 |
US $16.29 |
||
|
41
|
41
514053392 Feuille reflect*sheet-reflect |
514053392 |
US $9.13 |
||
|
42
|
42
514053562 Feuille reflect*reflect. sheet |
514053562 |
US $12.19 |
||
|
43
|
43
514049700 Attache ressort*bracket spring |
514049700 |
US $6.07 |
||
|
44
|
44
514053725 Attache ressort*bracket spring |
514053725 |
US $8.13 |
||
|
45
|
45
514053393 Attache ressort*brachet-spring |
514053393 |
US $11.17 |
||
|
46
|
46
390402200
Rivet-pop 3/16 *rivet-pop 3/16
|
390402200 |
— | ||
| replacement | |||||
|
46
|
46
293150293 Rivet-pop 3/16 *rivet-pop 3/16 |
293150293 |
US $24 |
||
|
47
|
47
514053673 Feuille reflect*reflect. sheet |
514053673 |
US $10.17 |
||
|
48
|
48
514053812 Joint echapp. *exhaust gasket |
514053812 |
US $23.41 |
||
|
49
|
49
514053872
Plaque acousti.*acoustic plate
GSX 800 HO; |
514053872 |
— | ||
|
50
|
50
514053875
Mousse acousti.*acoustic foam
GSX 800 HO; |
514053875 |
— | ||
|
51
|
51
390402200
Rivet-pop 3/16 *rivet-pop 3/16
GSX 800 HO; |
390402200 |
— | ||
| replacement | |||||
|
51
|
51
293150293 Rivet-pop 3/16 *rivet-pop 3/16GSX 800 HO; |
293150293 |
US $24 |
||
|
52
|
52
514053876 Deflecteur chal*heat deflectorGSX 800 HO; |
514053876 |
US $12.19 |
||
|
53
|
53
207662044 Screw-hex.flange din.6921GSX 800 HO; |
207662044 |
US $65 |
||
|
54
|
54
232561414 Nut-stop elastic din.985GSX 800 HO; |
232561414 |
US $7.10 |
||
