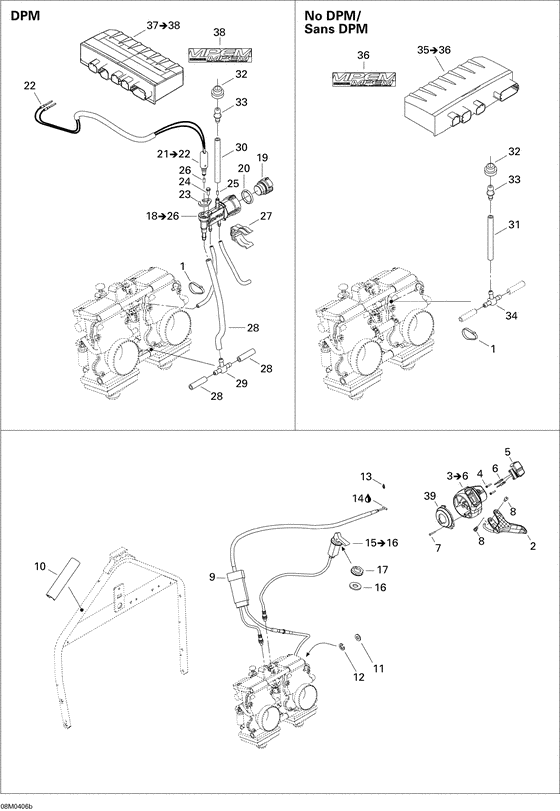

01- mem, dpm and throttle Diagram Bombardier GSX
- Year
- 2004
- Sales region
- General
- Model
- GSX 500SS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
512059931 Anneau *grommetNo DPM / GSX 500 SS / GSX 600 H0; |
512059931 |
US $9.50 |
||
|
|
293710035 Raccord droit *fitting-straigNo DPM / GSX 500 SS / GSX 600 H0; |
293710035 |
US $9.76 |
||
|
|
512059852 Module calibre *calib. moduleINCLUDES ITEMS 35 TO 36 / GSX 600 H0; |
512059852 |
US $838.41 |
||
|
1
|
1
293750001 Tie rap 94mm *tie-rap 94mm |
293750001 |
US $66.50 |
||
|
2
|
2
512059766
Manette ass. *handle-assy
|
512059766 |
— | ||
| replacement | |||||
|
2
|
2
512060302
Manette ass. *handle-assy
|
512060302 |
— | ||
|
3
|
3
512059810
Logement *housing
INCLUDES ITEMS 3 TO 6; |
512059810 |
— | ||
| replacement | |||||
|
3
|
3
512060121 Logement *housingINCLUDES ITEMS 3 TO 6; |
512060121 |
US $46.89 |
||
|
4
|
4
250000098 Screw-thread cut.ph.pan din.7981 |
250000098 |
US $13.95 |
||
|
5
|
5
415128683
Inter.urgence *kill switch
|
415128683 |
— | ||
| replacement | |||||
|
5
|
5
512060121 Logement *housing |
512060121 |
US $46.89 |
||
|
6
|
6
515175232 Cosse male *terminal-male |
515175232 |
US $20.10 |
||
|
7
|
7
250000098 Screw-thread cut.ph.pan din.7981 |
250000098 |
US $13.95 |
||
|
8
|
8
732601143 Screw-shoulder |
732601143 |
US $38.90 |
||
|
9
|
9
512059856
Cable accelerat*throttle cable
|
512059856 |
— | ||
| replacement | |||||
|
9
|
9
512060085 Cable accelerat*throttle cable |
512060085 |
US $79.53 |
||
|
10
|
10
512059750 Protecteur *protector |
512059750 |
US $8.13 |
||
|
11
|
11
234081100 Washer-flat din.125a |
234081100 |
US $9.10 |
||
|
12
|
12
414753500 Circlip-type bs n |
414753500 |
US $9.20 |
||
|
13
|
13
414274500 Circlip-black chromate |
414274500 |
US $11.70 |
||
|
14
|
14
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
15
|
15
512059266 Cable etrang. *cable-chokeINCLUDES ITEMS 15 TO 16; |
512059266 |
US $82.57 |
||
|
16
|
16
394103300
Washer-lock int.teeth
|
394103300 |
— | ||
|
17
|
17
512059094 Ecrou plastique*nut-plastic |
512059094 |
US $5.87 |
||
|
18
|
18
512059700
Collect.pres.as*pression manif. assy
INCLUDES ITEMS 18 TO 26 / DPM / GSX 800 HO; |
512059700 |
— | ||
| replacement | |||||
|
18
|
18
512060002 Collect.pres.as*pression manif. assyINCLUDES ITEMS 18 TO 26 / DPM / GSX 800 HO; |
512060002 |
US $241.69 |
||
|
19
|
19
270600009 Capuchon *cap |
270600009 |
US $7.31 |
||
|
20
|
20
293300042 Joint torique *o-ring |
293300042 |
US $8.45 |
||
|
21
|
21
515175701 Cablage collect*harness-press.manif.INCLUDES ITEMS 21 TO 22; |
515175701 |
US $79.53 |
||
|
22
|
22
278001665 Cosse femelle *terminal-femal |
278001665 |
US $5.87 |
||
|
23
|
23
415061600 Barrure electr.*lock-solenoid |
415061600 |
US $8.13 |
||
|
24
|
24
241140060 Screw-pt.hex.flange k40 x 10 |
241140060 |
US $9.60 |
||
|
26
|
26
404161825
Gicleur lanceur*starter-jet
|
404161825 |
— | ||
|
27
|
27
512058919 Support *supportDPM / GSX 800 HO; |
512058919 |
US $14.25 |
||
|
28
|
28
415080200
Boyau polyure *polyurethane hose
DPM / GSX 800 HO; |
415080200 |
— | ||
|
29
|
29
414729300 Raccord en t *fitting-tDPM / GSX 800 HO; |
414729300 |
US $11.80 |
||
|
30
|
30
415080200
Boyau polyure *polyurethane hose
DPM / GSX 800 HO; |
415080200 |
— | ||
|
31
|
31
415080200
Boyau polyure *polyurethane hose
No DPM / GSX 500 SS / GSX 600 H0; |
415080200 |
— | ||
|
32
|
32
512059931 Anneau *grommetDPM / GSX 800 HO; |
512059931 |
US $9.50 |
||
|
33
|
33
293710035 Raccord droit *fitting-straigDPM / GSX 800 HO; |
293710035 |
US $9.76 |
||
|
34
|
34
572045500 Raccord t 4-6-4*fitting-t 4-6-4No DPM / GSX 500 SS / GSX 600 H0; |
572045500 |
US $35.45 |
||
|
35
|
35
512059850
Module calibre *calib. module
INCLUDES ITEMS 35 TO 36 / GSX 500 SS; |
512059850 |
— | ||
|
36
|
36
516000245
Decal.boit.elec*decal.-elect.box
|
516000245 |
— | ||
|
37
|
37
512059853
Module calibre *calib. module
INCLUDES ITEMS 37 TO 38 / GSX 800 HO; |
512059853 |
— | ||
|
38
|
38
516000245
Decal.boit.elec*decal.-elect.box
|
516000245 |
— | ||
|
39
|
39
512059698 Couvercle *cover |
512059698 |
US $11.17 |
||
