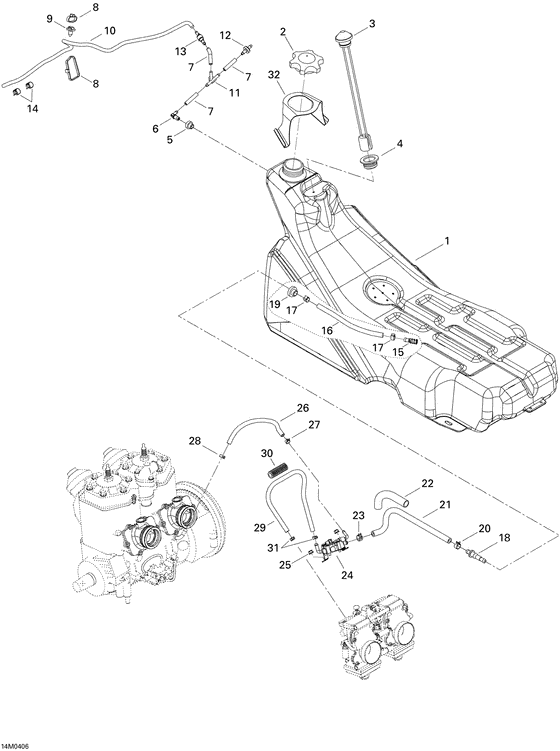

02- fuel system Diagram Bombardier GSX
- Year
- 2004
- Sales region
- General
- Model
- GSX 500SS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
513033080
Reservoir essen*fuel tank
GSX 500 SS / GSX 600 HO; |
513033080 |
— | ||
| replacement | |||||
|
|
513033171 Reservoir essen*fuel tankGSX 500 SS / GSX 600 HO; |
513033171 |
US $264.15 |
||
|
|
513033025 Bouchon *capGSX 500 SS / GSX 600 HO; |
513033025 |
US $27.27 |
||
|
1
|
1
513033077
Reservoir essen*fuel tank
GSX 800 HO; |
513033077 |
— | ||
|
2
|
2
513033024
Bouchon essence*cap-fuel
GSX 800 HO; |
513033024 |
— | ||
|
3
|
3
513033092
Indicat.essence*fuel gauge
GSX 500 SS / GSX 600 HO; |
513033092 |
— | ||
|
4
|
4
293720058 Passe-fils *grommetGSX 500 SS / GSX 600 HO; |
293720058 |
US $12.43 |
||
|
5
|
5
513032908 Passe-fils *grommet |
513032908 |
US $98.80 |
||
|
6
|
6
414580700 Raccord male *connector-male |
414580700 |
US $26.60 |
||
|
7
|
7
415080200
Boyau polyure *polyurethane hose
|
415080200 |
— | ||
|
8
|
8
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
9
|
9
293730018 Dard d ancrage *dart-mount |
293730018 |
US $4.95 |
||
|
10
|
10
415080200
Boyau polyure *polyurethane hose
|
415080200 |
— | ||
|
11
|
11
293710059 Raccord en y *y-connector |
293710059 |
US $10.97 |
||
|
12
|
12
275500398 Soupape retenue*valve-check |
275500398 |
from US $12.38 |
||
|
13
|
13
275500505 Soupape retenue*valve-check |
275500505 |
US $27.56 |
||
|
14
|
14
414554800 Bride a ressort*clamp-spring |
414554800 |
US $11.70 |
||
|
15
|
15
414872100 Crepine *filter-fuel |
414872100 |
US $14.03 |
||
|
16
|
16
513033070 Boyau polyure *hose-polyurethane |
513033070 |
US $12.22 |
||
|
17
|
17
513033010 Bride serrage *clamp |
513033010 |
US $42.75 |
||
|
18
|
18
414872700 Raccord male *connector-male |
414872700 |
US $9.80 |
||
|
19
|
19
570273900 Passe-fils *grommet |
570273900 |
US $11.76 |
||
|
20
|
20
513032979 Bride a ressort*clamp-spring |
513032979 |
US $194.50 |
||
|
21
|
21
513033027
Boyau forme *hose-formed
|
513033027 |
— | ||
|
22
|
22
415080000
Gaine *protector tube
|
415080000 |
— | ||
|
23
|
23
513032979 Bride a ressort*clamp-spring |
513032979 |
US $194.50 |
||
|
24
|
24
403901812 Pompe a essence*pump-fuel |
403901812 |
US $126.45 |
||
|
25
|
25
233261414 Nut-flange elastic din.6926 |
233261414 |
US $20.10 |
||
|
26
|
26
513033035 Boyau forme *hose-formed |
513033035 |
US $23.41 |
||
|
27
|
27
414415200 Bride a ressort*clamp-spring |
414415200 |
US $11.70 |
||
|
28
|
28
513033029 Bride a ressort*clamp-spring |
513033029 |
US $7.24 |
||
|
29
|
29
415117800 Boyau forme *tube-formed |
415117800 |
US $13.21 |
||
|
30
|
30
415079900 Gaine *protector tube |
415079900 |
US $2.67 |
||
|
31
|
31
414420700 Bride a ressort*clamp-spring |
414420700 |
US $9.50 |
||
|
32
|
32
513033066 Bretelle *support |
513033066 |
US $15.90 |
||
