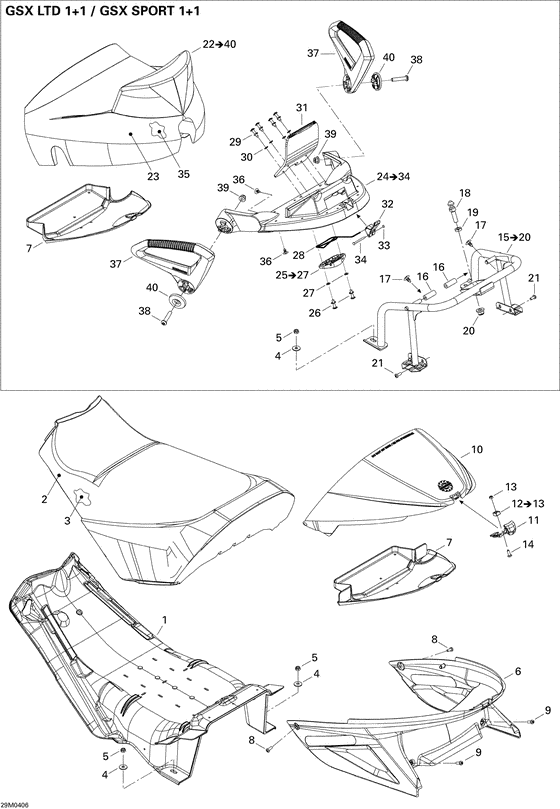

09- seat Diagram Bombardier GSX
- Year
- 2004
- Sales region
- General
- Model
- GSX 500SS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
510004237
Couvercle *cover
GSX LTD / GSX LTD 1+1 (SILVER); |
510004237 |
— | ||
|
|
510004238
Coffre *trunk
GSX LTD / GSX LTD 1+1 (SILVER); |
510004238 |
— | ||
|
|
510004291
Housse de siege*seat cover
GSX SPORT / GSX SPORT 1+1 (SILVER); |
510004291 |
— | ||
|
|
510004236
Fond coffre *liner-box
GSX SPORT 1+1; |
510004236 |
— | ||
|
|
510004285
Housse de siege*seat cover
GSX LTD / GSX LTD 1+1 (BLACK); |
510004285 |
— | ||
|
|
510004231
Fond coffre *liner-box
GSX LTD; |
510004231 |
— | ||
| replacement | |||||
|
|
510004600 Fond de coffre *liner-boxGSX LTD; |
510004600 |
US $16.29 |
||
|
|
510004287
Housse de siege*seat cover
GSX LTD / GSX LTD 1+1 (SILVER); |
510004287 |
— | ||
|
|
510004236
Fond coffre *liner-box
GSX LTD 1+1; |
510004236 |
— | ||
|
|
510004220 Support inf.as *supp-lower assyINCLUDES ITEMS 15 TO 20 / GSX LTD 1+1; |
510004220 |
US $265.17 |
||
|
|
510004294
Housse de siege*seat cover
GSX SPORT 1+1 (SILVER); |
510004294 |
— | ||
|
|
510004299
Housse de siege*seat cover
GSX LTD 1+1 (BLACK); |
510004299 |
— | ||
|
|
510004311
Couvercle *cover
GSX SPORT / GSX SPORT 1+1 (SILVER); |
510004311 |
— | ||
| replacement | |||||
|
|
510004631 Couvercle *coverGSX SPORT / GSX SPORT 1+1 (SILVER); |
510004631 |
US $71.35 |
||
|
|
510004230
Coffre *trunk
GSX SPORT / GSX SPORT 1+1 (SILVER); |
510004230 |
— | ||
| replacement | |||||
|
|
510004628 Coffre *trunkGSX SPORT / GSX SPORT 1+1 (SILVER); |
510004628 |
US $61.15 |
||
|
|
510004311
Couvercle *cover
GSX LTD / GSX LTD 1+1 (BLACK); |
510004311 |
— | ||
| replacement | |||||
|
|
510004631 Couvercle *coverGSX LTD / GSX LTD 1+1 (BLACK); |
510004631 |
US $71.35 |
||
|
|
510004230
Coffre *trunk
GSX LTD / GSX LTD 1+1 (BLACK); |
510004230 |
— | ||
| replacement | |||||
|
|
510004628 Coffre *trunkGSX LTD / GSX LTD 1+1 (BLACK); |
510004628 |
US $61.15 |
||
|
|
510004294
Housse de siege*seat cover
GSX LTD 1+1 (SILVER); |
510004294 |
— | ||
|
1
|
1
510004308
Base siege *base-seat
|
510004308 |
— | ||
|
2
|
2
510004289
Housse de siege*seat cover
GSX SPORT / GSX SPORT 1+1 (BLACK); |
510004289 |
— | ||
| replacement | |||||
|
2
|
2
510004591 Housse de siege*cover-seatGSX SPORT / GSX SPORT 1+1 (BLACK); |
510004591 |
US $305.97 |
||
|
3
|
3
510004275 Mousse de siege*foam-seat |
510004275 |
US $313.11 |
||
|
4
|
4
234082410 Washer-flat din.9021b |
234082410 |
US $18.40 |
||
|
5
|
5
232581414 Nut-stop elastic din.985 |
232581414 |
US $7.30 |
||
|
6
|
6
510004230
Coffre *trunk
GSX SPORT / GSX SPORT 1+1 (BLACK); |
510004230 |
— | ||
| replacement | |||||
|
6
|
6
510004628 Coffre *trunkGSX SPORT / GSX SPORT 1+1 (BLACK); |
510004628 |
US $61.15 |
||
|
7
|
7
510004231
Fond coffre *liner-box
GSX SPORT; |
510004231 |
— | ||
| replacement | |||||
|
7
|
7
510004600 Fond de coffre *liner-boxGSX SPORT; |
510004600 |
US $16.29 |
||
|
8
|
8
250000129 200x-truss m/s gm6047m nylon patch |
250000129 |
US $14.28 |
||
|
9
|
9
250000128
Torx-truss m/s gm6047m nylon patch
|
250000128 |
— | ||
|
10
|
10
510004311
Couvercle *cover
GSX SPORT / GSX SPORT 1+1 (BLACK); |
510004311 |
— | ||
| replacement | |||||
|
10
|
10
510004631 Couvercle *coverGSX SPORT / GSX SPORT 1+1 (BLACK); |
510004631 |
US $71.35 |
||
|
11
|
11
510003917
Attache *bracket
|
510003917 |
— | ||
|
12
|
12
269500252 Logement ecrou *housing-nut asINCLUDES ITEMS 12 TO 13; |
269500252 |
US $19.22 |
||
|
13
|
13
232061600 Nut-hexagonal din.934a2 |
232061600 |
US $7.40 |
||
|
14
|
14
250000129 200x-truss m/s gm6047m nylon patch |
250000129 |
US $14.28 |
||
|
15
|
15
510004220 Support inf.as *supp-lower assyINCLUDES ITEMS 15 TO 20 / GSX SPORT 1+1; |
510004220 |
US $265.17 |
||
|
16
|
16
415079800
Boyau 1/4 i.d. *hose-1/4 i.d.
|
415079800 |
— | ||
|
17
|
17
414644300 Dard pare-brise*dart-windshield 1=1 pac |
414644300 |
US $13.80 |
||
|
18
|
18
291001929
Ergot de siege *stud-seat
|
291001929 |
— | ||
|
19
|
19
232100600 Nut-jam hexagonal din.439b-a2 |
232100600 |
US $14.35 |
||
|
20
|
20
233201414 Nut-flange elastic din.6926 |
233201414 |
US $20.10 |
||
|
21
|
21
207661644 Screw-hex.flange din.6921GSX SPORT 1+1; |
207661644 |
US $23.75 |
||
|
23
|
23
510004299
Housse de siege*seat cover
GSX SPORT 1+1 (BLACK); |
510004299 |
— | ||
|
24
|
24
510004296
Support sup.ass*supp-upper assy
INCLUDES ITEMS 24 TO 34; |
510004296 |
— | ||
|
25
|
25
861001800
Ens. loquet 1+1*kit latch seat 1+1
INCLUDES ITEMS 25 TO 27; |
861001800 |
— | ||
|
26
|
26
293150074 Rivet-pop 1/4 *rivet-pop 1/4 |
293150074 |
US $8.44 |
||
|
27
|
27
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
28
|
28
510004075
Ressort *spring
|
510004075 |
— | ||
|
29
|
29
293150074 Rivet-pop 1/4 *rivet-pop 1/4 |
293150074 |
US $8.44 |
||
|
30
|
30
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
33
|
33
389804300 Ecrou pression *push-nut |
389804300 |
US $7.10 |
||
|
34
|
34
293150062 Rivet en acier *rivet-solid |
293150062 |
US $14.50 |
||
|
35
|
35
510004295
Mousse *foam
|
510004295 |
— | ||
|
36
|
36
414644300 Dard pare-brise*dart-windshield 1=1 pac |
414644300 |
US $13.80 |
||
|
37
|
37
510004074
Poignee passage*pass. handle
|
510004074 |
— | ||
| replacement | |||||
|
37
|
37
510004699
Poignee passage*pass. handle
|
510004699 |
— | ||
|
38
|
38
205405086
Screw-socket bn.hd.iso.7380
|
205405086 |
— | ||
|
39
|
39
233201414 Nut-flange elastic din.6926 |
233201414 |
US $20.10 |
||
|
40
|
40
510004109
Enjoliveur *moulding
|
510004109 |
— | ||
