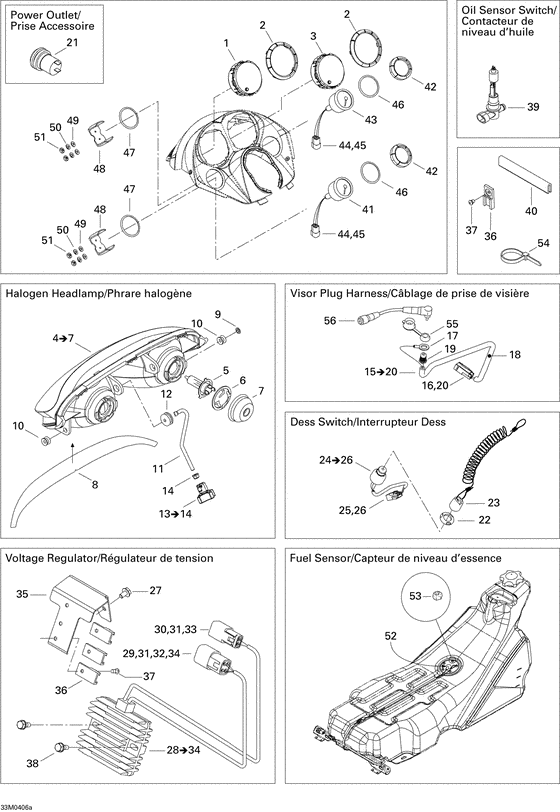

10- electrical system 1 Diagram Bombardier GSX
- Year
- 2004
- Sales region
- General
- Model
- GSX 500SS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
293750009 Tie rap 173mm *tie-rap 173mm |
293750009 |
US $6.70 |
||
|
|
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
|
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
|
1
|
1
515176001
Ind.vitesse *speedometer
|
515176001 |
— | ||
| replacement | |||||
|
1
|
1
515176263
Ind.vitesse *speedometer
|
515176263 |
— | ||
|
2
|
2
515175651
Anneau cadran *ring-gauge
|
515175651 |
— | ||
| replacement | |||||
|
2
|
2
515176242 Ring - gauge |
515176242 |
US $14.55 |
||
|
3
|
3
515176072
Compte-tours *tachometer
|
515176072 |
— | ||
|
4
|
4
515175909
Phare halogene *headlamp-halo.
INCLUDES ITEMS 4 TO 7; |
515175909 |
— | ||
| replacement | |||||
|
4
|
4
515176311 Phare halogene *headlamp-halo.INCLUDES ITEMS 4 TO 7; |
515176311 |
US $264.15 |
||
|
5
|
5
410504401
Ampoule halogen*bulb-hal.h4
|
410504401 |
— | ||
|
6
|
6
515175910 Porte ampoule *bulb holder |
515175910 |
US $14.67 |
||
|
7
|
7
515175911 Couvercle *cover |
515175911 |
US $15.73 |
||
|
8
|
8
516001328 Decalque phare *decal-headlamp |
516001328 |
US $5.07 |
||
|
9
|
9
732610072 Nut-push |
732610072 |
US $28.60 |
||
|
10
|
10
515175760 Coussinet phare*bushing-headlamp |
515175760 |
US $38.85 |
||
|
11
|
11
515175521 Tige ajustement*rod-adjuster |
515175521 |
US $16.76 |
||
|
12
|
12
415100800 Grommet |
415100800 |
US $5.20 |
||
|
13
|
13
515175975 Manette *handleINCLUDES ITEMS 13 TO 14; |
515175975 |
US $9.40 |
||
|
14
|
14
233261414 Nut-flange elastic din.6926 |
233261414 |
US $20.10 |
||
|
15
|
15
515175799
Cablage pr.vis.*harness-pl.vis
INCLUDES ITEMS 15 TO 20; |
515175799 |
— | ||
|
16
|
16
515175232 Cosse male *terminal-male |
515175232 |
US $20.10 |
||
|
17
|
17
515175172 Cosse a anneau *barrel-open |
515175172 |
US $17.82 |
||
|
18
|
18
515175332 Gaine low temp.vinyl |
515175332 |
US $18.78 |
||
|
19
|
19
415096100
New Genuine Part
|
415096100 |
— | ||
|
20
|
20
515175654 Logement male *housing-male |
515175654 |
US $9.76 |
||
|
21
|
21
861507200 Ens.prise 12vo.*kit-power outletGSX 800 HO; |
861507200 |
US $40.92 |
||
|
22
|
22
278000508
Ecrou securite *nut-saf.switch
|
278000508 |
— | ||
|
23
|
23
515166900
Capuchon dess *cap-dess.
|
515166900 |
— | ||
| replacement | |||||
|
23
|
23
515176461
Capuchon dess *cap-dess.
|
515176461 |
— | ||
|
24
|
24
515175797
Switch-dess
INCLUDES ITEMS 24 TO 26; |
515175797 |
— | ||
|
25
|
25
515175232 Cosse male *terminal-male |
515175232 |
US $20.10 |
||
|
26
|
26
515175494 Logement male *housing-male |
515175494 |
US $90.60 |
||
|
27
|
27
210261080 Screw-forming hex.hd.fl.din.7500d |
210261080 |
US $16.30 |
||
|
28
|
28
515176100
Regu.tension *regulator-volt
INCLUDES ITEMS 28 TO 34; |
515176100 |
— | ||
|
29
|
29
278001477 Bloc 4 circ.fem*housing-tab |
278001477 |
US $62.27 |
||
|
30
|
30
278001674 Bloc 2 circ.fem*housing-tab |
278001674 |
US $34.10 |
||
|
31
|
31
515175568 Terminal male *treminal-male |
515175568 |
US $9.76 |
||
|
32
|
32
278001478 Cale 4 circ.mal*wedge-4 ways m |
278001478 |
US $28.80 |
||
|
33
|
33
278001672 Cale 2 circ.mal*wedge-2 ways m |
278001672 |
US $4.49 |
||
|
34
|
34
293000052 Bouchon etanche*cap-sealing |
293000052 |
US $21.15 |
||
|
35
|
35
515175916
Support logem. *housing support
|
515175916 |
— | ||
|
36
|
36
515175917 Clip *clip |
515175917 |
US $11.17 |
||
|
37
|
37
293150037 Rivet avdel *rivet-avdel 3/16 |
293150037 |
US $7.30 |
||
|
38
|
38
210262080 Screw-forming hex.hd.fl.gm6174m |
210262080 |
US $2.72 |
||
|
39
|
39
515176016
Conct.niveau *switch-level
|
515176016 |
— | ||
| replacement | |||||
|
39
|
39
515176327 Conct.niveau *switch-level |
515176327 |
US $64.23 |
||
|
40
|
40
509000263 Garniture *trime |
509000263 |
US $7.09 |
||
|
41
|
41
515175601
Indicateur temp*gauge-temp.
GSX 800 HO; |
515175601 |
— | ||
|
42
|
42
515175711 Anneau cadran *ring-gaugeGSX 800 HO; |
515175711 |
US $27.29 |
||
|
43
|
43
515175529 Indicateur ess.*gauge-fuelGSX 800 HO; |
515175529 |
US $264.15 |
||
|
44
|
44
409210000 Cosse male *terminal-maleGSX 800 HO; |
409210000 |
US $58.30 |
||
|
45
|
45
409204200 Logement male *housing-maleGSX 800 HO; |
409204200 |
US $50.70 |
||
|
46
|
46
414807200 Joint torique *packingGSX 800 HO; |
414807200 |
US $20.75 |
||
|
47
|
47
517258600 Rondelle formee*washerGSX 800 HO; |
517258600 |
US $7.31 |
||
|
48
|
48
414806600
Support boitier*holder-case
GSX 800 HO; |
414806600 |
— | ||
|
49
|
49
391301700
Rondelle *washer
GSX 800 HO; |
391301700 |
— | ||
|
50
|
50
414833700 Washer-lock gaugeGSX 800 HO; |
414833700 |
US $1.96 |
||
|
51
|
51
414833600 Ecrou gauge *nut-gaugeGSX 800 HO; |
414833600 |
US $9.80 |
||
|
52
|
52
515175522 Capt.niv.ess. *sensor-fuelGSX 800 HO; |
515175522 |
US $187.65 |
||
|
53
|
53
232551414 Nut-stop elastic din.985GSX 800 HO; |
232551414 |
US $11.20 |
||
|
54
|
54
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
55
|
55
572103300 Capuchon *cap |
572103300 |
US $10.90 |
||
|
56
|
56
515175851 Rallonge *extension |
515175851 |
US $12.29 |
||
