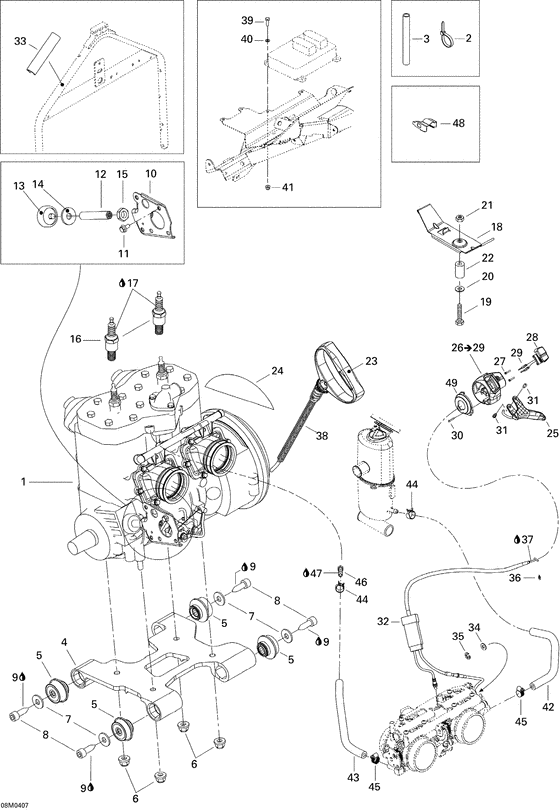

01- engine assembly and support Diagram Bombardier GSX
- Year
- 2004
- Sales region
- General
- Model
- GSX 600 HO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
400509751
Moteur 593 *engine-593
|
400509751 |
— | ||
|
2
|
2
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
3
|
3
415080000
Gaine *protector tube
|
415080000 |
— | ||
|
4
|
4
512059754
Socle *engine support
|
512059754 |
— | ||
|
5
|
5
512059691 Tampon ancrage *rubber mount |
512059691 |
US $53.86 |
||
|
6
|
6
233201414 Nut-flange elastic din.6926 |
233201414 |
US $20.10 |
||
|
7
|
7
506151251 Rondelle *washer |
506151251 |
US $1.96 |
||
|
8
|
8
250000094 Engine screw m10 x 30 |
250000094 |
US $27.27 |
||
|
9
|
9
413703400 Loctite 222ms *loctite-222ms |
413703400 |
US $19.33 |
||
|
10
|
10
512059840 Plaque app.pein*plate-paint |
512059840 |
US $39.73 |
||
|
11
|
11
207561244 Screw-hex.flange din.6921 s.grip |
207561244 |
US $2.45 |
||
|
12
|
12
250500007 Vis d arret *screw-stopper |
250500007 |
US $27.49 |
||
|
13
|
13
512059610
Butee *stopper
|
512059610 |
— | ||
|
14
|
14
512059057 Rondelle *washer |
512059057 |
US $19.60 |
||
|
15
|
15
232170411 Nut-jam hexagonal din.439b |
232170411 |
US $9.60 |
||
|
16
|
16
415128524 Bougie br9ecs *plug-spark br9ecs |
415128524 |
US $116.80 |
||
|
17
|
17
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
18
|
18
512059865 Support bob.all*support coil |
512059865 |
US $3.83 |
||
|
19
|
19
207064544 Screw-hex.cap din.931 |
207064544 |
US $27 |
||
|
20
|
20
234061410 Washer-flat m6 din.125a |
234061410 |
US $17.20 |
||
|
21
|
21
232561414 Nut-stop elastic din.985 |
232561414 |
US $7.10 |
||
|
22
|
22
512059812 Entretoise *spacer |
512059812 |
US $10.17 |
||
|
23
|
23
572084400 Poignee demar. *grip-starter |
572084400 |
US $14.25 |
||
|
24
|
24
512059893 Feuille reflect*sheet-reflect |
512059893 |
US $8.13 |
||
|
25
|
25
512059766
Manette ass. *handle-assy
|
512059766 |
— | ||
| replacement | |||||
|
25
|
25
512060302
Manette ass. *handle-assy
|
512060302 |
— | ||
|
26
|
26
512059810
Logement *housing
Includes 26 to 29; |
512059810 |
— | ||
| replacement | |||||
|
26
|
26
512060121 Logement *housingIncludes 26 to 29; |
512060121 |
US $46.89 |
||
|
27
|
27
250000098 Screw-thread cut.ph.pan din.7981 |
250000098 |
US $13.95 |
||
|
28
|
28
415128683
Inter.urgence *kill switch
|
415128683 |
— | ||
| replacement | |||||
|
28
|
28
512060121 Logement *housing |
512060121 |
US $46.89 |
||
|
29
|
29
515175232 Cosse male *terminal-male |
515175232 |
US $20.10 |
||
|
30
|
30
250000098 Screw-thread cut.ph.pan din.7981 |
250000098 |
US $13.95 |
||
|
31
|
31
732601143 Screw-shoulder |
732601143 |
US $38.90 |
||
|
32
|
32
512059765
Cable accelerat*cable throttle
|
512059765 |
— | ||
|
33
|
33
512059750 Protecteur *protector |
512059750 |
US $8.13 |
||
|
34
|
34
234081100 Washer-flat din.125a |
234081100 |
US $9.10 |
||
|
35
|
35
414753500 Circlip-type bs n |
414753500 |
US $9.20 |
||
|
36
|
36
414274500 Circlip-black chromate |
414274500 |
US $11.70 |
||
|
37
|
37
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
38
|
38
512059535 Guide corde *guide-rope |
512059535 |
US $13.45 |
||
|
39
|
39
207151644 Screw-hex.cap din.933 |
207151644 |
US $11.70 |
||
|
40
|
40
234051410 Washer-flat din.125a |
234051410 |
US $6.80 |
||
|
41
|
41
233251414 Nut-flange elastic din.6926 |
233251414 |
US $5.36 |
||
|
42
|
42
512059563 Boyau forme *hose-formed |
512059563 |
US $16.29 |
||
|
43
|
43
512059892
Boyau forme *hose-formed
|
512059892 |
— | ||
|
44
|
44
414655700 Bride a ressort*clamp-spring |
414655700 |
US $9.50 |
||
|
45
|
45
293650128
Bride serrage *hose clamp
|
293650128 |
— | ||
| replacement | |||||
|
45
|
45
293650170 Bride serrage *hose clamp |
293650170 |
US $27.20 |
||
|
46
|
46
293710082 Raccord droit *fitting-straight |
293710082 |
US $8.13 |
||
|
47
|
47
293800018 Scellant tuyau *sealant-pipe |
293800018 |
US $38.71 |
||
|
48
|
48
512059809
Support *support
|
512059809 |
— | ||
|
49
|
49
512059698 Couvercle *cover |
512059698 |
US $11.17 |
||
