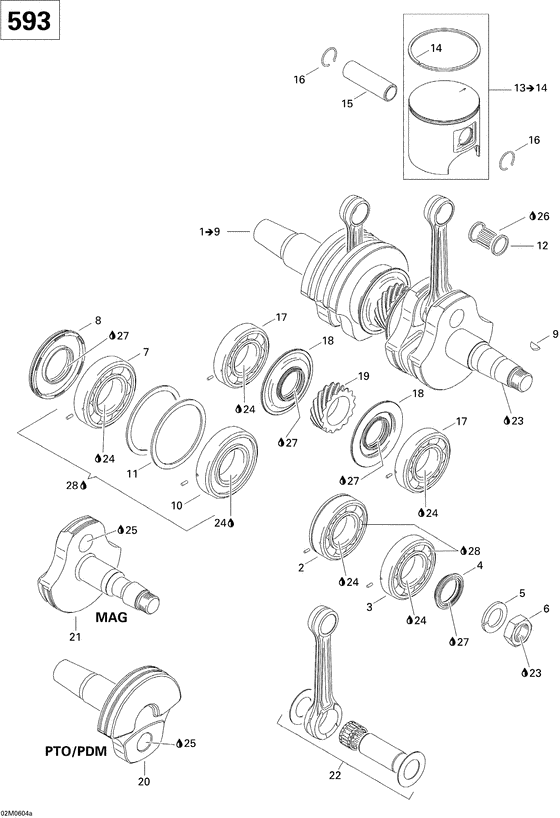

01- crankshaft and pistons 593 Diagram Bombardier GTX
- Year
- 2006
- Sales region
- General
- Model
- GTX 500SS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
420888759
Vilebrequin ass*crankshaft ass y
Includes 1 to 9; |
420888759 |
— | ||
| replacement | |||||
|
1
|
1
420890971 Vilebrequin ass*crankshaft ass yIncludes 1 to 9; |
420890971 |
US $663.61 |
||
|
2
|
2
420832596 Roulement bille*ball bearing |
420832596 |
US $107.49 |
||
|
3
|
3
420832590 Roulement bille*ball bearing |
420832590 |
US $53.72 |
||
|
4
|
4
420931792
Anneau etanche *seal-oil
|
420931792 |
— | ||
| replacement | |||||
|
4
|
4
420931795 SEAL-OIL |
420931795 |
US $19.52 |
||
|
5
|
5
420945759 Rondelle-frein *washer-lock 22 |
420945759 |
US $24.50 |
||
|
6
|
6
420842234
Nut-hex.m22 x 1,5
|
420842234 |
— | ||
|
7
|
7
420832575 Roulement bille*ball bearing |
420832575 |
US $58.62 |
||
|
8
|
8
420831952 Anneau etanche *seal-oil |
420831952 |
US $19.43 |
||
|
9
|
9
420246015 Clavette *key-woodruff |
420246015 |
US $3.60 |
||
|
10
|
10
420832638
Ball bearing
|
420832638 |
— | ||
| replacement | |||||
|
10
|
10
420832633 Roulement bille*ball bearing |
420832633 |
US $112.37 |
||
|
11
|
11
420927710 Disque retenue *disk-retaining |
420927710 |
US $9.45 |
||
|
12
|
12
420832428
Roul.aiguille *needle bearing
|
420832428 |
— | ||
| replacement | |||||
|
12
|
12
420832445 Roul.aiguille *needle bearing |
420832445 |
US $33.20 |
||
|
13
|
13
420889171
Piston 76,13 (0.25 O/S)
Includes 13 to 14; |
420889171 |
— | ||
| replacement | |||||
|
13
|
13
420889174 PISTON ASS#Y, 76.13 MM, OVERSIZEIncludes 13 to 14; |
420889174 |
US $175.97 |
||
|
13
|
13
420889170
Piston 75,88 (STD.)
Includes 13 to 14; |
420889170 |
— | ||
| replacement | |||||
|
13
|
13
420889173 PISTON ASS#Y, 75.88 MM, STANDARDIncludes 13 to 14; |
420889173 |
US $203.58 |
||
|
14
|
14
420815155 Segment semi-tr*ring-semi trap 76 mm |
420815155 |
US $63.16 |
||
|
14
|
14
420815156 Segment semi-tr*ring-semi trap 76.25 mm |
420815156 |
US $61.15 |
||
|
15
|
15
420916410
Axe de piston *pin-gudgeon
|
420916410 |
— | ||
| replacement | |||||
|
15
|
15
420916412 Axe de piston *piston pin |
420916412 |
US $39.08 |
||
|
16
|
16
420845106 Circlip piston *circlip-piston |
420845106 |
from US $6.66 |
||
|
17
|
17
420832590 Roulement bille*ball bearing |
420832590 |
US $53.72 |
||
|
18
|
18
420931940 Anneau etanche *seal-oil |
420931940 |
US $34.10 |
||
|
19
|
19
420834350 Engrenage cent.*gear-central |
420834350 |
US $92.77 |
||
|
20
|
20
420818664
Vilebrequin pto*crankshaft-pto
|
420818664 |
— | ||
|
21
|
21
420818693
Vilebrequin mag*crankshaft-mag
|
420818693 |
— | ||
|
22
|
22
420888753
Ens.tige rep. *kit-rod repair
|
420888753 |
— | ||
| replacement | |||||
|
22
|
22
420890973 Ens.tige rep. *kit-rod repair |
420890973 |
US $324.50 |
||
|
22
|
22
420888754
Ens.tige rep. *kit-rod repair
|
420888754 |
— | ||
|
23
|
23
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
24
|
24
293800070 Loct.anti grip.*loct-antiseize |
293800070 |
US $40.78 |
||
|
25
|
25
413711400
Loctite 648 *loctite-648
|
413711400 |
— | ||
|
26
|
26
413802900
Huile 2t 12x1 min+r* oil 2t 12x1 mineral
|
413802900 |
— | ||
| replacement | |||||
|
26
|
26
293600117 Huile 2t 12x1 *oil 2t 12x1 mineral |
293600117 |
US $15.64 |
||
|
27
|
27
420899271 Graisse *grease |
420899271 |
US $83.84 |
||
|
28
|
28
293550021 Graisse isoflex*grease-isoflex |
293550021 |
US $70.19 |
||
