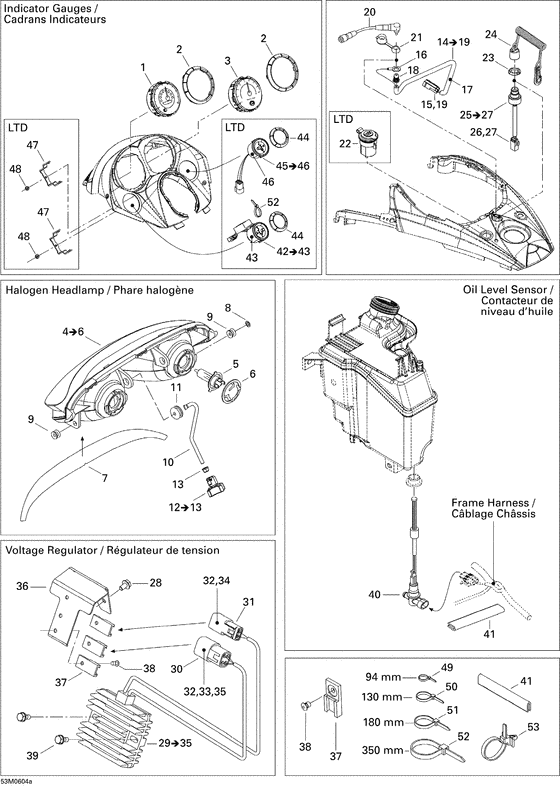

10- electrical accessories ltd 1 Diagram Bombardier GTX
- Year
- 2006
- Sales region
- General
- Model
- GTX 600 HO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
515176302 Ind.vitesse *speedometer |
515176302 |
US $436.53 |
||
|
2
|
2
515176180 Anneau cadran *ring-gaugeSeashore-Earth Grey; |
515176180 |
US $14.67 |
||
|
2
|
2
515176242 Ring - gaugeBlack-Black; |
515176242 |
US $14.55 |
||
| replacement | |||||
|
2
|
2
515179005 Gauge RingBlack-Black; |
515179005 |
US $14.64 |
||
|
3
|
3
515176303 Compte-tours *tachometer |
515176303 |
US $166.21 |
||
|
4
|
4
515176311 Phare halogene *headlamp-halo.Includes 4 to 6; |
515176311 |
US $264.15 |
||
|
5
|
5
515176274 Ampoule halogen*bulb-hal.h4 |
515176274 |
US $25.31 |
||
|
6
|
6
515176385 Porte ampoule *bulb holder |
515176385 |
US $12.58 |
||
|
7
|
7
516001328 Decalque phare *decal-headlamp |
516001328 |
US $5.07 |
||
|
8
|
8
732610072 Nut-push |
732610072 |
US $28.60 |
||
|
9
|
9
515175760 Coussinet phare*bushing-headlamp |
515175760 |
US $38.85 |
||
|
10
|
10
515175521 Tige ajustement*rod-adjuster |
515175521 |
US $16.76 |
||
|
11
|
11
415100800 Grommet |
415100800 |
US $5.20 |
||
|
12
|
12
515175975 Manette *handleIncludes 12 to 13; |
515175975 |
US $9.40 |
||
|
13
|
13
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
14
|
14
515175799
Cablage pr.vis.*harness-pl.vis
Includes 14 to 19; |
515175799 |
— | ||
|
15
|
15
515175232 Cosse male *terminal-male |
515175232 |
US $20.10 |
||
|
16
|
16
515175172 Cosse a anneau *barrel-open |
515175172 |
US $17.82 |
||
|
17
|
17
515175332 Gaine low temp.vinyl |
515175332 |
US $18.78 |
||
|
18
|
18
415096100
New Genuine Part
|
415096100 |
— | ||
|
19
|
19
515175654 Logement male *housing-male |
515175654 |
US $9.76 |
||
|
20
|
20
515175851 Rallonge *extension |
515175851 |
US $12.29 |
||
|
21
|
21
572103300 Capuchon *cap |
572103300 |
US $10.90 |
||
|
22
|
22
861507200 Ens.prise 12vo.*kit-power outlet |
861507200 |
US $40.92 |
||
|
23
|
23
278000508
Ecrou securite *nut-saf.switch
|
278000508 |
— | ||
|
24
|
24
515176446
Capuchon dess *cap-dess.
|
515176446 |
— | ||
| replacement | |||||
|
24
|
24
515176461
Capuchon dess *cap-dess.
|
515176461 |
— | ||
|
25
|
25
515175797
Switch-dess
Includes 25 to 27; |
515175797 |
— | ||
|
26
|
26
515175232 Cosse male *terminal-male |
515175232 |
US $20.10 |
||
|
27
|
27
515175494 Logement male *housing-male |
515175494 |
US $90.60 |
||
|
28
|
28
210261080 Screw-forming hex.hd.fl.din.7500d |
210261080 |
US $16.30 |
||
|
29
|
29
515175968 Regu.tension *regulator-voltIncludes 29 to 35; |
515175968 |
US $230.49 |
||
|
30
|
30
278001477 Bloc 4 circ.fem*housing-tab |
278001477 |
US $62.27 |
||
|
31
|
31
278001674 Bloc 2 circ.fem*housing-tab |
278001674 |
US $34.10 |
||
|
32
|
32
515175568 Terminal male *treminal-male |
515175568 |
US $9.76 |
||
|
33
|
33
278001478 Cale 4 circ.mal*wedge-4 ways m |
278001478 |
US $28.80 |
||
|
34
|
34
278001672 Cale 2 circ.mal*wedge-2 ways m |
278001672 |
US $4.49 |
||
|
35
|
35
293000052 Bouchon etanche*cap-sealing |
293000052 |
US $21.15 |
||
|
36
|
36
515176191 Support logem. *housing support |
515176191 |
US $9.40 |
||
|
37
|
37
515175917 Clip *clip |
515175917 |
US $11.17 |
||
|
38
|
38
293150037 Rivet avdel *rivet-avdel 3/16 |
293150037 |
US $7.30 |
||
|
39
|
39
210262080 Screw-forming hex.hd.fl.gm6174m |
210262080 |
US $2.72 |
||
|
40
|
40
515176327 Conct.niveau *switch-level |
515176327 |
US $64.23 |
||
|
41
|
41
509000263 Garniture *trime |
509000263 |
US $7.09 |
||
|
42
|
42
515176214
Gauge-temperature
Includes 42 to 43; |
515176214 |
— | ||
|
43
|
43
415128974 Ampoule cadran *bulb-meter |
415128974 |
US $5.30 |
||
|
44
|
44
515176181 Anneau cadran *ring-gaugeSeashore-Earth Grey; |
515176181 |
US $11.49 |
||
|
44
|
44
515176216
Anneau cadran *ring-gauge
Black-Black; |
515176216 |
— | ||
|
45
|
45
515176215 Gauge-fuelIncludes 45 to 46; |
515176215 |
US $128.49 |
||
|
46
|
46
415128974 Ampoule cadran *bulb-meter |
415128974 |
US $5.30 |
||
|
47
|
47
515176235 Holder case - temp.gauge |
515176235 |
US $9.40 |
||
|
48
|
48
515176236 Nut lock |
515176236 |
US $4.15 |
||
|
49
|
49
293750001 Tie rap 94mm *tie-rap 94mm |
293750001 |
US $66.50 |
||
|
50
|
50
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
51
|
51
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
52
|
52
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
|
53
|
53
293750009 Tie rap 173mm *tie-rap 173mm |
293750009 |
US $6.70 |
||
