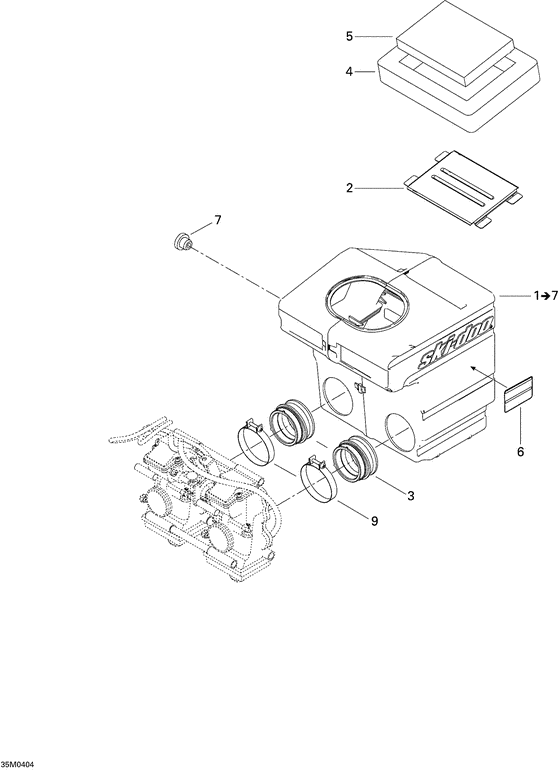

02- air intake system Diagram Bombardier Legend
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
413802900
Huile 2t 12x1 min+r* oil 2t 12x1 mineral
NOT SHOWN; |
413802900 |
— | ||
| replacement | |||||
|
|
293600117 Huile 2t 12x1 *oil 2t 12x1 mineralNOT SHOWN; |
293600117 |
US $15.64 |
||
|
|
413803000
Huile 2t 3x1g min+r* oil 2t 3x1g mineral
NOT SHOWN; |
413803000 |
— | ||
|
|
413803200
Huile 2t baril * oil 2t drum mineral
NOT SHOWN; |
413803200 |
— | ||
|
|
508000350
Silenc.adm.ass.*intake-air ass
600 / INCLUDES ITEMS 1 TO 7; |
508000350 |
— | ||
|
|
413711000
Huile xps synth*oil-xps synth.
NOT SHOWN; |
413711000 |
— | ||
| replacement | |||||
|
|
293600046
Huile 2t 3x1g synth *oil 2t 3x1g synth
NOT SHOWN; |
293600046 |
— | ||
|
|
413710700
Huile inj.2stro*oil-inj2stroke
NOT SHOWN; |
413710700 |
— | ||
| replacement | |||||
|
|
293600047
Huile 2t baril * oil 2t drum synth
NOT SHOWN; |
293600047 |
— | ||
|
|
293600045
Huile 2t 12x1 synth * oil 2t 12x1 synth
FORMULA XP-S-II / NOT SHOWN; |
293600045 |
— | ||
|
1
|
1
508000347
Silenc.adm.ass.*intake-air ass
700 / INCLUDES ITEMS 1 TO 7; |
508000347 |
— | ||
|
2
|
2
508000004 Grille adm. *grill-intake |
508000004 |
US $140.73 |
||
|
3
|
3
508000092 Adap.admission *adap-air intake |
508000092 |
US $19.33 |
||
|
4
|
4
508000099 Mousse ext. *foam-lower |
508000099 |
US $20.37 |
||
|
5
|
5
508000154 Filtre a air *filter-air |
508000154 |
US $20.37 |
||
|
6
|
6
516001191
Etiquette inst.*inst-label
|
516001191 |
— | ||
|
7
|
7
513032908 Passe-fils *grommet |
513032908 |
US $98.80 |
||
|
8
|
8
413803200
Huile 2t baril * oil 2t drum mineral
NOT SHOWN; |
413803200 |
— | ||
|
9
|
9
508000346 Clamp |
508000346 |
US $10.52 |
||
