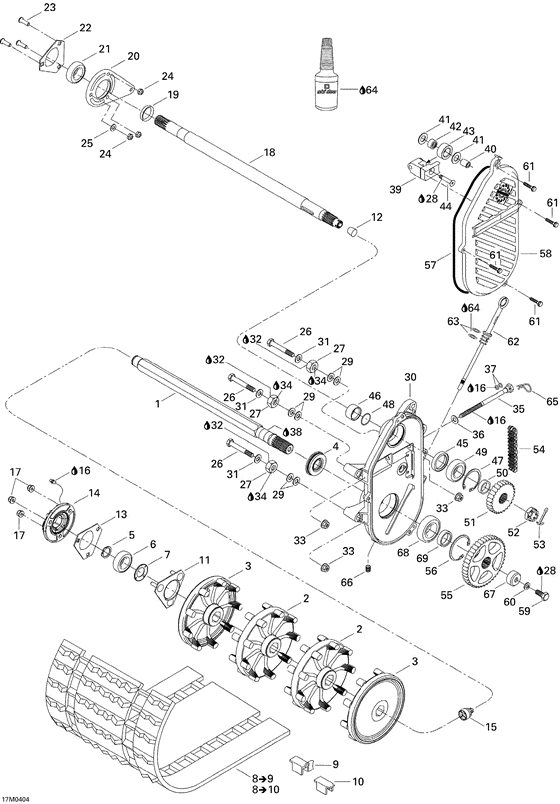

05- drive system Diagram Bombardier Legend
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
500003400
Agrafe de guide*cleat-guide
Legend Se GT, Legend Sport GT, Legend Sport Gt (Europe); |
500003400 |
— | ||
| replacement | |||||
|
|
504152410
Guide *clip
Legend Se GT, Legend Sport GT, Legend Sport Gt (Europe); |
504152410 |
— | ||
|
|
504139700 Roue dentee 24d*sprocket 24th24 TEETH / Legend Sport; |
504139700 |
US $122.37 |
||
|
|
504091000 Pignon 23d.larg*sprock.-23th l23 TEETH / Legend SE GT, Legend GT; |
504091000 |
US $48.93 |
||
|
|
504151857 Chaine large *chain-driv.l.74 LINKS / Legend SE GT, Legend Sport GT, Legend Sport 500 SS; |
504151857 |
US $182.75 |
||
|
|
504151935
Chenille *track-assy 15"x136"x.880
Includes 8 to 9 / Legend Se GT, Legend Sport GT; TRACK (15`` X 136`` X 0.88``); |
504151935 |
— | ||
| replacement | |||||
|
|
504152455 Chenille 15"x136"x0.88" *track-assyIncludes 8 to 9 / Legend Se GT, Legend Sport GT; TRACK (15`` X 136`` X 0.88``); |
504152455 |
US $856.77 |
||
|
|
504152028
Chenille *track-assy 15"x136"x1.250
Includes 8 to 9 / Legend Sport GT (Europe); TRACK (15`` X 136`` X 1.250``); |
504152028 |
— | ||
| replacement | |||||
|
|
504152488
Chenille *track-assy 15"x136"x1.250
Includes 8 to 9 / Legend Sport GT (Europe); TRACK (15`` X 136`` X 1.250``); |
504152488 |
— | ||
|
1
|
1
501027400 Arbre entr.pein*axle-drive paint |
501027400 |
US $308.01 |
||
|
2
|
2
504151781 Barbotin 9d *sprocket 9th |
504151781 |
US $67.29 |
||
|
3
|
3
504151782 Demi barbotin *half sprocket |
504151782 |
US $48.93 |
||
|
4
|
4
504151918 Anneau etanche *oil seal ass y |
504151918 |
US $24.40 |
||
|
5
|
5
371910200 Circlip *circlip |
371910200 |
US $10.65 |
||
|
6
|
6
504152009
Roulement bille*ball bearing
|
504152009 |
— | ||
| replacement | |||||
|
6
|
6
293350060 Roulement bille*ball bearing |
293350060 |
US $50.80 |
||
|
7
|
7
501017400 Prot.roulement *bearing protector |
501017400 |
US $9.13 |
||
|
8
|
8
504151802
Chenille *track-assy 15"x121"x0.88
Includes 8 to 10 / Legend SE, Legend Sport; TRACK (15`` X 121`` X 0.88``); |
504151802 |
— | ||
| replacement | |||||
|
8
|
8
504152446
Chenille 15"x121"x1.00" *track
Includes 8 to 10 / Legend SE, Legend Sport; TRACK (15`` X 121`` X 0.88``); |
504152446 |
— | ||
|
9
|
9
500003400
Agrafe de guide*cleat-guide
Legend SE, Legend Sport; |
500003400 |
— | ||
| replacement | |||||
|
9
|
9
504152410
Guide *clip
Legend SE, Legend Sport; |
504152410 |
— | ||
|
10
|
10
504151828
Agrafe *cleat
Legend SE, Legend Sport; |
504151828 |
— | ||
|
11
|
11
504151860 Logement roul. *housing-bear.weld. |
504151860 |
US $12.19 |
||
|
12
|
12
414784800 Bouchon liege *cork |
414784800 |
US $3.01 |
||
|
13
|
13
501025000 Flasque *flange |
501025000 |
US $5.07 |
||
|
14
|
14
504152173 Flasque ind.vit*flange-speed. |
504152173 |
US $84.03 |
||
|
15
|
15
504152040
Adaptateur magn*adaptor-magnetic
|
504152040 |
— | ||
|
16
|
16
219700417
Graise syntheti*grease-synthe.
|
219700417 |
— | ||
|
17
|
17
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
18
|
18
501026300 Arbre renvoi *shaft-counter |
501026300 |
US $568.11 |
||
|
19
|
19
504149100 Entretoise *spacer |
504149100 |
US $11.17 |
||
|
20
|
20
80044200
New Genuine Part
|
80044200 |
— | ||
|
21
|
21
504152026
Roulement bille*ball bearing
|
504152026 |
— | ||
| replacement | |||||
|
21
|
21
504152535
Roulement bille*ball bearing
|
504152535 |
— | ||
|
22
|
22
501025000 Flasque *flange |
501025000 |
US $5.07 |
||
|
23
|
23
205482546 Screw-socket bn.hd.iso.7380 |
205482546 |
US $10.65 |
||
|
24
|
24
232581414 Nut-stop elastic din.985 |
232581414 |
US $7.30 |
||
|
25
|
25
234081410 Washer-flat din.125a |
234081410 |
US $11.70 |
||
|
26
|
26
207108044 Screw-hex.cap iso.4017 |
207108044 |
US $7 |
||
|
27
|
27
504083800 Entretoise *spacer |
504083800 |
US $9.13 |
||
|
28
|
28
293800005 Loctite 271 *loctite-271 |
293800005 |
US $31.18 |
||
|
29
|
29
504073700 Rondelle *washer |
504073700 |
US $20.25 |
||
|
30
|
30
504152064
Carter chaine u*case-chain mach.
|
504152064 |
— | ||
|
31
|
31
503183800 Rondelle *washer |
503183800 |
US $42.30 |
||
|
32
|
32
293800070 Loct.anti grip.*loct-antiseize |
293800070 |
US $40.78 |
||
|
33
|
33
233201414 Nut-flange elastic din.6926 |
233201414 |
US $20.10 |
||
|
34
|
34
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
35
|
35
732601314 Vis de reglage *screw adjusting |
732601314 |
US $21.51 |
||
|
36
|
36
234001410 Washer-flat din.125a |
234001410 |
US $16 |
||
|
37
|
37
414484400 Joint torique *o-ring |
414484400 |
US $70.90 |
||
|
38
|
38
219700417
Graise syntheti*grease-synthe.
|
219700417 |
— | ||
|
39
|
39
504151951 Tendeur chaine *tensioner-chain mach. |
504151951 |
US $96.87 |
||
|
40
|
40
504080200 Entretoise *spacer |
504080200 |
US $11.17 |
||
|
41
|
41
504080300 Rondelle *washer |
504080300 |
US $60.70 |
||
|
42
|
42
405403000 Roul.aiguille *needle bearing |
405403000 |
US $25.45 |
||
|
43
|
43
414531300
Rouleau *roller
|
414531300 |
— | ||
|
44
|
44
732601144 Screw |
732601144 |
US $1.79 |
||
|
45
|
45
415049300 Joint etanche *oil seal |
415049300 |
US $14.25 |
||
|
46
|
46
507031500 Entretoise *spacer |
507031500 |
US $13.21 |
||
|
47
|
47
371901700 Circlip int. *circlip-int. |
371901700 |
US $58.30 |
||
|
48
|
48
414876700 Joint torique *o-ring |
414876700 |
US $11.06 |
||
|
49
|
49
504152006
Roulement bille*ball bearing
|
504152006 |
— | ||
| replacement | |||||
|
49
|
49
293350115 ROULEMENT BILLE*BALL BEARING |
293350115 |
US $12.85 |
||
|
50
|
50
504147200 Cale epaisseur *shim |
504147200 |
US $30.57 |
||
|
51
|
51
504084300 Roue dentee 25d*sprocket 25th25 TEETH / Legend SE; |
504084300 |
US $91.77 |
||
|
52
|
52
250000012 Nut-hex.castle m20 x 1.5 |
250000012 |
US $7 |
||
|
53
|
53
371006300 Goupille fendue*pin-cotter |
371006300 |
US $7.10 |
||
|
54
|
54
504151856 Chaine large *chain-driv.l.76 LINKS / Legend SE, Legend Sport 700; |
504151856 |
US $127.45 |
||
|
55
|
55
504148500 Roue dentee 43d*sprocket 43th |
504148500 |
US $146.85 |
||
|
56
|
56
415064300 Circlip int. *circlip-int. |
415064300 |
US $4.98 |
||
|
57
|
57
415046400 Joint torique *o-ring |
415046400 |
US $8.13 |
||
|
58
|
58
504152027
Couvercle moule*cover-casting
|
504152027 |
— | ||
| replacement | |||||
|
58
|
58
504152471 Couvercle moule*cover-casting |
504152471 |
US $183.57 |
||
|
59
|
59
207102544 Screw-hex.cap iso.4017 |
207102544 |
US $17.50 |
||
|
60
|
60
234100602 Washer-lock spring din.128a-a2 |
234100602 |
US $19.60 |
||
|
61
|
61
210263080 Screw-forming hex.hd.fl.gm6174m |
210263080 |
US $19.60 |
||
|
62
|
62
504151703 Bouchon remp.as*cap-filler assy. |
504151703 |
US $14.25 |
||
|
63
|
63
414969400 Joint torique *o-ring |
414969400 |
US $81.30 |
||
|
64
|
64
413803300
Huile chaine *oil-chain
|
413803300 |
— | ||
|
65
|
65
414575600 Goup.surete *pin-hair |
414575600 |
US $12.85 |
||
|
66
|
66
504151921 Plug 1/8-27 n.p.t. 3/4 taper |
504151921 |
US $5.61 |
||
|
67
|
67
504152104 Capuchon *cap |
504152104 |
US $13.21 |
||
|
68
|
68
504152005 Roulement bille*ball bearing |
504152005 |
US $41.77 |
||
|
69
|
69
504152058
Cale epaisseur *shim
|
504152058 |
— | ||
| replacement | |||||
|
69
|
69
504152649 Cale epaisseur *shim |
504152649 |
US $21.39 |
||
